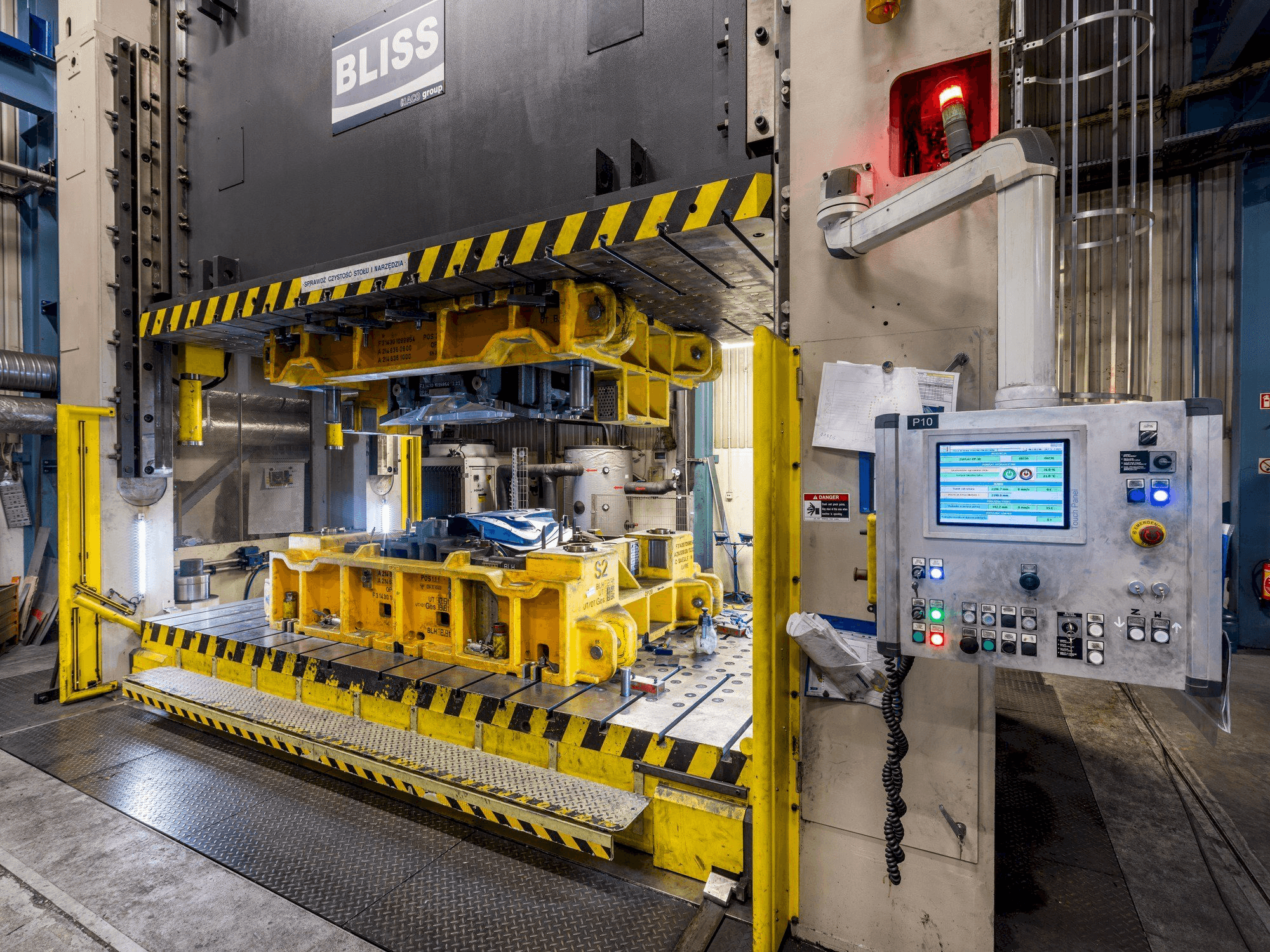

BLISS-BRET - PHD 1500PL-OTH-BLI-2017-00001

Machine Benefits

Qualitative Machine Benefits

• Number of slots for cushion pins: 308 pcs ,average cushion pins: 50 mm
• Adjustable speed down: 0 to 60 mm/s , adjustable speed up 0 to 60 mm/s
• Cushion strength: 5000 kn ,cushion stroke: 300 mm ,cushion area stroke: 4350 x 1850 mm
• Pin spacing: 150x150 mm
• Number of slots for cushion pins: 308 pcs ,average cushion pins: 50 mm
• Hydraulic drive for maintaining parallelism
• Slider/bottom + vibration damping slider / table parallelism function yes
• Vibration damping function during detection yes
• Parallelism cylinders on press bed 4 x 2250 kn, stroke of parallelism cylinders 150
• Movable table plate

Technical Machine Benefits

• Maximum slide stroke: 1400 mm
• Master cylinders 2: (570/545 mm)
• Maximum distance slider from table: 2200 mm ,minimum distance slider from table: 800 mm
• Front distance between columns: 5250 mm
• Lateral distance between columns: 1500 mm lateral distance between piston rods: 1150 mm
• Slider plate dimensions (left / right x front /back): 5000 x 2500 mm
• Slide approach speed: 350 mm/s ,adjustable working speed: 0 to 24 mm/s
• Maximum working speed at 1500t 11. 7 mm/s return speed: 250 mm/s
• Cushion strength: 5000 kn ,cushion stroke: 300 mm, cushion area stroke: 4350 x 1850 mm
• Pin spacing: 150x150 mm
