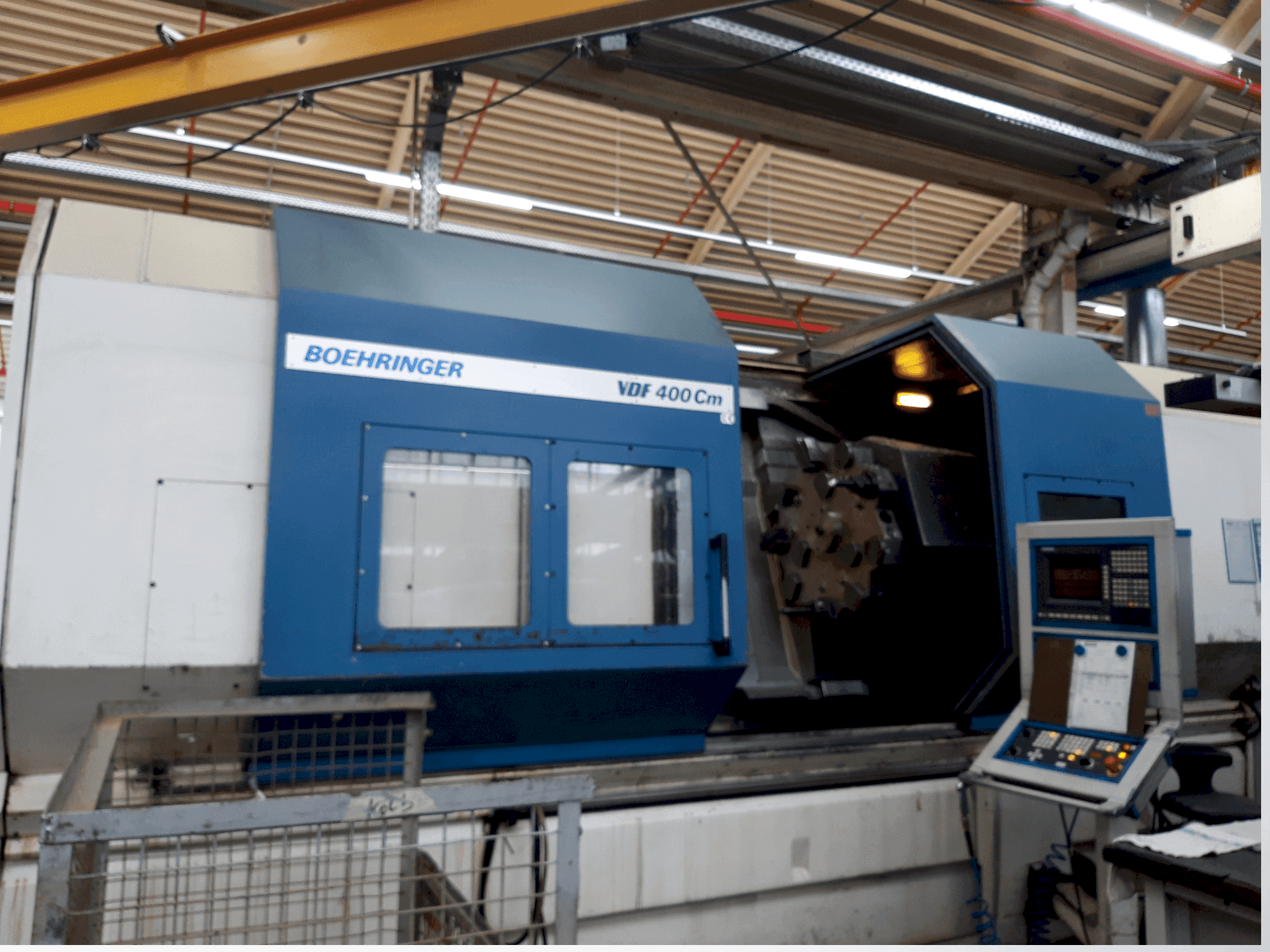

This Lathes was manufactured in 1998. The BOEHRINGER VDF 400 CM features a Siemens Sinumerik 840 C control, a spindle bore of 132 mm, and a maximum turning diameter of 700 mm. It includes a high-capacity coolant system and an integrated chip conveyor for efficient operation. Ideal for those looking to buy this BOEHRINGER VDF 400 CM Lathes. Contact us for more information.
Resumen
- marca: BOEHRINGER
- año: 1998
- MODELO: VDF 400 CM
- tipo de aplicación: Torneado
- Ubicación: Alemania
- tipo de máquina: Tornos horizontales
- Marca de unidad de control: SIEMENS
Información técnica - BOEHRINGER VDF 400 CM
Unidad de Control
- Marca del control: SIEMENS
- Modelo del control: Sinumerik 840 C
Dimensiones
- Profundidad de la máquina: 5365 mm
- Altura de la máquina: 2855 mm
- Peso de la máquina: 23000 kg
Especificación Técnica
- Potencia del husillo: 65 kW
- Velocidad del husillo: 2000 RPM
Información adicional
Additional equipment
- Chip conveyor: integrated longitudinally with a discharge height of 1250 mm
- Coolant device: large capacity tank (min. 340 l), high delivery rate (40 l/min at 1 bar)
- the chuck is included in the accessories, it is a Röhm KFD-AF 500/3 chuck.
- C axle available
Machine Benefits
Qualitative Machine Benefits
- Simple maintenance and installation of chip conveyor
- High coolant delivery rate supports modern cutting and drilling tools
- The machine has a functioning and stable steady rest
Technical Machine Benefits
- High feed force
- Dynamic ac servo motor per axis
- Collision protection for drive elements
- Programmable coolant supply for each tool
- Turning length in mm 2000.
- Swing diameter above the bed in mm 750.
- Traverse path of the bed slide 2224.
- Turning length of 2000 mm.
Extra Information
Steady rest: Originally installed but removed due to defectiveness. Tailstock: Included with a quill outer diameter of 130 mm and stroke of 120 mm. Hydraulic unit: Central unit for various machine functions with variable clamping pressure adjustment. Feed drive: Features high dynamics and protection class IP 64. Main spindle head: DIN 55026-A15.
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
