Citizen - A32VIIPLDE-TUR-CIT-2011-00001
¿Tiene más preguntas? ¡Contáctenos!
José María García
+34 601 158 008
j.garcia@gindumac.com
- GINDUMAC
- Productos
- Máquinas herramienta
- ➤ Used Citizen A32VIIPL For Sale | gindumac.com

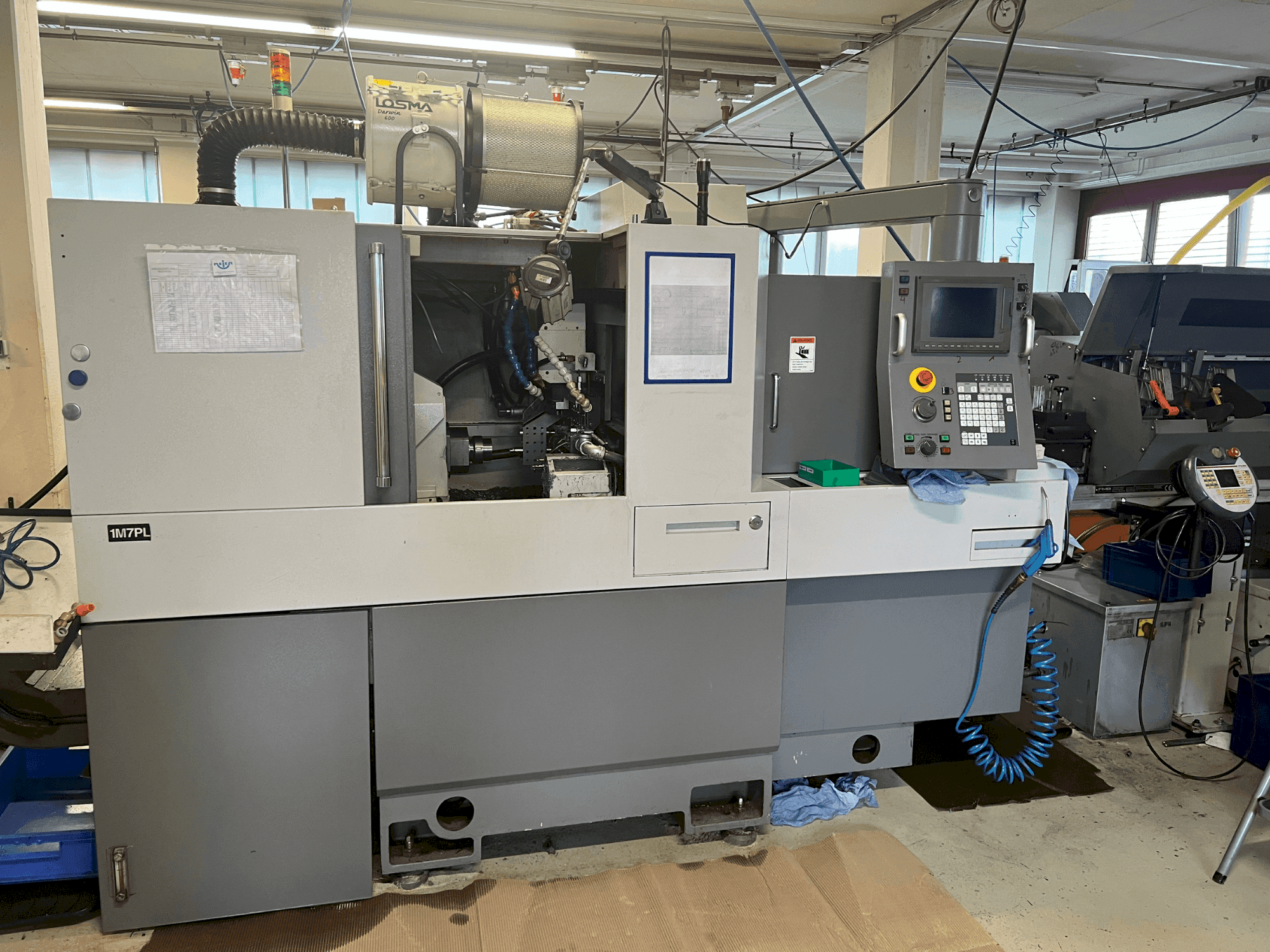

This 3-axis Citizen A32VIIPL swiss type turning machine was manufactured in 2011. It features a FMB turbo 3-36 / 3200 C turbo bar feeder, a maximum machining diameter of 32 mm, and a spindle through-hole diameter of 36 mm. The machine offers high-speed operations with main and back spindle speeds up to 8,000 min, both featuring stepless speed changes and C-axis control for precise indexing. If you are looking to get high-quality turning capabilities, consider the Citizen A32VIIPL machine we have for sale. Contact us for more information.
Resumen
- marca: Citizen
- año: 2011
- MODELO: A32VIIPL
- tipo de aplicación: Torneado
- Ubicación: Alemania
- tipo de máquina: Torno de tipo suizo
Información técnica - Citizen A32VIIPL
Recorrido
- Número de ejes: 3
Información adicional
Machine Benefits
Technical Machine Benefits
- Includes a fmb turbo 3-36 / 3200 c turbo bar feeder
- Maximum drilling diameter: 10 mm
- Maximum tapping diameter: m8
- Maximum shank diameter of tool mounted on rotary tool holder (drill and end mill): 10 mm
- Tool size: tool bit: 16 × 16 × 140 mm sleeve: 25. 4 mm
Extra Information
Rapid federate: X1 axis: 32 m/min Y1 axis: 45 m/min Z1 axis: 45 m/min X2 axis: 45 m/min Z2 axis: 45 m/min Least input increment: X1 axis (diameter): 0.001 mm Y1 axis (diameter): 0.001 mm Z1 axis: 0.001 mm X2 axis (diameter): 0.001 mm Z2 axis: 0.001 mm Axis stroke: X1 axis: 110 mm Y1 axis: 400 mm Z1 axis: 325 mm X2 axis: 370 mm Z2 axis: 290 mm Workpiece Maximum machining diameter: 32 mm Maximum machining length: 320 mm Maximum front drilling diameter: 12 mm Maximum front tapping diameter: M12 (Tap), M10 (Die) Spindle through-hole diameters: 36 mm Maximum chucking diameter of back spindle: 32 mm Maximum front protrusion length of back-machined workpiece: 150 mm Maximum external workpiece length of back spindle: 65 mm Back machining maximum drilling diameter: 10 mm Back machining maximum tapping diameter: M10 Table Bar length: 2500 mm Center height: 1050 mm Turret Number of tools to be mounted: 15 Lathing tool: 6 Cross drilling tool: 4 Front drilling tool: 4 Back drilling tool: 5
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
