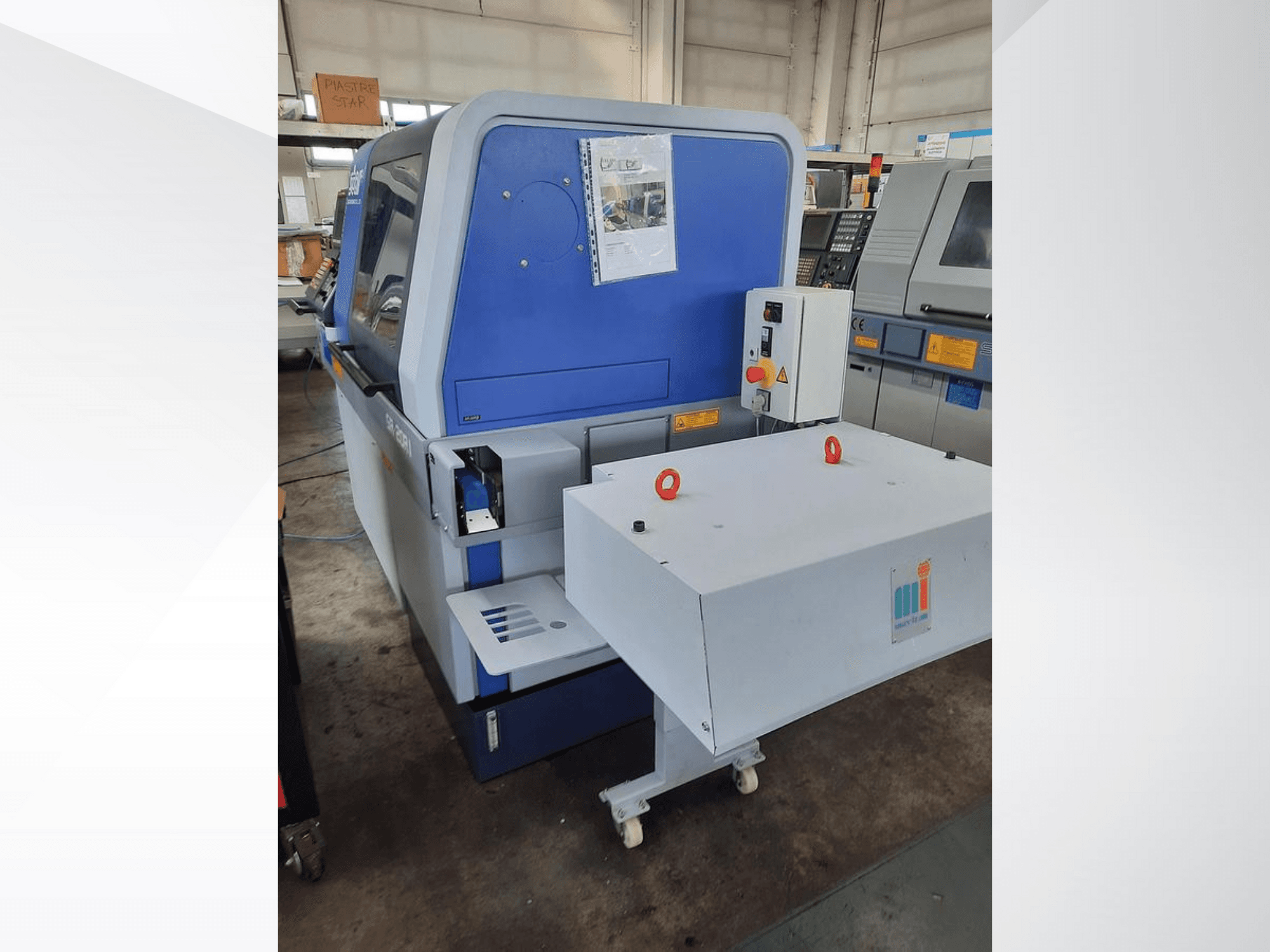

Star - SR 20 R IIIIT-TUR-STA-1996-00001

Max movable tailstock travel: 205 mm

Max turning diameter: 20 mm

Max workpiece diameter for gripping/pass-through: Ø 20 mm

Max workpiece length with front ejection: 80 mm

Coolant tank capacity: 170 L

Coolant level control: Standard

Fixed turning tool stations: 6

Radial driven tool stations: 5

Fixed drilling/tapping stations: 4

Fixed tooling: M8 × 1.25

Rotating tooling on comb slide: M6 × 1

End mill on comb slide: Ø 10 mm

Standard tool shank: 12 mm

Max speed driven tools: 8000 RPM

Max power driven tools: 1.2 kW

Max collet diameter (ER): Ø 10 mm

Max drilling capacity (C45 steel): Ø 8 mm

Max tapping capacity (C45 steel): M8 × 1.25

Additional ER16 collet: Ø 10 mm

Max drilling depth: 100 mm

Spindle bore: Ø 20 mm

Spindle speed: 500–8000 RPM

Spindle power: 2.2 / 1.5 kW

Rapid feed linear axes: 35 m/min

Rapid feed C-axis: 198000 °/min

Max cutting feed linear axes: 10 m/min

Max cutting feed C-axis: 10000 °/min

Coolant tank capacity: 170 L

Collet: Neukomm art. 22.001

Chuck: F25 art. 64

Number of axes: 3 (X/Z + C rotation)

Total installed power: 10 kVA
