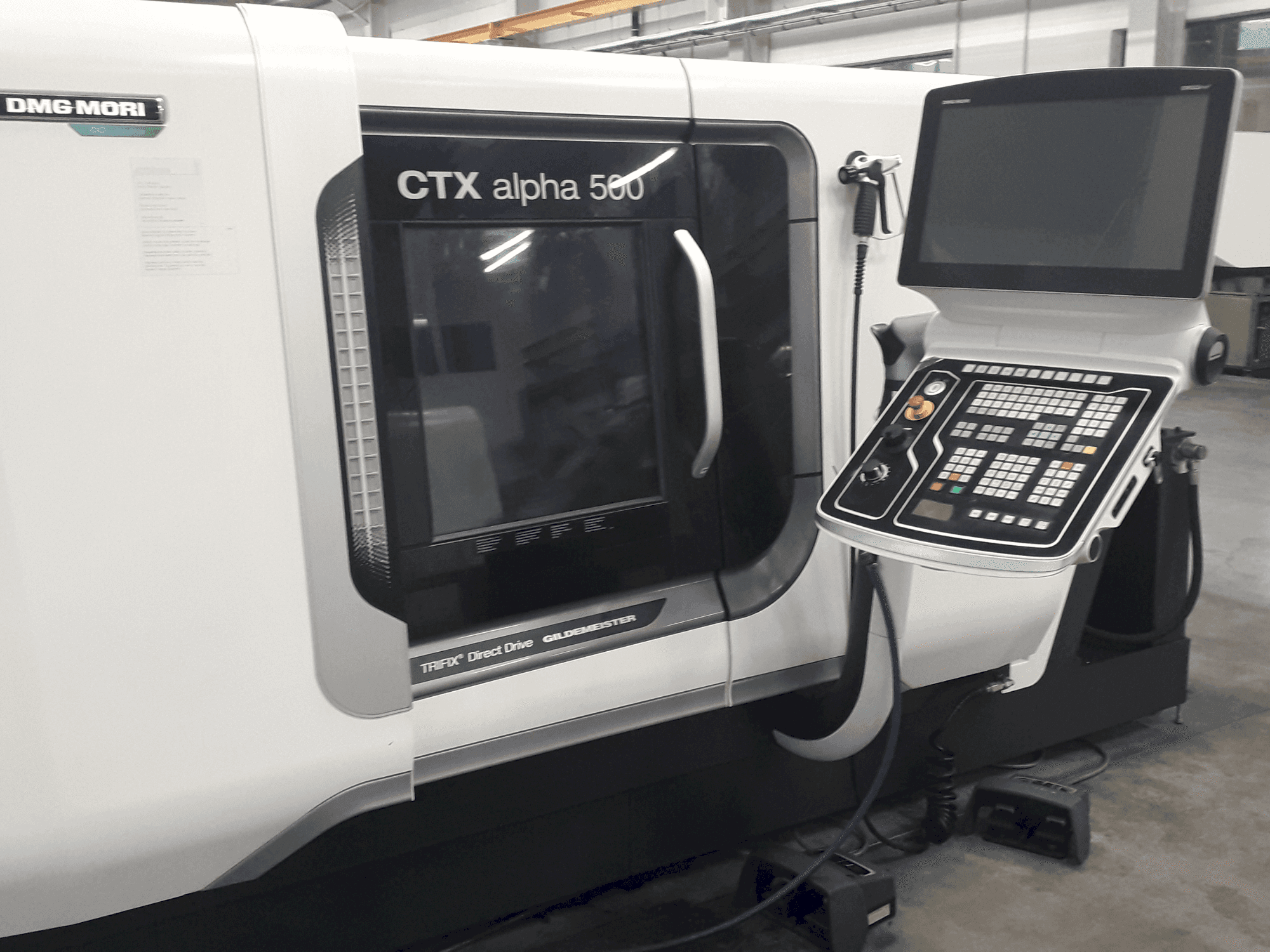

DMG MORI - CTX Alpha 500 V6HU-TUR-DMG-2021-00002

Additional equipment

• CELOS Products
• DMG MORI Service Agent
• DMG MORI NetService
• DMG MORI IoT Connector
• DMG MORI Messenger V2 SERVICE Camera
• Tail Stock
• the 2 SMW-Autoblok BBD17/52 which can also be seen on the machine chuck.
• and the addition of the software (tccentric turning and milling cycle, as well as a deburring toothing cycle).

Machine Benefits

Technical Machine Benefits

• Hydraulic cylinder with Ø52 mm through-hole
• 12-position sauter turret
• Vdi 30 tool mounting (din 69880-30)
• Live tool interface (din 5480 standard)
• Direct measuring scale on the x-axis
• Tool system for turret: trifix® system (din 69880, vdi 3425, din 5480)
• Y-axis: ±40 mm travel

Extra Information

Main Spindle Chuck SMW-Autoblok BBD 170/52 Counter Spindle Chuck SMW-Autoblok BBD 175/52 Counter Spindle Option Programmable tailstock force: Adjustable between 80-300 daN Media Coolant filtration: Dual-cartridge filter (50 μm) Coolant cleaning: External flushing system for spindles Coolant tank with 6-bar pump Automation Bar machining package: Fully hydraulic cylinder Ø52 mm Workpiece catcher with conveyor for parts Ø51 × 185 mm (max 3 kg) 4-color operating mode signal light Bar loader interface compatible with IEMCA, Breuning IRCO, LNS
