DMG MORI - Gildemeister CTX 1250 TCKR-TUR-DMG-2012-00002

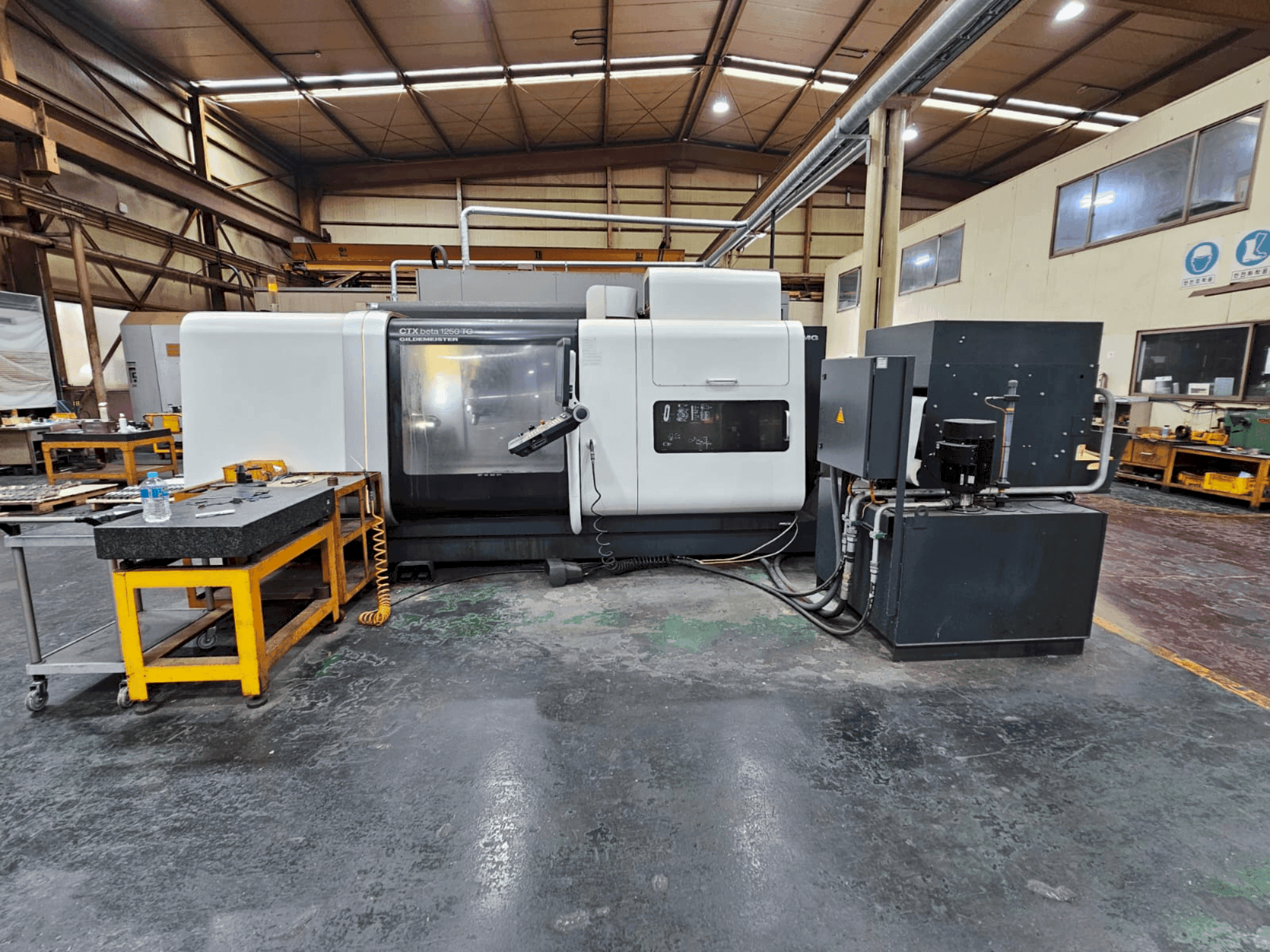

Name: DMG MORI Gildemeister CTX 1250 TC
Brand: DMG MORI
SKU: KR-TUR-DMG-2012-00002
Price: 3190900 MXN
Availability: InStock

MXN 3,190,900

Precio GINDUMAC

(Ex works)

Obten un presupuesto oficial

Visita la máquina

haz una contraoferta

Descargar PDF

¿Tiene más preguntas? ¡Contáctenos!

José María García

+34 601 158 008

j.garcia@gindumac.com

Contacta por Whatsapp

GINDUMAC
Productos
Máquinas herramienta
➤ Used DMG MORI Gildemeister CTX 1250 TC | Turn-Mill

Mostrar en idioma original

This 5-axis DMG MORI Gildemeister CTX 1250 TC was manufactured in 2012, featuring a turning length of 1250 mm and a main spindle speed up to 5000 min⁻¹. It includes a Y-axis travel of 100 mm, B-axis ±110°, and a tool magazine with 24 positions. Ideal for complex machining tasks, it also comes equipped with a Siemens SINUMERIK 840D control system. If you are looking to get high-quality turn-mill capabilities, consider the DMG MORI Gildemeister CTX 1250 TC machine we have for sale. Contact us for more information.

Resumen

marca: DMG MORI
año: 2012
MODELO: Gildemeister CTX 1250 TC
tipo de aplicación: Torneado
Ubicación: Corea del Sur
tipo de máquina: Centro de torneado y fresado
Marca de unidad de control: SIEMENS

Información técnica - DMG MORI Gildemeister CTX 1250 TC

Unidad de Control

Marca del control: SIEMENS
Modelo del control: Sinumerik 840D Ergoline

Recorrido

Número de ejes: 4

Información adicional

Additional equipment

Coolant pump 6 bar, 201 l/min
Chuck rinsing device outside at main spindle
Coolant equipment external on turning/milling spindle
Hinged type chip conveyor, discharge height 1200 mm
Cooling system for spindle motor, turning/milling spindle, and B-axis torque motor
Connection for oil mist extractor
Machine prepared for workpiece handling robot WH3 (front loading)
Environmental packages for unstable supply and increased ambient temperature

Machine Benefits

Qualitative Machine Benefits

In-process measuring device and tool pre-setting probe with laser measuring device
High flexibility with excentric turning and tooth system milling capabilities
Frequency 60 hz (optional)
Additional machine documentation on cd-rom

Technical Machine Benefits

Operating system: windows
Control options include shopturn or heidenhain plus it with ergoline use interface, ethernet interface
Integrated spindle motor ism 76
Ac main drive rating: 25/34 kw (33. 51/45. 57 hp)
Y-axis travel: 100 mm
B-axis ±110° with pneumatic locking
Tool acceptance: hsk-63a (din 69893)
Tool magazine: disc type with 24 positions; optional 48-fold chain magazine with double gripper, max tool dia. 80 mm, max length 300 mm, max weight 8 kg
Automatic tailstock, hydraulic positionable, including rotary centre rest
5-axis simultaneous machining capability

Extra Information

Machine still under power
