DOOSAN - LYNX 2100LSYAGR-TUR-DOO-2020-00002
¿Tiene más preguntas? ¡Contáctenos!
José María García
+34 601 158 008
j.garcia@gindumac.com
- GINDUMAC
- Productos
- Máquinas herramienta
- Used DOOSAN Lynx 2100LSYA - 2020 - Lathe for sale | gindumac.com

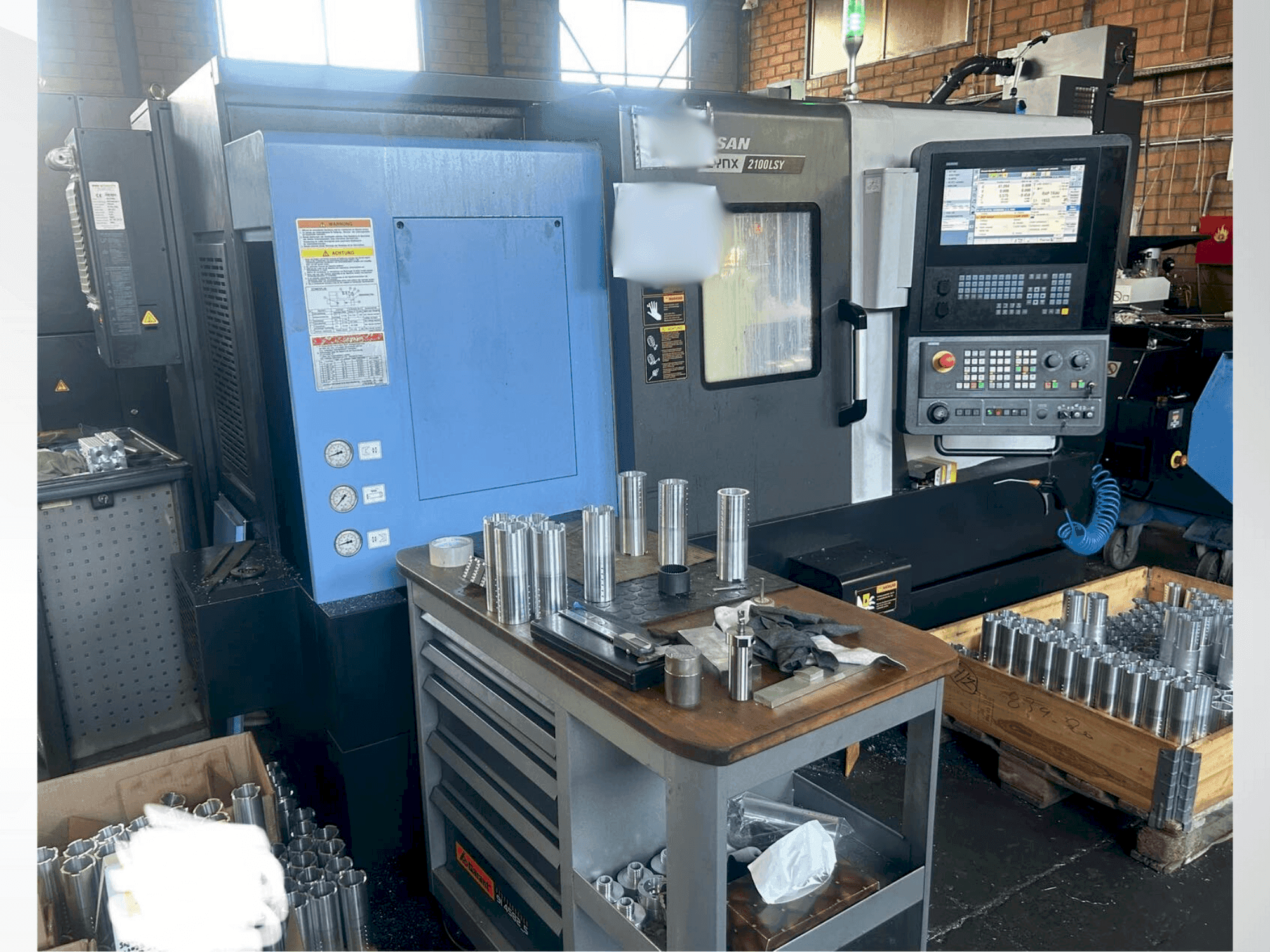

This 5-axis DOOSAN Lynx 2100LSYA lathe was manufactured in 2020. Featuring a SIEMENS SINUMERIK 828D control, it offers spindle speeds up to 6000 rpm and includes a sub-spindle for versatile operations. With a max turning diameter of 300 mm and length of 510 mm, it also has driven tools and rapid traverse rates up to 36 m/min. Consider this Doosan Lynx 2100LSYA lathe, ideal for advanced turning tasks. For more information, please reach out to us.
Resumen
- marca: DOOSAN
- año: 2020
- MODELO: LYNX 2100LSYA
- tipo de aplicación: Torneado
- Ubicación: Grecia
- tipo de máquina: Centro de torneado y fresado
- Marca de unidad de control: SIEMENS
Información técnica - DOOSAN LYNX 2100LSYA
Unidad de Control
- Marca del control: SIEMENS
- Modelo del control: SINUMERIK 828D
Recorrido
- Recorrido eje X: 205 mm
- Recorrido eje Y: 105 mm
- Recorrido eje Z: 560 mm
Especificación Técnica
- Velocidad del husillo: 6000 RPM
Información adicional
Additional equipment
- OD and face tool holder of main spindle// Double OD and face tool holder of main and sub spindle
- ID tool holder of main spindle// Double ID tool holder of sub spindle
- Triple ID tool holder
- U-Drill cap of Main and sub spindle
- Straight (short) milling tool unit
- Anglular an Anglular (offset) milling tool unit
- Boring tool sleeves of main and sub spindle// U-drill sleeves
- Milling adapters
- SERVO 24ST turret (mechanism/station)
- BMT-45P 20/32 mm Holder mounting type tool size (turning/boring)
Machine Benefits
Qualitative Machine Benefits
- Dvanced control system ensures high precision and operational efficiency.
Technical Machine Benefits
- Maximum turning diameter: 300 mm
- Maximum turning length: 510 mm
- Sub-spindle
- Driven tools
- Counter spindle
- High-speed operations with multiple spindle configurations.
- Chucks of the main spindle has hard jaws and that of sub spindle has a set of soft jaws.
- Machine is also equiped with an extra module from siemens for in process tool measuring cycles for tool breakage detection.
Extra Information
Machine still under power
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
