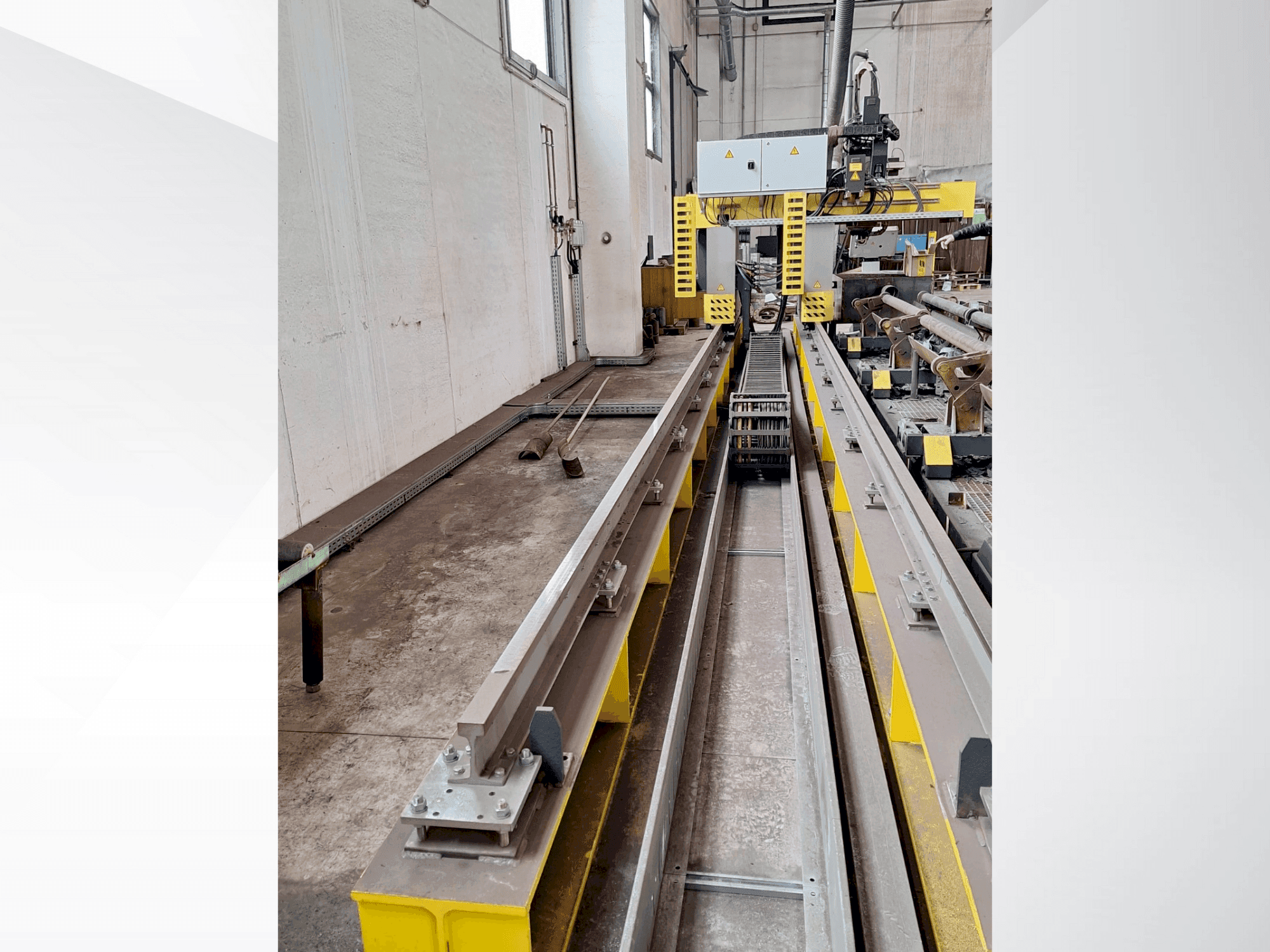

This plasma cutting machine was manufactured in 2020. It features a robust ESAB iSeries300 plasma generator with a 300A output and a VBA WRIST bevel cutting unit capable of intricate bevel and tilt cuts. The ESAB VISION T5 CNC enhances usability with its 18.5" touch screen. Ideal for handling tube lengths up to 8000 mm and diameters from 100 mm to 750 mm. Consider the opportunity to buy this ESAB SUPRAREX 3100 plasma cutting machine. Contact us for more information.
Resumen
- marca: ESAB
- año: 2020
- MODELO: SUPRAREX 3100
- tipo de aplicación: Corte
- Ubicación: Italia
- tipo de máquina: Cortadora plasma
- Marca de unidad de control: ESAB
Información técnica - ESAB SUPRAREX 3100
Unidad de Control
- Marca del control: ESAB
- Modelo del control: VISION T5 CNC
Información adicional
Additional equipment
- Cutting with Bevel and V and Y Bevels
- X-axis with a guide length of 11,000 mm and dual motorization
- 1 synchronized axis spindle for tube cutting1 synchronized axis spindle for tube cutting
- 3 tube support carriages manually positioned via trapezoidal screw
- 1 carriage for the ESAB iSeries300 plasma generator with a maximum power of 300A
- 1 VBA WRIST bevel cutting unit
- Plasma torch collision protection system
- Torch height control with arc voltage and touch sensor for bevel cuts
- 1 safety system made with photocells
- 1 ESAB PIPE CUTTING programming software
Machine Benefits
Qualitative Machine Benefits
- Iseries300i plasma generator features:rated current output: 300a
- Current adjustment range: 5/300a
- Supplied voltage: 180v
- Power supply: 380v 50/60hz
- Duty cycle at 40°c: 100%
- Esab vision t5 cnc with an 18. 5" color touch screen monitor (glove-friendly), including the opwizard application
Technical Machine Benefits
- Maximum tube length: 8000 mm
- Tube diameter: 100 mm - 750 mm
- Tube thickness: 3 mm - 20 mm
- Cutting with bevel and v and y bevels
- Flat cutting table equipped with slats, dimensions 1,500 x 1,000 mm
- Manuals and ce certification
- Tangential control during cutting
- Ability to create v or y grooves
- Plasma gas options: air/o2/ar-h2/n
- Shielding gas options: air/n2/o2/h2o
Extra Information
Machine still under power
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
