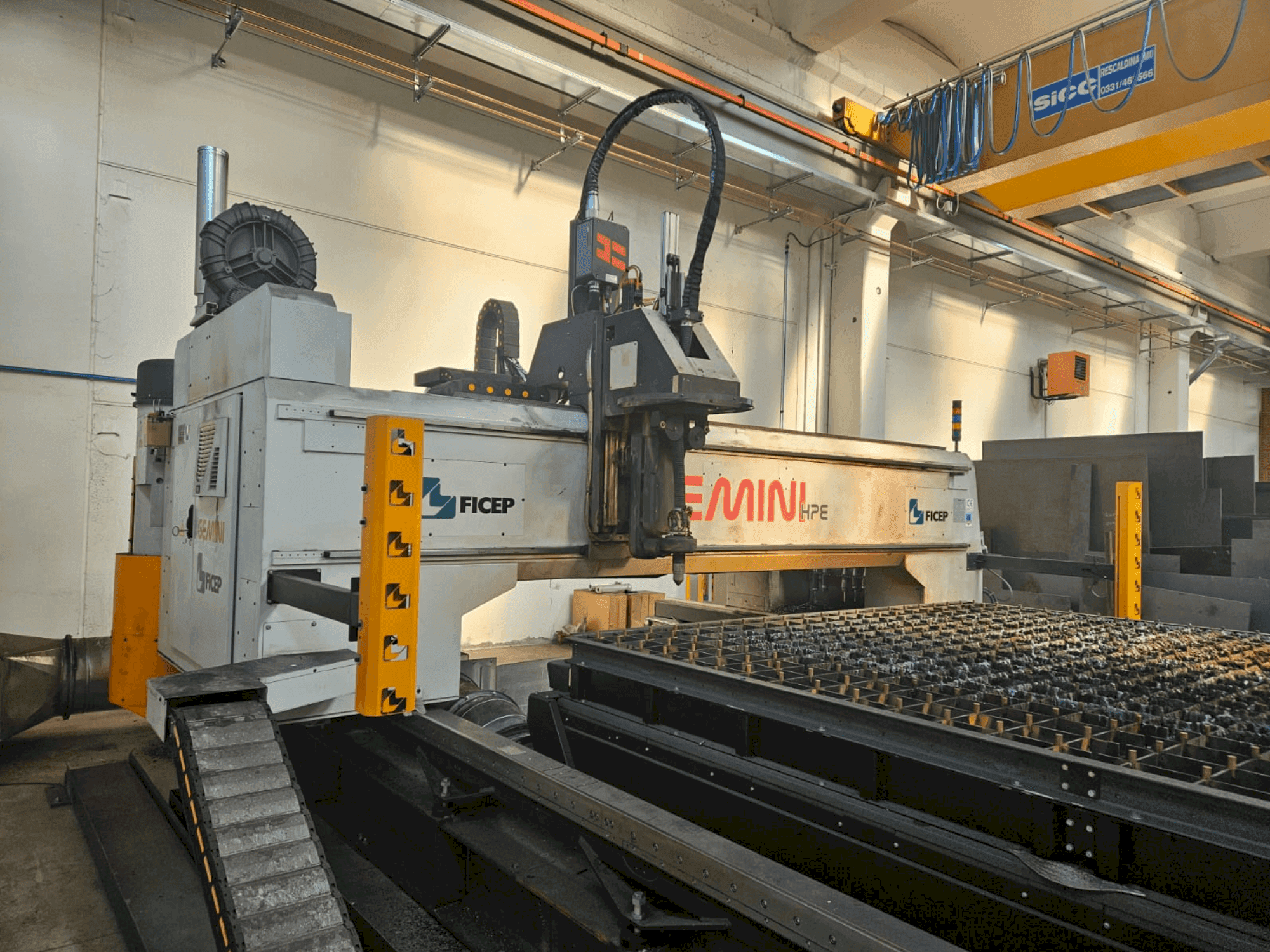

FICEP - GEMINI G32 HPEIT-OTH-FIC-2020-00001

Machine Benefits

Technical Machine Benefits

• Input sheet specifications: max. Length: 15000 mm / min. Length: 1250 mm / max. Width: 3100 mm / min. Width: 800 mm / output workpiece specifications: min. Length: 100 mm / min. Width: 100 mm
• Vertical drilling head: 1 / spindle for vertical head: 1/ max. Drilling diameter: 40 mm / max. Milling diameter: 250 mm / min. Sheet thickness: 5 mm / max. Drilling thickness: n 5000
• Spindle installed power (s3): 15 kw / spindle speed (programmable, continuously variable): 250 – 7000 rpm / max. Longitudinal travel speed (x-axis): 32 m/min / max. Transverse positioning speed (y-axis): 32 m/min / max. Auxiliary axis positioning speed (u-axis): 42 m/min / working table height: 650 mm
• Motorized torch carriages: 1 / plasma cutting unit: 1 / oxy-fuel torches (optional): 3 / max. Sheet thickness with xpr300 plasma: piercing cut during production: 45 mm / edge-start cut: 80 mm / 45° bevel cut (piercing, production): 32 mm / 45° bevel cut (edge-start): 56 mm / max. Sheet thickness with optional oxy-fuel: 1st torch: 100 mm / 2nd torch: 100 mm / 3rd torch: 75 mm
