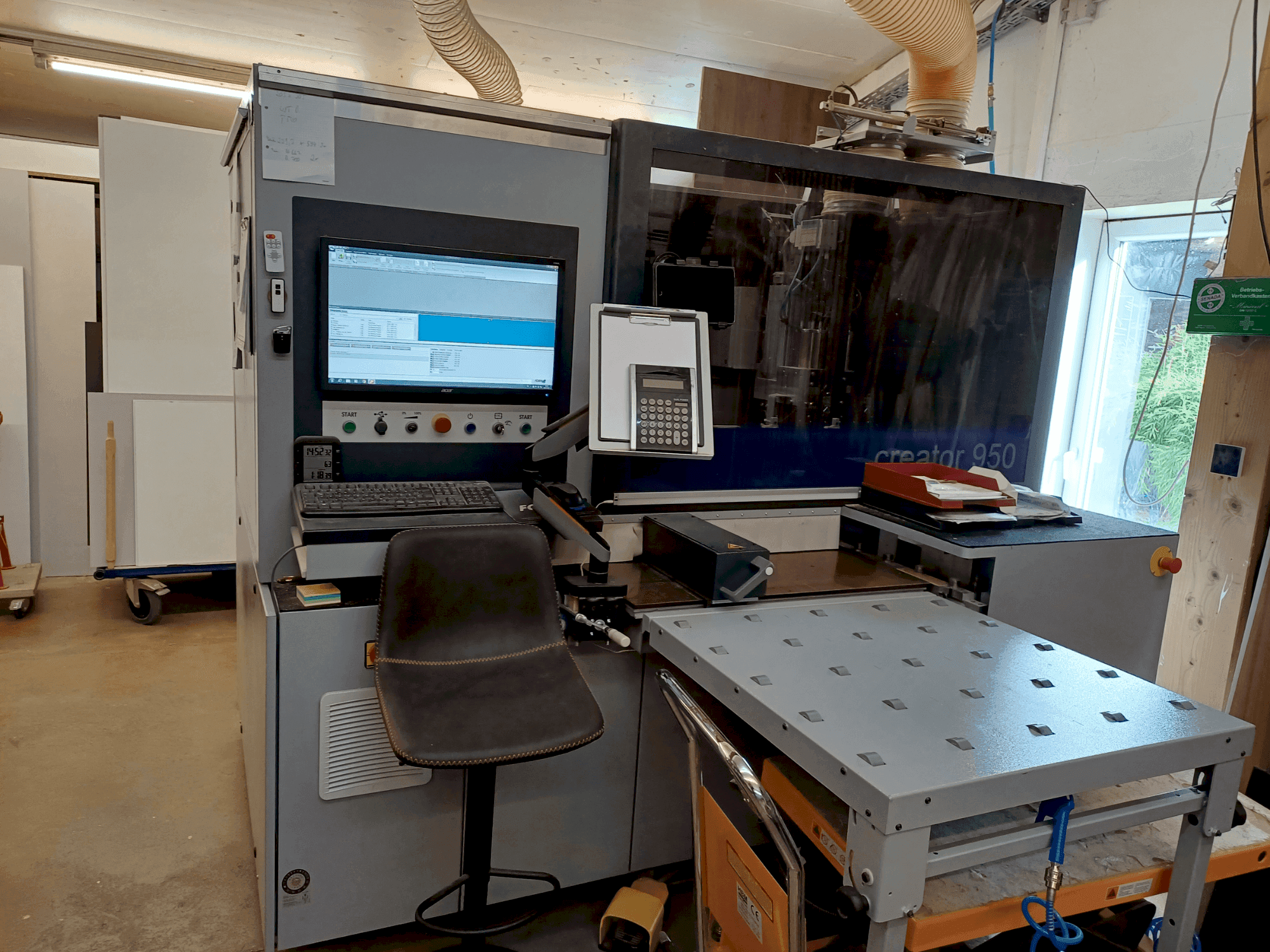

FORMAT4 - CNC CREATOR 950DE-MIL-FOR-2019-00001

Additional equipment

• Electric creator 950 Advanced 3x400 V 50Hz / 60Hz.
• 4-fold linear changer for milling tools and units. Max tool diameter: 120 mm, Max tool length: 100 mm.
• Folding roller table (front + rear) for processing large workpieces.
• Second stop cylinder for workpieces larger than X: 1400 mm for easier handling of larger workpieces.

Machine Benefits

Technical Machine Benefits

• Cnc throughfeed center with clamp drive in x-direction and fixed portal design in y-direction.
• Machine frame made of thick-walled, electro-welded shaped tubes with steel ribbing for high stability.
• Working field: x: 3500 mm y: 950 mm z: 80 mm
• Ceramic bearing with automatic height-adjustable suction hood
• Drill head dh 17 6h 1s: 11 vertical spindles, 6 horizontal spindles, 1 grooving saw in x direction
• Support table made of phenolic resin with a support of x: 1200 mm, y: 950 mm (front + rear).
• Short changeover times with sufficient space for tools.
• Simplified handling of larger workpieces.

Extra Information

Machine still under power
