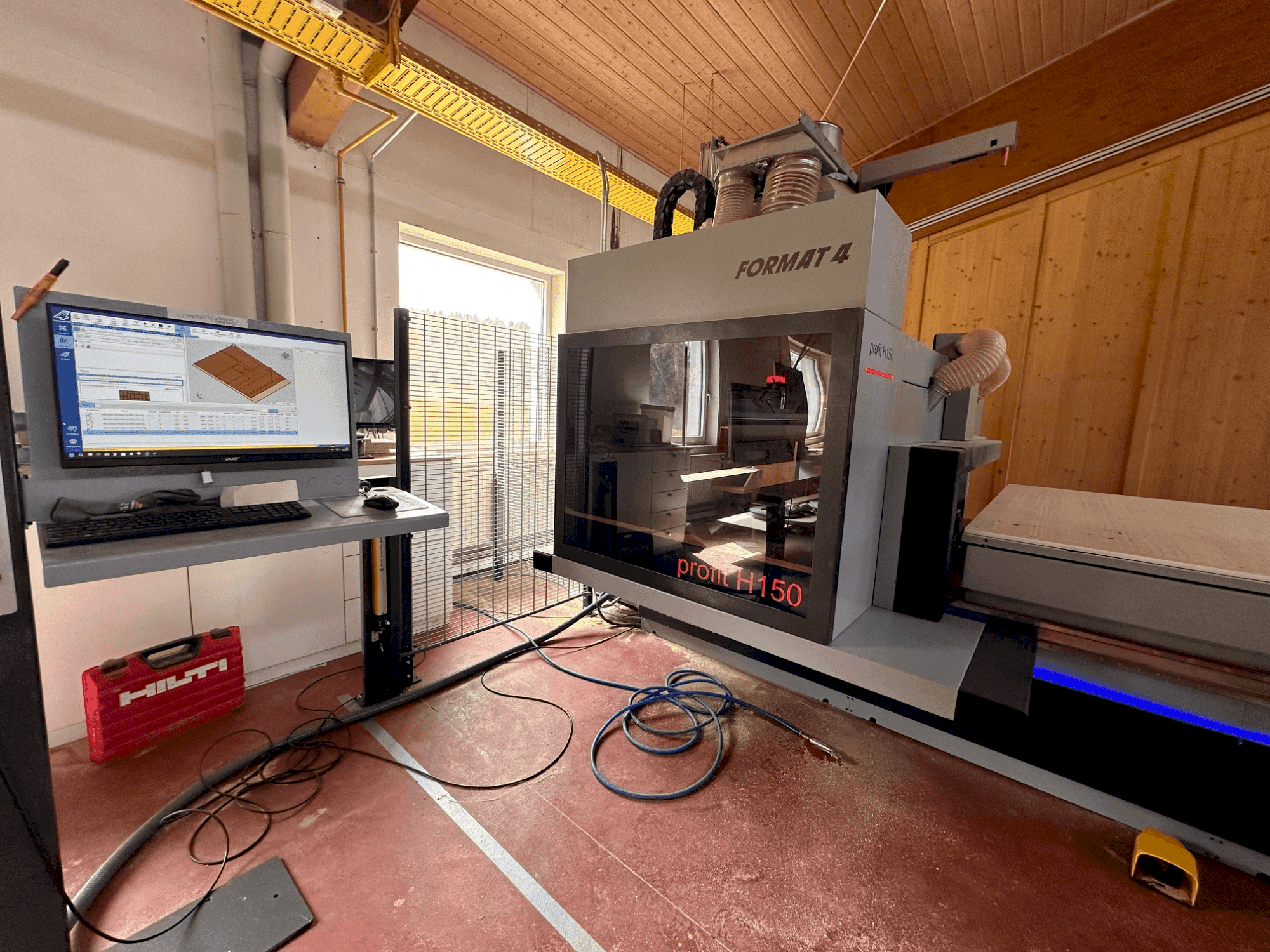

FORMAT4 - Profit H150 22.32 TDE-MIL-FOR-2023-00001

Additional equipment

• Automatic central lubrication: Yes
• Control cabinet with new main computer: Yes // Control terminal with keyboard and mouse: Yes
• Handheld terminal for remote control: Yes
• Vacuum system: 1060 square meters (oversized)
• Safety device with light barrier and bumper: Yes
• Drilling head: 12 vertical drilling spindles
• Controlled central extraction connection: Yes
• Machine control: "F4Operate", "F4Tollbox", "F4Create"
• 3D nesting software: F4Nest
• Powerful machine PC: Yes

Machine Benefits

Qualitative Machine Benefits

• High precision with built-in 3d nesting software, efficient operation with automatic central lubrication and tool length measuring systems
• Optional: vacuum crane for one-man loading of the 5-axis cnc
• Schmalz company, jib 6 meters, suction load 250 kg
• The machine hours: approx 300 hours
• There are a total of 3 vacuum pumps installed, so the vacuum performance is very good. (original components. )
• Clamex pin milling cutter that simultaneously mills the pockets with a drilling cutter with chip breaker / clamex grooving cutter that simultaneously mills the pockets with a drilling edge / diamond 12mm format pin cutter for formatting with soldered collet chuck / warsteiner lamello profile chamfering complete t-profile in one operation with collet chuck
• Lamello end mill with collet chuck / lamello end mill with arbor / 8 pin end mills with spanner pliers / 30 drill bits / 35,6,8,10,15,30,35 drill bits / saw blade for cnc / 3 drills with collet / 8 vacuum pads for nesting / fixchip with pocket routing with drilling edge

Technical Machine Benefits

• Air conditioning in control cabinet: yes
• Automatic tool length measuring system: yes
• Complete compressed air installation: yes
• Unloading unit with light barrier: yes
• Printer for labels: yes
• Cad/cam macros for clamex, fixchip, cabineo: yes, completely set up and ready for operation
• Tool changer: 17-fold linear changer, 18-position plate changer (tools available at extra charge)
• Extensive tool changers with tools available at an extra charge, advanced control and software systems, high power 12 kw main spindle
• Working field: x 3120 mm, y 2160 mm, z 200 mm
• Travelling distance: x 4455 mm, y 2595 mm, z 495 mm

Extra Information

Machine still under power
