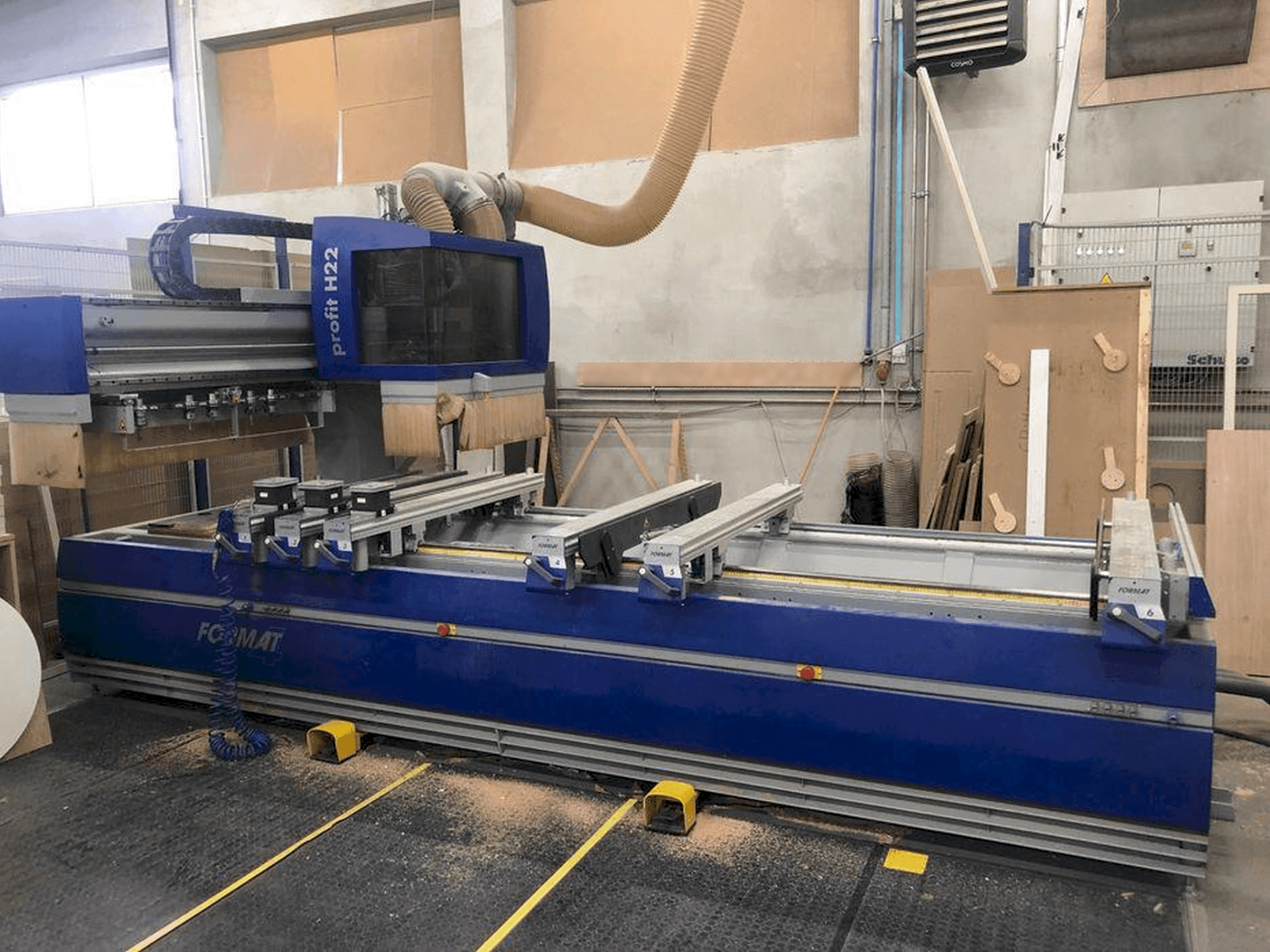

FORMAT4 - Profit H22PL-CNC-FOR-2010-00001

Additional equipment

• Dual Form Lifting Station // Dual Pickup Station For Large Diameter Tools (Up To 270 mm)
• 6 Workpiece Supports (Length 1320 mm)
• X Axis Area Limitation With 2 Pneumatic Cylinders (Left/Right)
• 12 Fast-Positioning Vacuum Pods (140 x 115 x 100 mm)
• 8 Narrow Vacuum Cups (125 x 115 x 100 mm)
• 10 Stop Cylinders For Workpiece Positioning
• Laser Positioning System
• Mobile Control Panel
• Vacuum Pump
• Three-Part Safety Mat For Pendulum Operation

Machine Benefits

Technical Machine Benefits

• The machine has been regularly maintained and always remained in full working condition.
• Speed control: stepless

Extra Information

Electrical Specifications Input Voltage: 400 V Power Type: Three-Phase Drilling Head Total Spindles: 20 Vertical Spindles Count: 14 Pitch: 32 mm Layout: 9 In X Axis, 5 In Y Axis Individually Selectable: Yes Speed: Up To 6000 RPM Horizontal Spindles Count: 6 Pitch: 32 mm Layout: 4 In X Axis, 2 In Y Axis Individually Selectable: Yes Speed: Up To 6000 RPM Grooving Saw Axis: X Max Diameter: 120 mm Speed Control: Inverter-Controlled, Stepless Max Speed: 7500 RPM
