GABIANNI - T-Module 80/1600DE-PLA-GAB-1997-00002

Extra Information

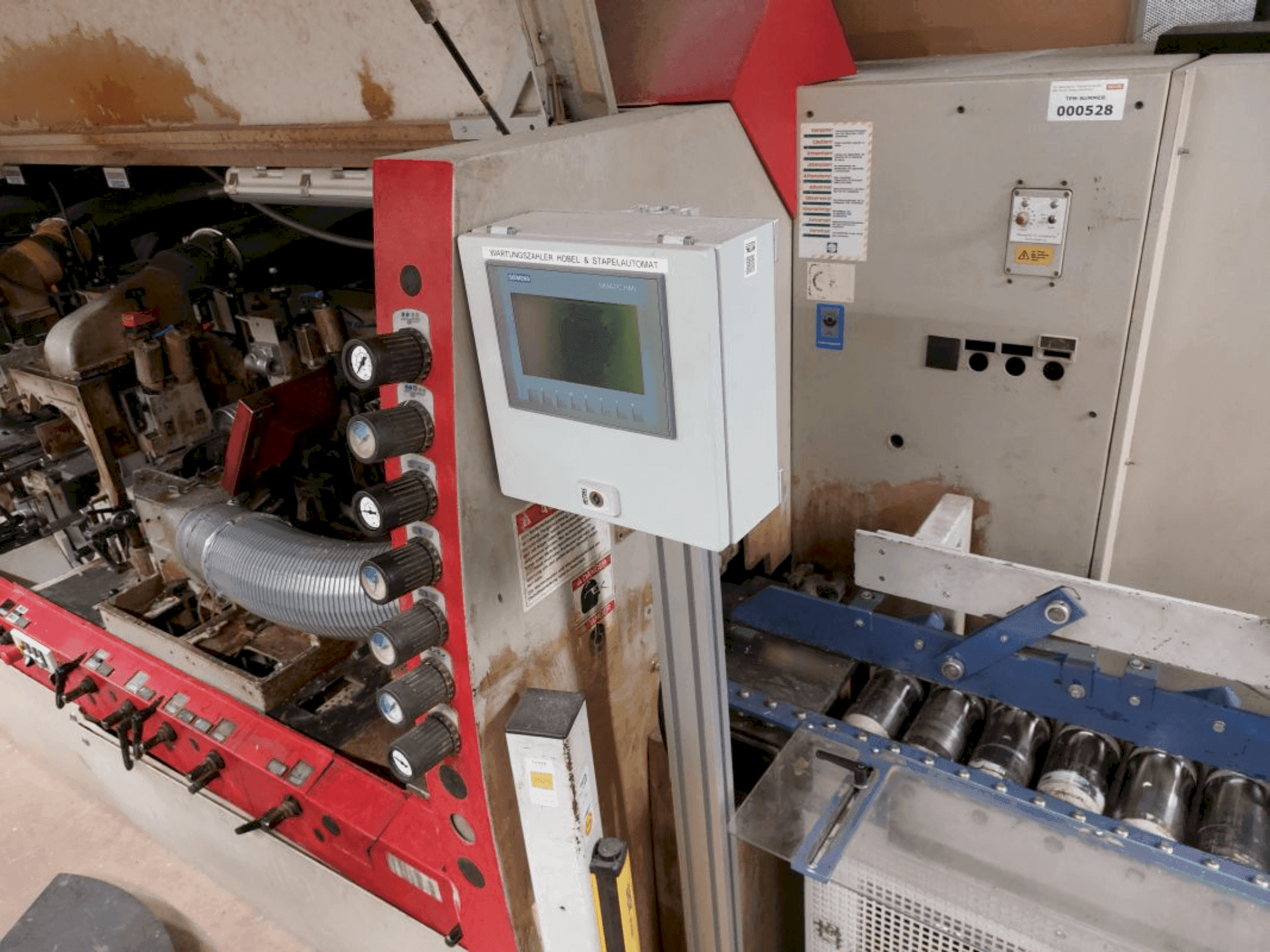

Control System: Vipa compatible with Simens S7 300 Technical Data of the DET Angle Transfer between DET and Planer: Length: 290 - 1600 mm (max 1800 mm) Width: 18 - 150 mm Thickness: 5.5 - 50 mm Density: 600 kg/m³ Max Output: 150 workpieces/min Conveyors: Belt conveyor after the double-end profiler Toothed belt conveyor with brushes as counterholder Cam conveyor for separation Toothed belt conveyor as buffer section Longitudinal push-off Roller conveyor in front of the planer Safety Technology Safety Gate Switch: 3 Safety Light Barriers: 1 Technical Data of the Planer Working Width and Working Height: Working Width: 20 - 230 mm (with tool diameter 125 mm) Working Height: 9 - 140 mm (for tool diameter 125 mm) Infeed Table: Length: 2000 mm Dressing Table Adjustment Range: 10 mm Adjustment Range of Jointing Ruler: 10 mm Levelling Table: Length: 1200 mm Adjustment Range Table: 10 mm Adjustment Range Ruler: 10 mm Spindles Motor Power: Dressing Spindle: 5.5 - 15 kW Joining Spindle: 5.5 - 11 kW Left Spindle: 5.5 - 11 kW Second Right Spindle: 5.5 - 11 kW Upper Spindle: 5.5 - 22 kW Lower Spindle: 5.5 - 22 kW Universal Spindle: 5.5 - 11 kW Feed Rate: Cardan Feed Infinitely Variable: approx. 6-36 m/min Motor Power: 4 - 8.6 kW
