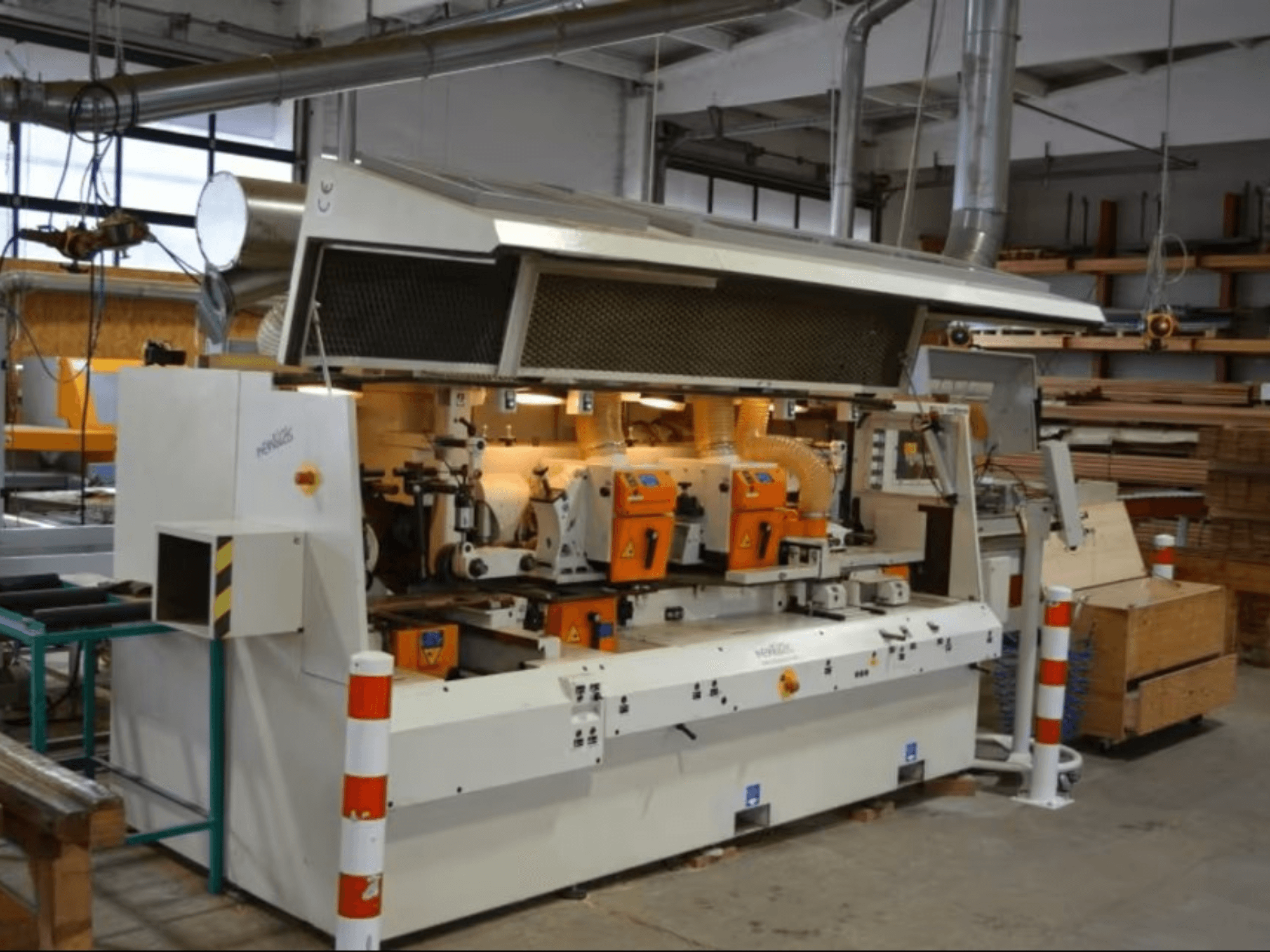

SCM - Superset NTEDE-MIL-SCM-2008-00001

• Configuration: 6 spindles + 1 universal spindle (UNIWELLE) = 7 shafts; suitable for profiling/cutting

• Control: MOBILE 10 touchscreen

• Interface/Tooling system: HSK 85S Powerlock; T-SET spindle quick-change; quick-clamping devices

• Working range:

  • Working width (finished): 15–240 mm

  • Working height (finished): up to 125 mm

  • Minimum workpiece length: 450 mm

• Spindles:

  • Speed: 6,000 / 8,300 rpm

  • Diameter: 40 mm

  • Mounting length: vertical 220 mm, horizontal 250 mm

  • Axial adjustment: vertical 75 mm, horizontal 45 mm

  • Flight circle diameter: dressers 120–140 mm; profile spindles 100–200 mm

  • Profiling depth of 2nd lower shaft with Ø200 mm tool: 15 mm

• Motors:

  • Feed motor: 4 kW (inverter-controlled)

  • Dressing/planing spindle: 7.5 kW

  • Right vertical spindle: 7.5 kW (Powerlock HSK 85)

  • Left vertical spindle: 7.5 kW (Powerlock HSK 85)

  • Upper horizontal spindle 1: 7.5 kW (quick clamping)

  • Upper horizontal spindle 2: 7.5 kW (Powerlock HSK 85)

  • Lower horizontal spindle: 7.5 kW (Powerlock HSK 85)

  • Universal spindle: 7.5 kW (quick clamping)

• Feed system:

  • Feed speed: 6–36 m/min (via inverter)

  • Feed rollers: Ø140 mm; 2 rollers 140 x 25 per feed shaft

  • Motor-driven feed roller in work table and outfeed table

  • Two feed units after upper spindles to reduce center distance from 620 to 450 mm

• Tables and guides:

  • Feed table length: 2,500 mm

  • Adjustment range for feed table and infeed guide: 10 mm

• Pressures, guides, and safety:

  • Horizontal pressure before the planer with on/off switch

  • Horizontal pressure device before the planing shaft, switchable from control panel

  • Pneumatic pressure shoes in front of upper horizontal spindles

  • Pressure shoes at the front of the horizontal spindle guard

  • Hardened insert in work table before the planer

  • Lighting inside protective cover

• Lubrication:

  • Forced lubrication (basic equipment)

  • Manual central lubrication

  • Manual pump for work table lubrication

• Positioning/adjustment:

  • Electronic horizontal positioning

  • Electronic tool diameter setup/adjustment

• Extraction:

  • Required extraction capacity: min. 10,443 m³/h

• Other:

  • On/off switch for feed unit before the planer

Additional equipment

• Extraction hose included

• Powerlock mounting bracket included

• Tooling included for HSK spindles; 240 mm cutterheads installed on horizontal spindles

  • Note: Not all tools shown are included

• Documentation: spare parts catalog (8 complete PDF catalogs)
