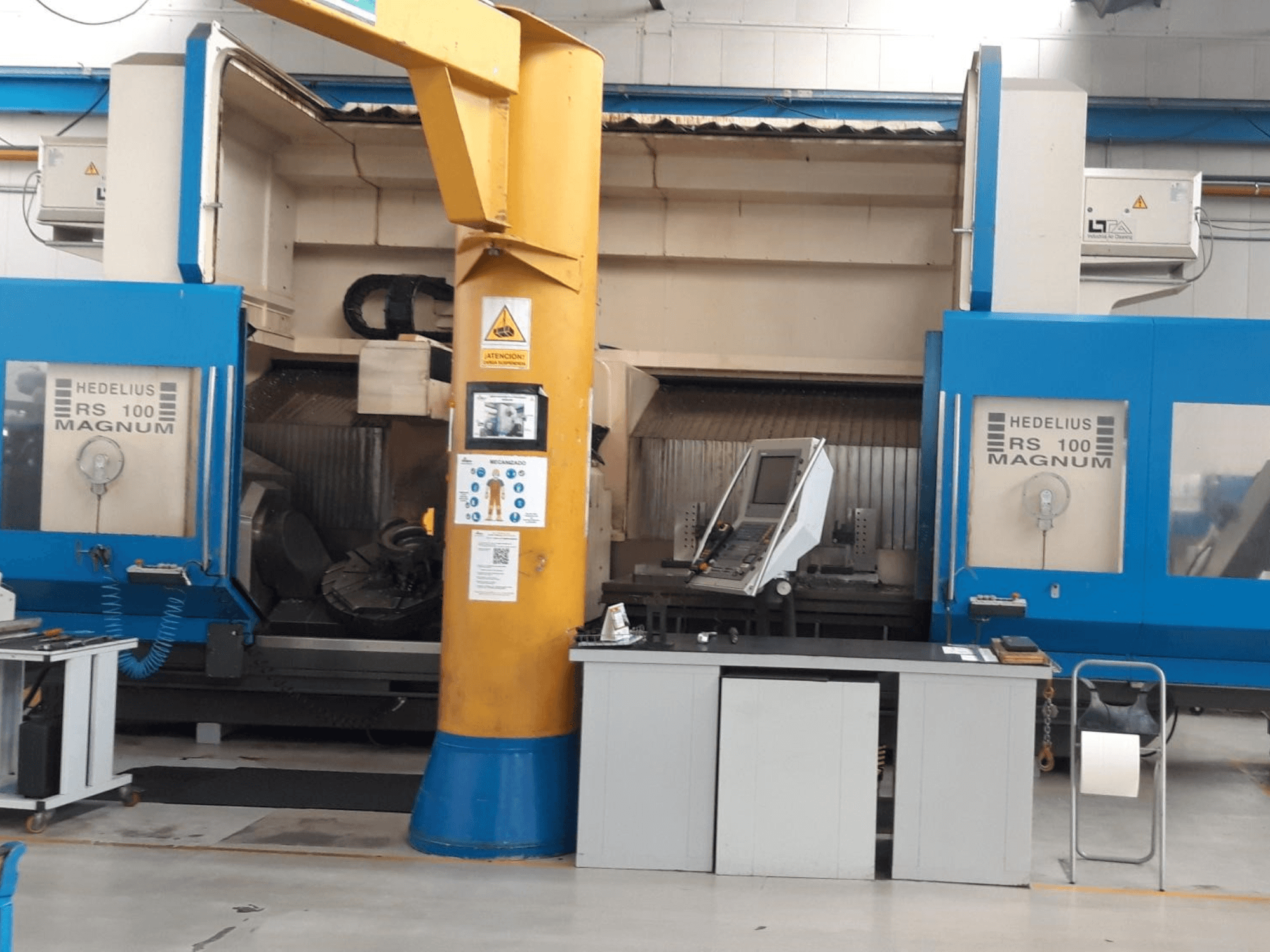

HEDELIUS - RS 100 K MAGNUMES-MIL-HED-2009-00001

Rotary-tilting table travel (X/Y/Z): 1000 / 1000 / 770 mm

Distance spindle nose to table:

• Fixed table: 120–890 mm

• Rotary/tilting table: 175–945 mm

Table surface:

• Fixed table: 2100 × 1000 mm

• Rotary/tilting table: 1000 × 800 mm

Table height from floor:

• Fixed table: 950 mm

• Rotary/tilting table: 895 mm

Max. workpiece weight:

• Fixed table: 2000 kg

• Rotary/tilting table: 1200 kg

Spindle diameter (front bearing): 90 mm

Tool taper: MAS 403-1982 BT50

Feed rates (X/Y/Z): 0–30,000 mm/min

Max. feed force: 15,000 N

Tool magazine capacity: 50 tools

Max. tool diameter: 100 mm

Max. drill diameter: 70 mm

Power supply: 40 kVA, 50 Hz
