HEDELIUS - RS60KM-2000DE-MIL-HED-2006-00001
¿Tiene más preguntas? ¡Contáctenos!
José María García
+34 601 158 008
j.garcia@gindumac.com
- GINDUMAC
- Productos
- Máquinas herramienta
- ➤ Used HEDELIUS RS60KM-2000 For Sale | gindumac.com

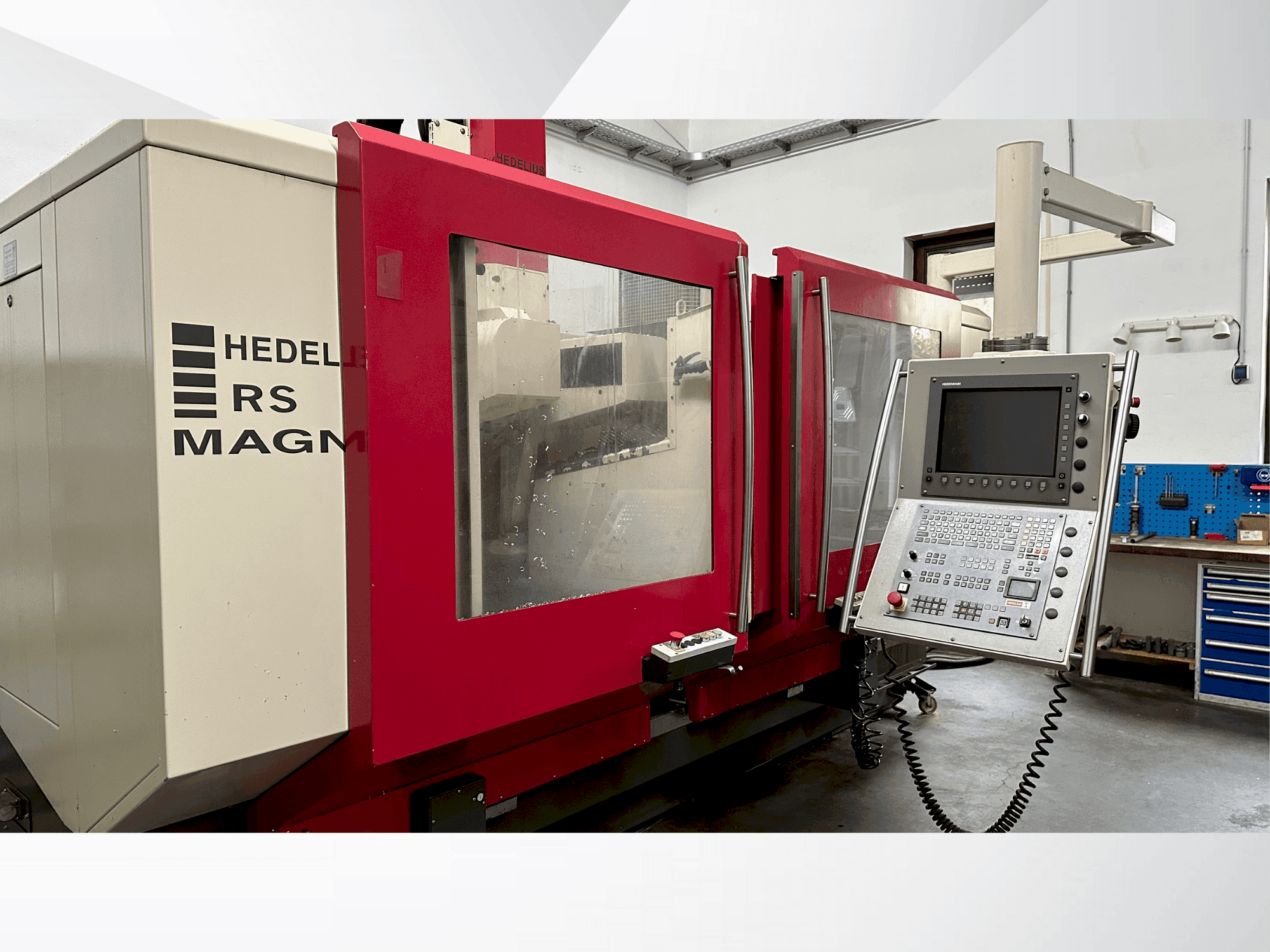

This 5-axis HEDELIUS RS60KM-2000 vertical machining center was manufactured in 2006. It features a Heidenhain iTNC 530 CNC control, an 18.50 kW spindle drive, and a 56-tool capacity magazine. The machine offers a travel distance of 2000 mm on the X-axis, 620 mm on the Y-axis, and 520 mm on the Z-axis. If you are looking to get high-quality milling capabilities, consider the HEDELIUS RS60KM-2000 machine we have for sale. Contact us for more information.
Resumen
- marca: HEDELIUS
- año: 2006
- MODELO: RS60KM-2000
- tipo de aplicación: Fresado
- Ubicación: Alemania
- tipo de máquina: Centro de mecanizado vertical
- Marca de unidad de control: HEIDENHAIN
Información técnica - HEDELIUS RS60KM-2000
Unidad de Control
- Marca del control: HEIDENHAIN
- Modelo del control: iTNC 530/MC422
Recorrido
- Número de ejes: 5
Especificación Técnica
- Potencia del husillo: 18.5 kW
- Velocidad del husillo: 8000 RPM
Información adicional
Additional equipment
- Tool Magazine Capacity: 56 tools
- Chip Conveyor: Coolant-tight with scraper belt, discharge height approx. 1150 mm
- Guide System: High-performance linear guidance system
- Central Lubrication: Fully automatic for all axes
- Electrical Cabinet: Integrated with cabinet fan, NC terminal
- Machine Enclosure: Extra-high with smooth-gliding sliding doors, shockproof and coolant-proof work area lighting
- Paintwork: Machine: RAL 7022 (umbra grey) / Enclosure: RAL 1013 (pearl white) / Doors/Spindle: RAL 3027 (red)
Machine Benefits
Qualitative Machine Benefits
- Combines high flexibility with precision for complex 5-axis machining tasks.
- Suitable for industries demanding superior quality and efficiency.
Technical Machine Benefits
- Integrated rotary-tilt table in the right working area and a fixed machine table in the left working area.
- Tilt range: -10° to +90° / rotational range: ±360° / 5-axis machining capacity: Ø 600 mm
- Clamping weight capacity: approx. 300 kg
- Material: high-load machine table made of gray cast iron
- Maximum tool weight: 8. 5 kg / maximum tool length: 330 mm / maximum tool diameter: 80 mm (Ø 125 mm with adjacent slots free)
- Tool change time: ~3. 0 seconds / chip-to-chip time: ~6. 0 seconds
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
