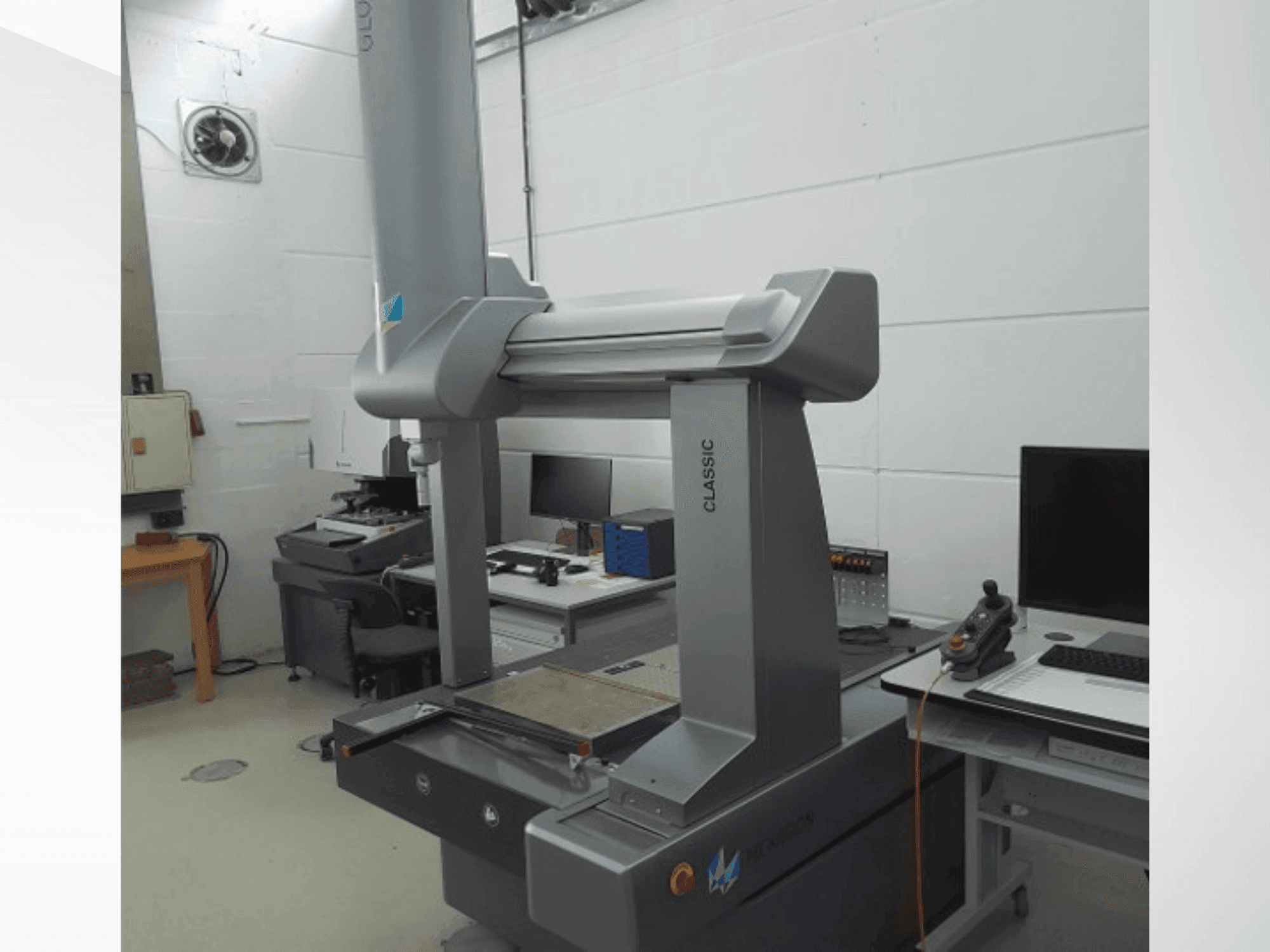

Hexagon - GLOBAL CLASSICDE-MEA-HEX-2016-00001

Additional equipment

• Compressed Air Supply: Min Air Pressure: 0.5 MPa /Max Air Consumption: 70 NI/min / Min Supply Pressure: 0.5 MPa (5 bar) / Min Flow at Input (ANR) UNI ISO 8778: 7.5 dm³/s

• Compressed Air Quality: Max Oil Concentration in Air: 5 mg/m³/ Max Size of Solid Particles in Compressed Air: < 0.04 mm / Max Concentration of Solid Particles in Compressed Air: 3(*)

• Dynamic Performance: 3D Positioning Speed: 510 mm/s / Max Acceleration: 1700 mm/s² / Resolution: 0.039 µm

Machine Benefits

Technical Machine Benefits

• Max workpiece weight: 900 kg

Main System:

• Dell Precision Tower 5820 workstation

• Pre-installed PC-DMIS 2019 measurement software

Probe / Sensor System:

• HP-S-X1S scanning sensor

• HR-X1S automatic probe changer with 6 trays

Calibration & Fixture Equipment:

• Standard calibration standard

• Swift-Fix Kit with silver base plate (400 × 600 × 12 mm)

Accessories (Standard Probe Set – HP-S-X1S):

• 1× Probe Ø 1.5 mm, 20 mm length

• 1× Probe Ø 3 mm, 20 mm length

• 1× Probe Ø 5 mm, 20 mm length

• 1× Probe Ø 3 mm, 50 mm length

• 1× Probe Ø 5 mm, 50 mm length

• 1× Probe Ø 5 mm, 100 mm length

• 1× Wrench

• 2× Spring pins

• 1× Storage case
