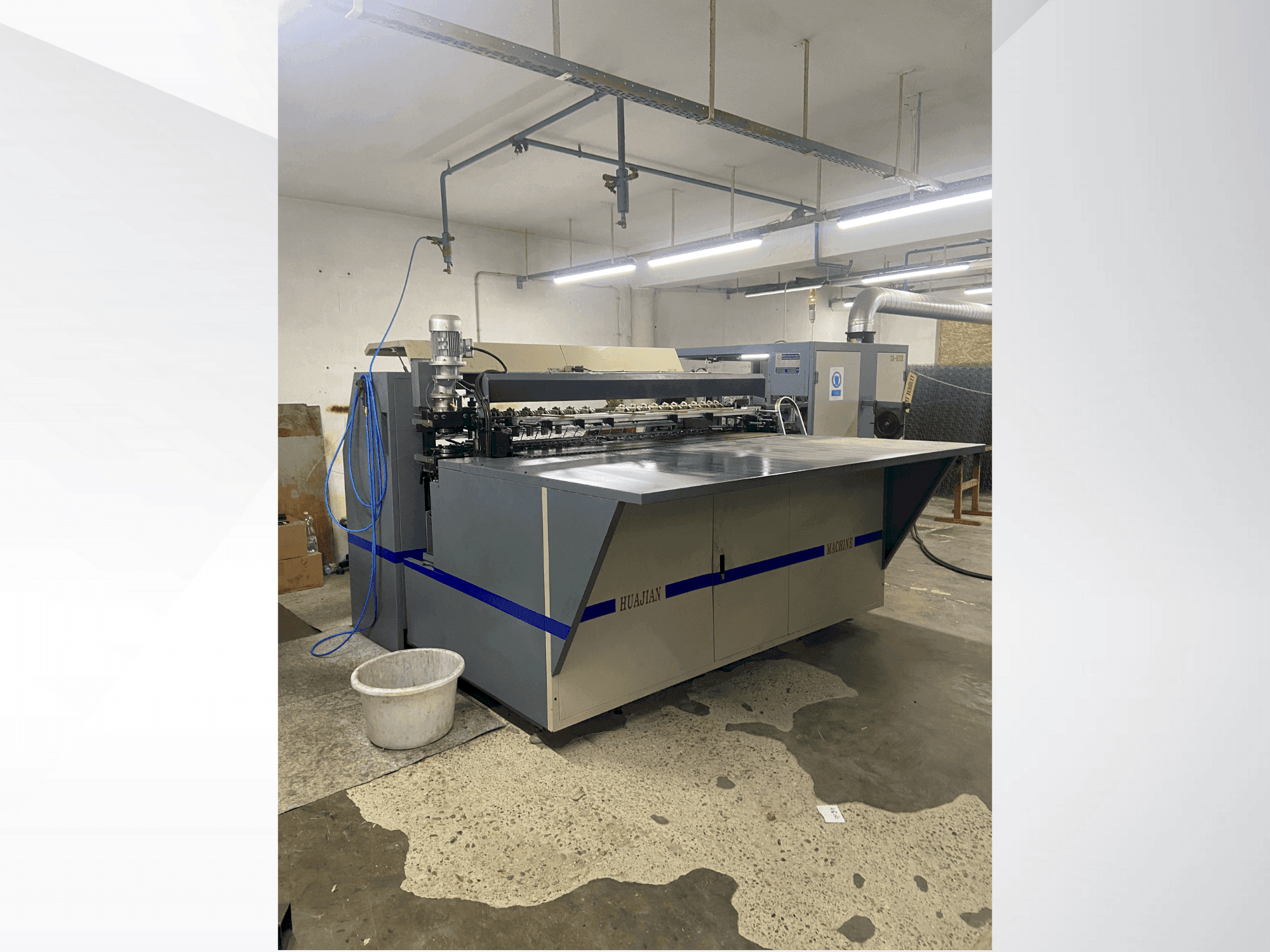

HUAJIAN - SX-820iHU-OTH-HUA-2019-00001

Machine Benefits

Technical Machine Benefits

• Spring type: bonnel / capacity: 85-90 springs per minute / max. Width: 2000 mm / spring end ring: Ø65-Ø72 mm, Ø75-Ø90 mm, Ø82-Ø92 mm / spring steel wire gauge: Ø1. 8-Ø2. 4 mm / helical wire gauge: Ø1. 3-Ø1. 5 mm / spring height: 100-190 mm (<100 mm or >190 mm on request) / convolutions: 4-7 turns / total power: 30 kva / weight: 5355 kg / power requirement: 380v 3phase, 50-60hz (options: 415v - 480v - 220v) / air consumption: 5 m³/h
• Produces a spring carcass to the assembly machine with an automatic transfer system, transforming wire into a spiral shape without human touch. / automatic progression to the next unit upon completion. / nodes and wire drive are server controlled. / quality control system at each production step. / touchscreen interface with symbol indications. / components from internationally known brands (e. G. , delta, smc pneumatic, panasonic sensor, bauer sensor). / error warnings available in english and other languages upon request. / ce certified.
