- ➤ Used Index ABC 42 For Sale | gindumac.com

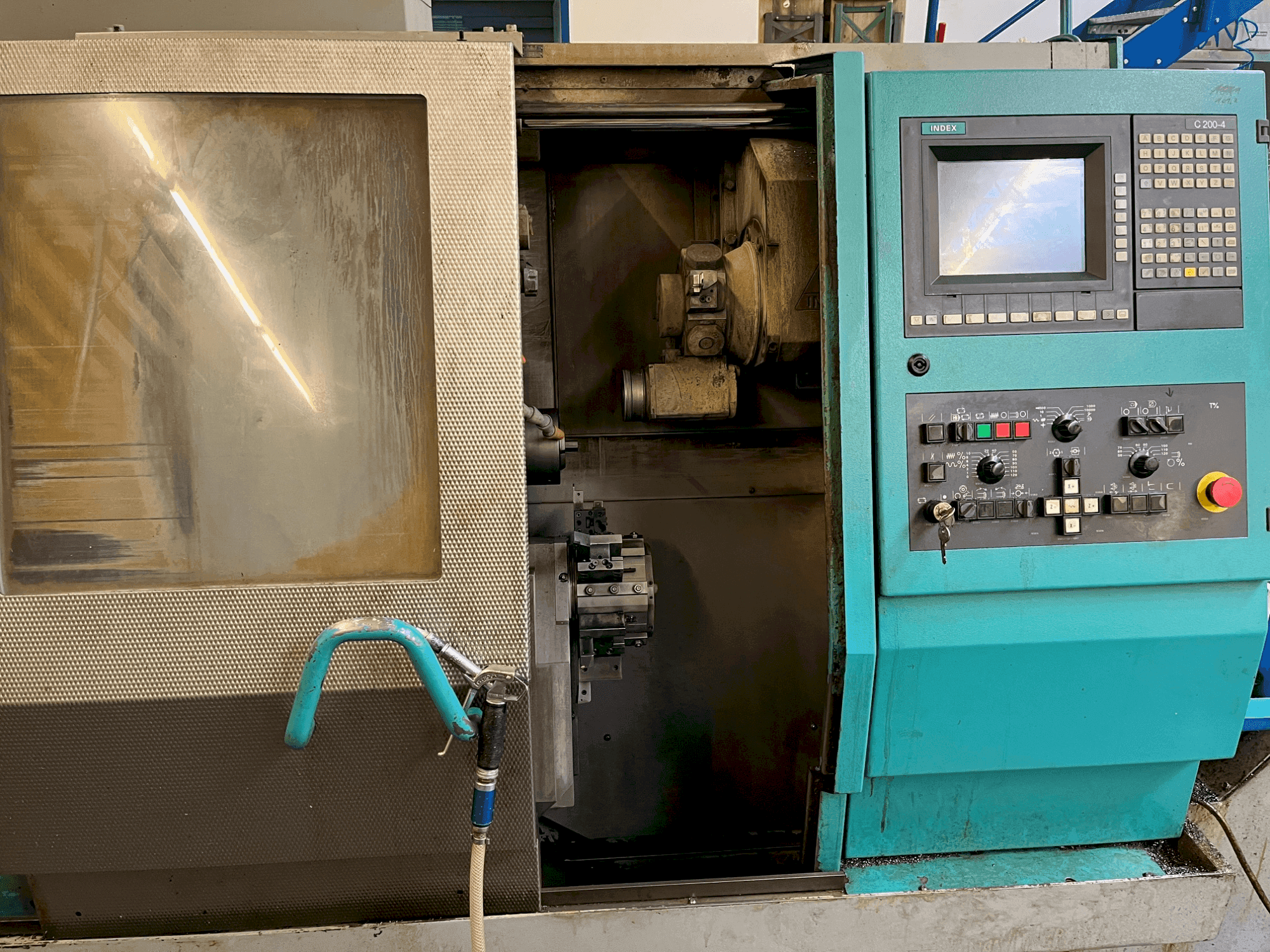

This Index ABC 42 horizontal turning machine was manufactured in 1999. It features a robust tool carrier with revolver setups, offering 8 and 6 tool positions respectively. Equipped with a synchronised spindle, it supports a clamping diameter up to 42mm and a spindle through bore of 15.5mm. Ideal for precision tasks, it includes a bar loading magazine accommodating bars up to 3.2m in length and 52mm in diameter. For more information about this horizontal turning machine, please reach out to us.
Resumen
- marca: Index
- año: 1999
- MODELO: ABC 42
- tipo de aplicación: Torneado
- Ubicación: Alemania
- tipo de máquina: Tornos horizontales
Información técnica - Index ABC 42
Dimensiones
- Peso de la máquina: 2500 kg
Información adicional
Additional equipment
- Tool carrier for max. 5 stationary tools or for max. 3 stationary and 2 driven tools.
- Bar loading magazine:Bar length max. 3.2m. / Bar diameter min. 8 mm. / Bar diameter max. 52mm.
- Hydraulic system:Delivery rate 19 l/min. / System pressure 90 bar. / Filling volume 50 litres.
- Coolant system:Flow rate 40 l/min. / System pressure 4 bar. / Filling volume 170 litres.
Machine Benefits
Technical Machine Benefits
- Spindle speed range: 600 min-1 (tool carrier), 4500 min-1 (synchronised spindle), 4000 min-1 (chuck clamping).
- X-axis: 90 mm (revolver 1), 81 mm (turret 2)/ z-axis: 280 mm (revolver 1 and turret 2).
Extra Information
Tool carrier. Revolver 1 with 8 tool places. Tool system cylindrical shank 25x48mm. X-axis (revolver 1):Slide path 90mm. Feed 5500 N. Rapid traverse 24 m/min. Z-axis (revolver 1):Slide travel 280 mm. Feed 5500 N. Rapid traverse 24 m/min. Torque 7.5 Nm. Speed 600 min-1. Turret 2 with 6 tool positions. X-axis (turret 2):Slide travel 81 mm. Feed 8300 N. Rapid traverse 16 m/min. Z-axis (turret 2):Slide travel 280 mm. Feed 5500 N. Rapid traverse 24 m/min. Synchronised spindle:Torque 10 Nm. Speed 4500 min-1. Clamping diameter max. 42mm. Clamping depth with max. clamping diameter 38mm. Spindle through bore 15.5mm. Ejector stroke max. 38mm. Clamping pressure 65 bar. Chuck clamping:Torque 10 Nm. Speed 4000 min-1. Clamping diameter max. 75mm. Ejector stroke 42mm. Jaw stroke max. 0.6mm. Clamping pressure 20 bar. Tool carrier for max. 5 stationary tools or for max. 3 stationary and 2 driven tools.Speed 6000 min-1. Torque 8 Nm. Tool mounting hole 1 inch. Dimensions:Height 1750 mm. Centre of rotation above floor 1010 mm.
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
