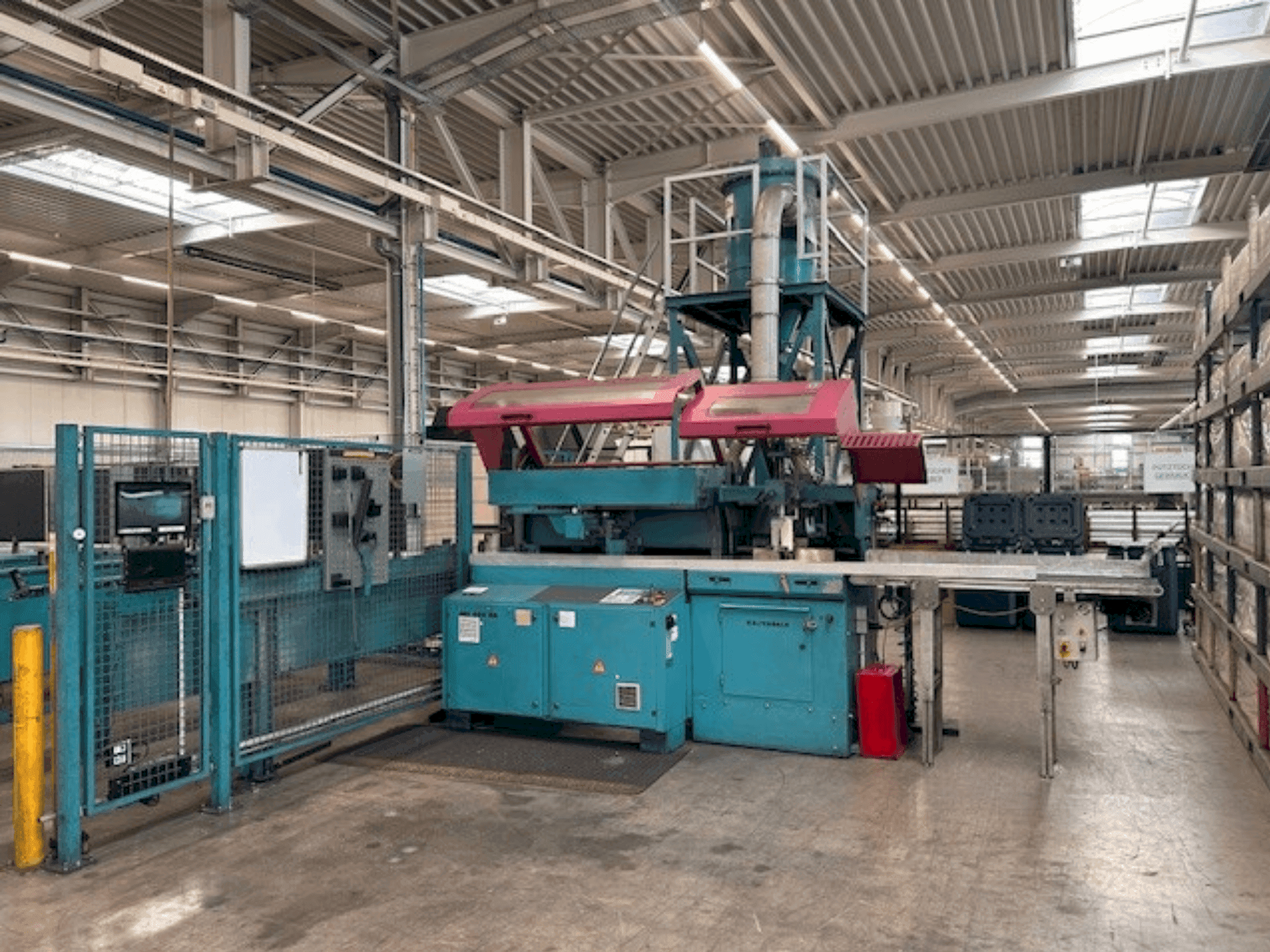

KALTENBACH - SKL 450 NADE-SAW-KAL-2007-00001

Machine Benefits

Qualitative Machine Benefits

• No defects; the system was refurbished in 2024 and is in like-new condition. / scope of delivery: machine without extraction system, including technical documentation (2 copies in binders)

Technical Machine Benefits

• Sawing of solid material made of aluminum and aluminum alloys / sawing of profiles, tubes, and flat material / right-angled and mitre cuts up to ±45 degrees / in combination with a length stop, up to ±90 degrees / slot cutting
• Rotating table for mitre and longitudinal cuts, with a rotation range of 180 degrees / rotary table adjustment: manually continuously adjustable ±90 degrees
• Comes with 450 mm carbide-tipped saw blade, standard tooling, and coolant system / saw blade diameter (standard): 450 mm / kerf width (max. ): 4 mm / saw blade types: carbide-tipped saw blade (hm) / high-speed steel saw blade (hss) / saw blade mounting: mounting hole according to din 8576
• Cutting speed (with 400 mm blade diameter): two-step with v-belt: 1950 / 3900 m/min / feed speed: continuously adjustable: 0–3500 mm/min /rapid return speed: 4500 mm/min
• Electrical connection power (two-step with v-belt): 3. 7 / 4. 7 kw (optional: 4. 7 / 6. 3 kw) / compressed air supply: 6–8 bar
• Weight: 1480 kg / dimensions (l × w × h): 2700 × 1450 × 1900 mm
• Electrically adjustable stroke limit for the saw feed / hydro-pneumatic saw blade feed, infinitely adjustable / rapid return stroke for short cycle times / large cabinet-style door for easy saw blade change, electrically interlocked / protective machine hood with large viewing windows, electrically secured / automatic minimum quantity lubrication (mql system)
