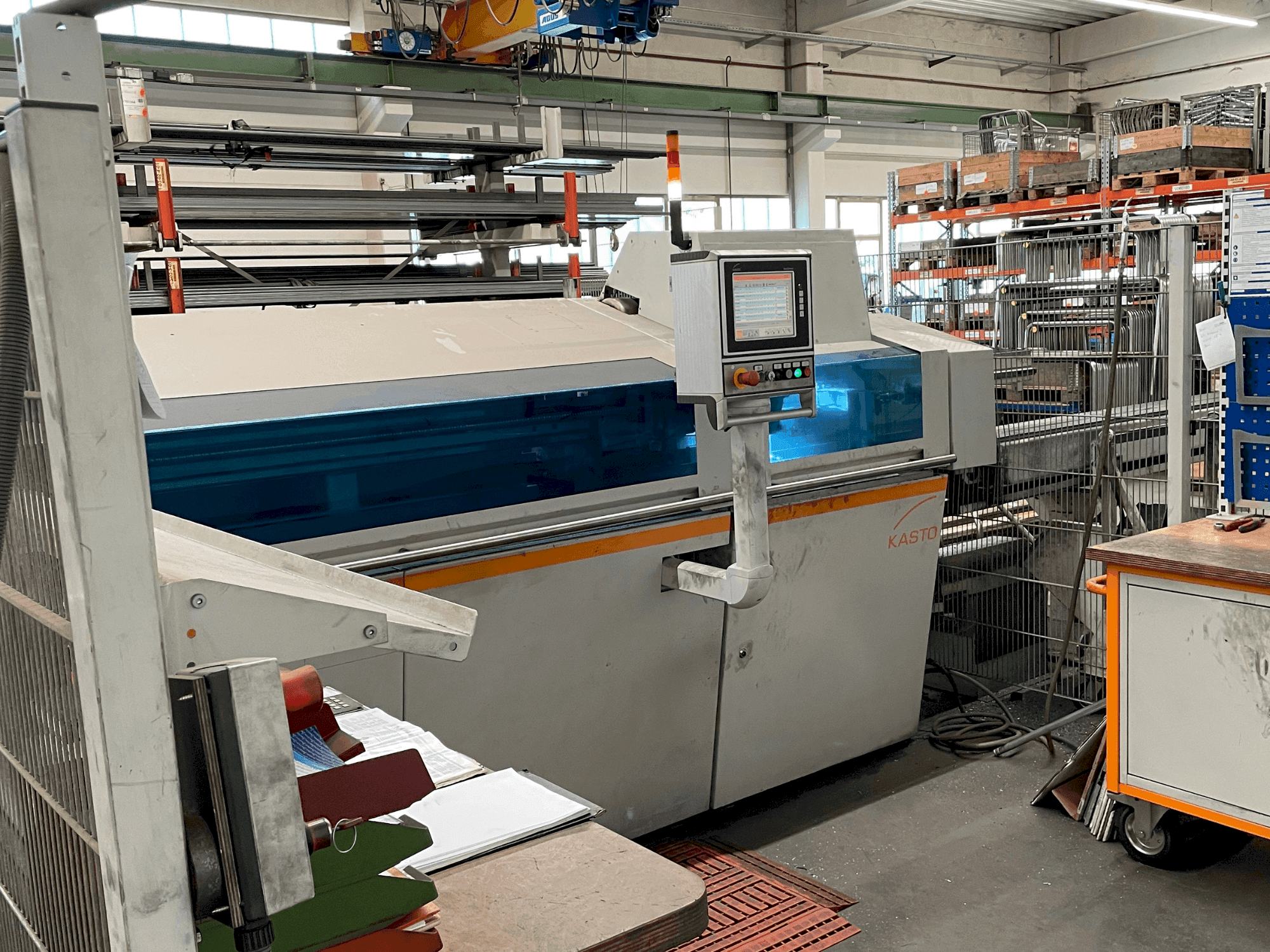

KASTO - KASTOflex FDE-SAW-KAS-2009-00003

Additional equipment

• Voltage: 400 V

• With automatic feed

• Residue bunker

• Coolant device

• Mitre cut

• Loading station, chain magazine with 20 compartments on the infeed side

• Discharge sorting station, discharge side with 5 m long apron conveyor and programmable discharge stations on both sides

• Minimum quantity lubrication

• including 2x shelfs from Kasto

Extra Information

Shelves included Cutting ranges: 04/08 with saw blade 450 mm diameter Round Flat (W x H) Square (W x H) Cutting range 90° @ 150 200 × 100 140 x 140 mm Cutting range 45° 0 145 160 x 80 120 × 120 mm Cutting range 60° 0 115 120 × 60 100 × 100 mm Minimum material height for flat material 8 mm Remnant length in automatic cycle at 90° 35 mm Remnant length in automatic cycle at 45° 95 mm Material support height 1,050 mm Features: Total connected load 8 kW Connected load coolant pump 0.1 kW Frequency-controlled drive (optional) 4 kW Cutting speed continuously variable 10 - 60 m/min Direct dimension input up to 9,999 mm Max. permissible material curvature 12 mm/6 m Feed length in one stroke at 90° 2,030 mm Feed length in one stroke at 45° approx. 1,970 mm Saw feed speed 16 - 520 mm/min Saw blade rapid return 2,000 mm/min Material feed speed 0 - 20 m/min Max. clamping force of material feed vise 12,500 N Max. clamping force of vertical vise 25,000 N Clamping force Reducible (option) Saw blade diameter, special flange Mounting hole according to DIN 8576 350 mm 40/4 x 11/63 mm Saw blade diameter Mounting hole according to DIN 8576 with intermediate ring 400, 450 mm 50/4 x 14/80 mm

Machine also available without the shelving system.
