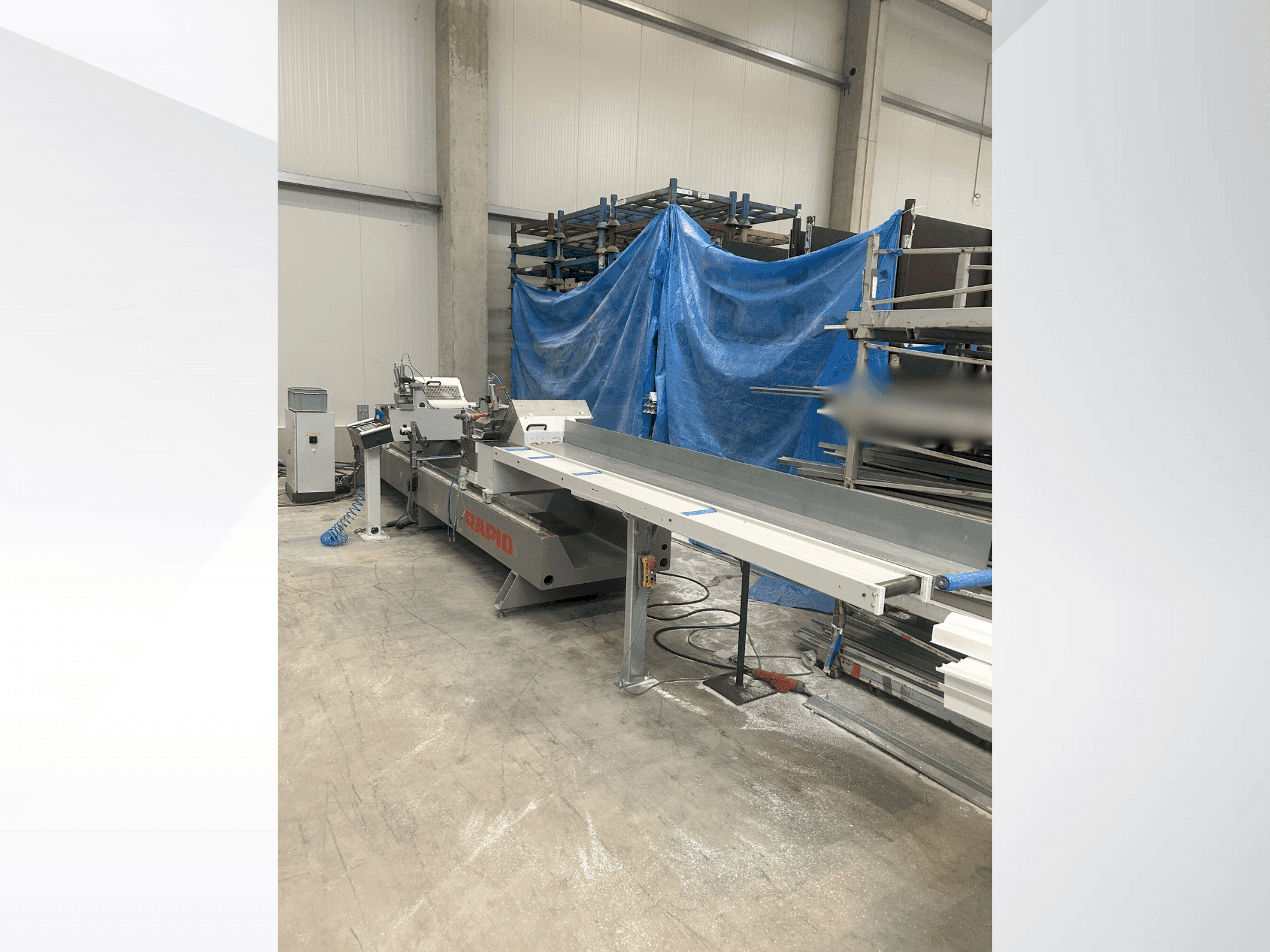

RAPID - DGL 200-EDE-SAW-RAP-2017-00001

Additional equipment

• Pneumatic saw feed
• Clamping device:2 horizontal clamping cylinders 2 vertical clamping cylinders

Machine Benefits

Qualitative Machine Benefits

• The machine ran in two shifts for approximately 3 years and in one shift for the last few years.

Technical Machine Benefits

• Max blade diameter: 500 mm
• Swivel range: manual 45° to 90°
• Cutting lengths: 3700 mm

Extra Information

Drive: 2 x 2.2 kW motors Unit adjustment: Motor-initiated Saw feed: Pneumatic Swivel range: 45-90°, manually adjustable Clamping device: Two horizontal clamping cylinders Control system: Prepared for the attachment of a Rapid control system Fixed center support to support the profiles Saw blades D=500 2x ball screw spindle for unit adjustment Smallest sawing dimension: approx. 310 mm Equipment: DGL-200/R600 ELEKTRONIK with ATV 32 DGL200SE VERT. CLAMP NO. M. AGAINST DGL-200E DGL200TK SHORT T. CONNECTION DGL-200RB Movable roller conveyor, width 215 mm DGL-200E CONNECTION 2.2KW Preparation for FRENIC EXTRACTION CONNECTION Socket connection for extraction up to max. 2.2 kW prepared at the factory DGL200VP - PLANK PACK. FIXED CONTROL PANEL DG1.200
