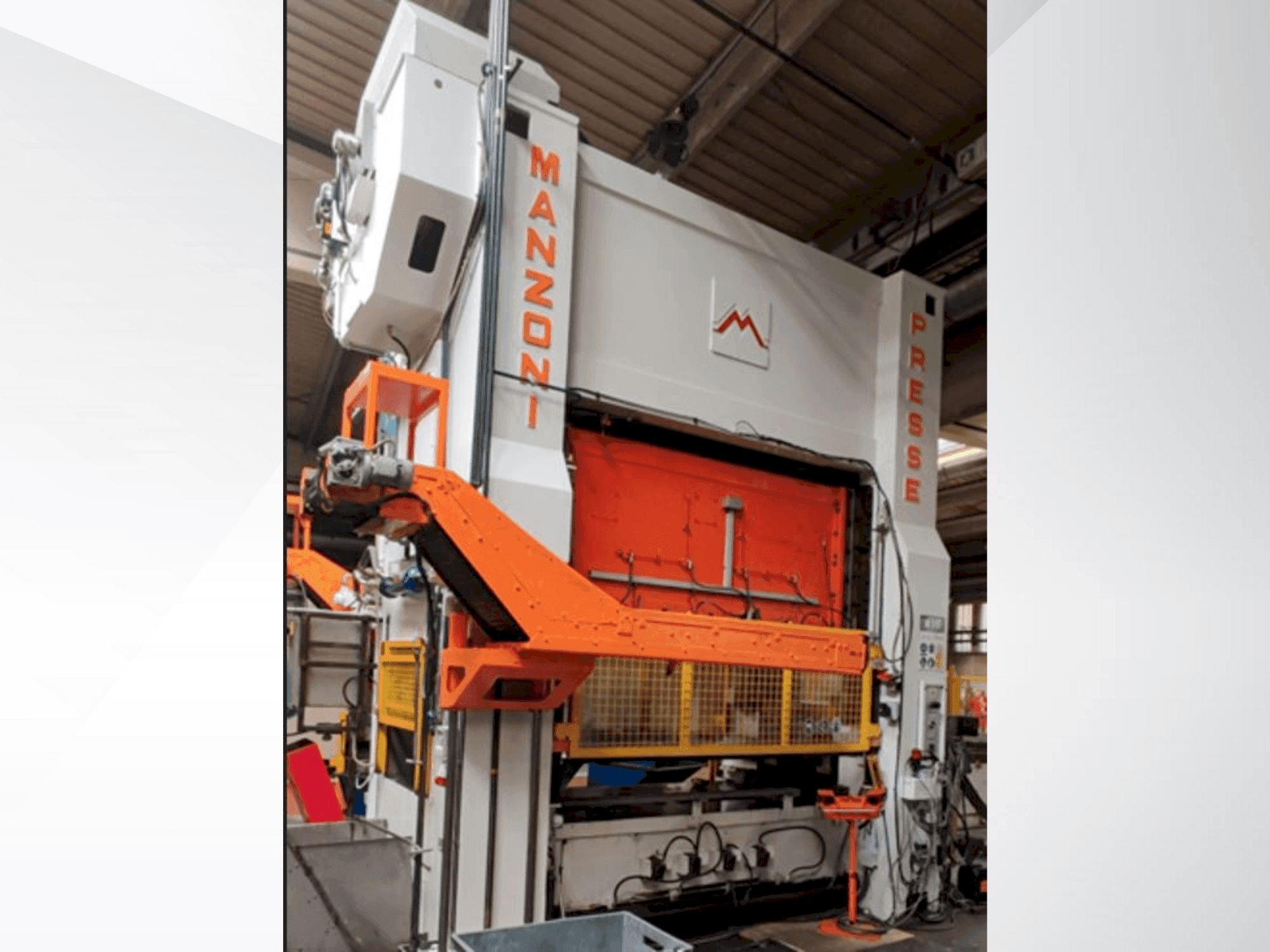

This RAVNE PRESSES Manzoni 315 stamping machine was manufactured in 1992. It features a robust eccentric H-frame, monoblock design with a press force of 3150 kN and a drive power of 60 kW. It has a fixed stroke of 200 mm and slide dimensions of 2550 x 1250 mm. If you are looking to get high-quality stamping capabilities, consider the RAVNE PRESSES Manzoni 315 machine we have for sale. Contact us for more information.
Resumen
- marca: RAVNE PRESSES
- año: 1992
- MODELO: Manzoni 315
- tipo de aplicación: Estampado
- Ubicación: Eslovenia
- tipo de máquina: Prensa mecánica de estampado
Información técnica - RAVNE PRESSES Manzoni 315
Dimensiones
- Peso de la máquina: 58500 kg
Especificación Técnica
- Carrera máxima: 200 mm
Información adicional
Additional equipment
- Magnetic conveyor for scraps
- Quick die cart system
- New rails for die cart system
- Scissors for sheet cutting
- Scissors for sheet cutting
- Documentations and drawings included
Machine Benefits
Qualitative Machine Benefits
- Feeding speed: 2-96 m/min
- Complete press line included
- Press was rebuilt in 2017
- All services are documented
- Decoiler max. Sheet width: 500 mm
- Max. Coil outer diameter: 1500 mm
- Max. Coil outer diameter: 1500 mm
- Feeder roll diameter: 127 mm
- Feeder motor power: 75 kw
Technical Machine Benefits
- Stroke rate: 10 – 65 /min
- Slide adjustment: 200 mm
- Number of pressure points: 2
- Slide dimensions: 2550 x 1250 mm
- Bed dimensions: 2650 x 1250 mm
- Shut height: 500 – 700 mm
- Side opening dimension: 1000 mm
- Front opening dimension: 2810 mm
- Number of straightener rolls: 9
- Uncoiling speed: 2 - 25 m/min
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
