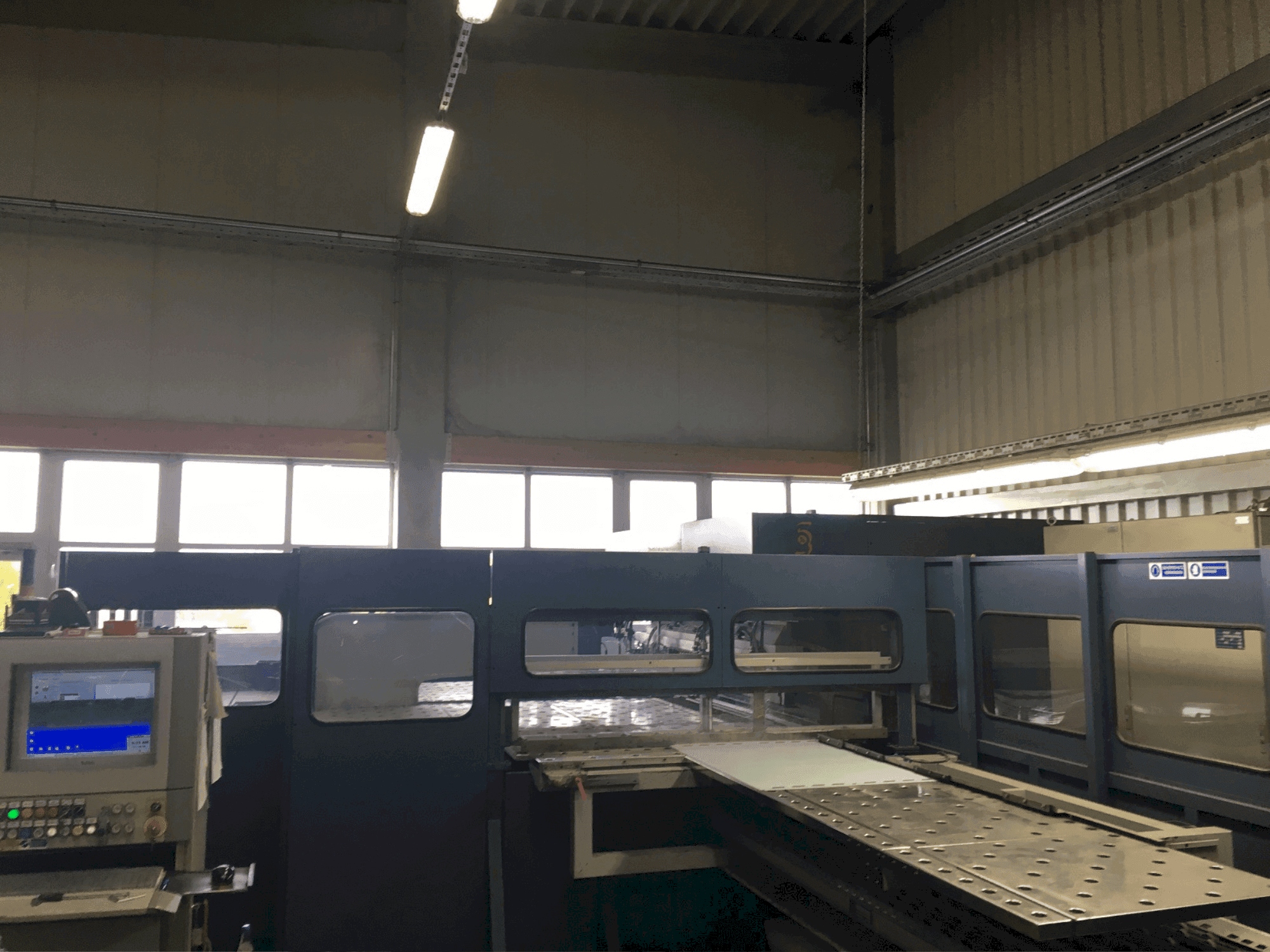

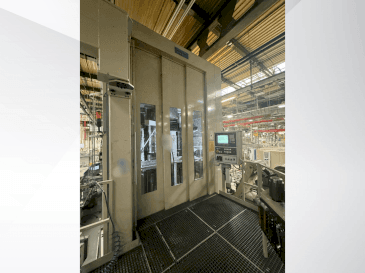

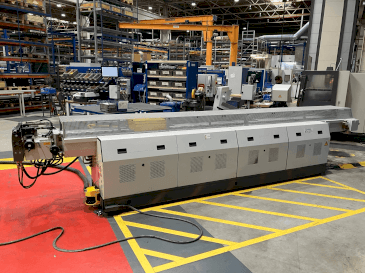

Salvagnini - P4-2512DE-OTH-SAL-2000-00001

Additional equipment

• O+UC1000/2(SO)
• P40FFICE
• Tool set consisting of 13 CLA tool pairs for a total length of 1100 mm
• Includes pairs of CLA tools ranging from 25 mm to 90 mm
• Quick-clamping segments for large-area recesses

Machine Benefits

Technical Machine Benefits

• Max length of the notched blank at the inlet: 2700 mm
• Max width of the notched blank at the inlet: 1500 mm
• Max rotating diagonal of the notched blank: 2700 mm
• Max space for bends above the work table: 127 mm
• Max sheet thickness at tensile strength 410 n/mm²: 2. 00 mm
• Max sheet thickness at tensile strength 600 n/mm²: 1. 25 mm
• Max sheet thickness at tensile strength 265 n/mm²: 3. 00 mm
• Min sheet thickness: 0. 50 mm

Extra Information

Optional: set of clamps 84x 25 mm segments 10x 155-200 mm center segments 2x BLC swivel segments 2x BLX sliding segments 2x tool slides Optional: special clamps with recesses: 12x 150 mm quick-release segments 2x 40 mm quick-release segments 20x 50 mm quick-release segments 2x 75 mm quick-release segments 2x 185 x 195 mm center segments
