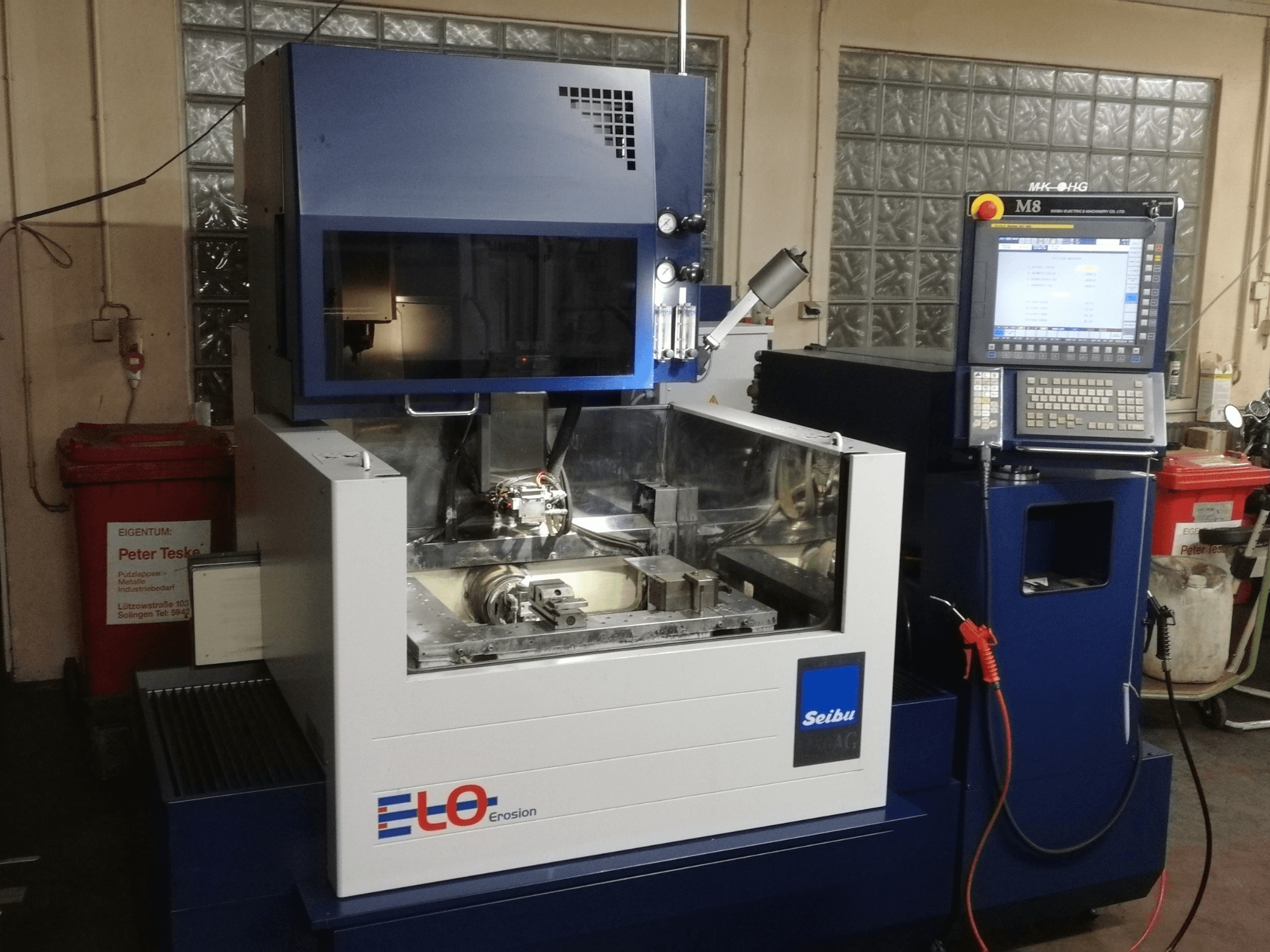

SEIBU - M50AGDE-EDM-SEI-2015-00001

Maximum workpiece dimensions (W × D × H): 800 × 650 × 300 mm

• Note: only coaxial flushing available for heights ≥ 250 mm

Maximum workpiece weight: 800 kg

Drive system: AC servo drives

Linear axes (X/Y)

• Travels: X 500 mm (right/left), Y 350 mm (forward/backward)

• Traversing speeds: rapid 1,200 mm/min; medium 100 mm/min; slow 10 mm/min

• Smallest increment (step): 0.0001 mm

Upper head (Z-axis)

• Drive system: AC servo drive

• Travel (up/down): 310 mm

Tapering device (U/V axes)

• Drive system: AC servo drives

• Travels (upper head): U 120 mm (right/left), V 120 mm (forward/backward)

• Traversing speeds: rapid 1,200 mm/min; medium 100 mm/min; slow 10 mm/min

• Smallest increment (step): 0.0001 mm

• Taper angle: standard up to ±32°; at 120 mm cutting height: ±10°; optional (at 40 mm cutting height): ±45°
