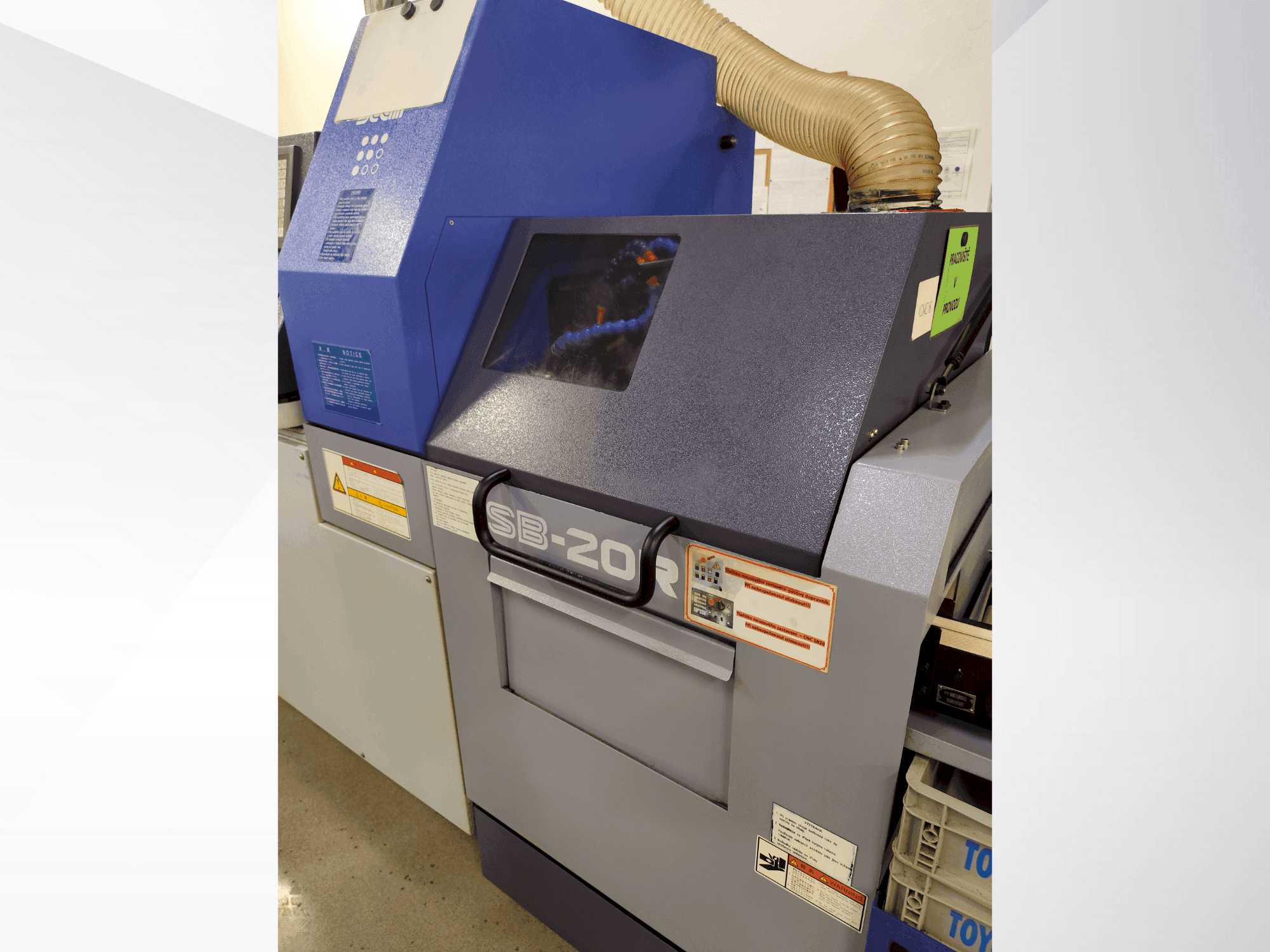

This 5-axis Star SB-20R type N was manufactured in 2014, featuring a CNC Fanuc 0i-TD, C-axis on both main and sub-spindles, and a 6-position tool holder. It includes a 5-spindle unit for cross drilling, a sub-spindle with a 20mm part picking capacity, and a standalone coolant tank. Ideal for precision small parts production. If you are looking to get high-quality turning capabilities, consider the Star SB-20R type N machine we have for sale. Contact us for more information.
Resumen
- marca: Star
- año: 2014
- MODELO: SB-20R type N
- horas de producción: 31316
- tipo de aplicación: Torneado
- Ubicación: República Checa
- tipo de máquina: Torno de tipo suizo
- Marca de unidad de control: FANUC
Información técnica - Star SB-20R type N
Unidad de Control
- Marca del control: FANUC
- Modelo del control: 0i-TD
Información adicional
Additional equipment
- Part ejection safety lock / Part ejection device (spring type) / Blow-off device for guide bushing and sub-spindle / Standalone coolant tank with level monitoring / Probe / Automatic central lubrication unit with level monitoring / Interface for bar feeder / RS232C interface / RJ45 / USB
- The machine was used for serial production of small parts with extreme precision from standard relatively soft material. The machine was not dynamically stressed, production was carried out on oil. Service was regular, with almost continuous replacement of bearings, all in perfect condition.
- MBC (BROXTEC) chip conveyor / Workpiece conveyor belt / FMB Minimag 3200 bar feeder (⌀ 8)
Machine Benefits
Technical Machine Benefits
- C-axis on the main spindle and sub-spindle
- Clamping device on the main spindle and sub-spindle / collet clamping sleeve for main spindle and sub-spindle f25
- 6-position tool holder 12x12mm / 4-position tool holder without drill clamping
- Sub-spindle with part picking capacity of 20mm (23mm)
- 5-spindle unit for cross drilling with driven tools / drive unit for driven tools for rear-side machining with 4x er16 drill holders /tool breakage safety device
Extra Information
4 machines are available
