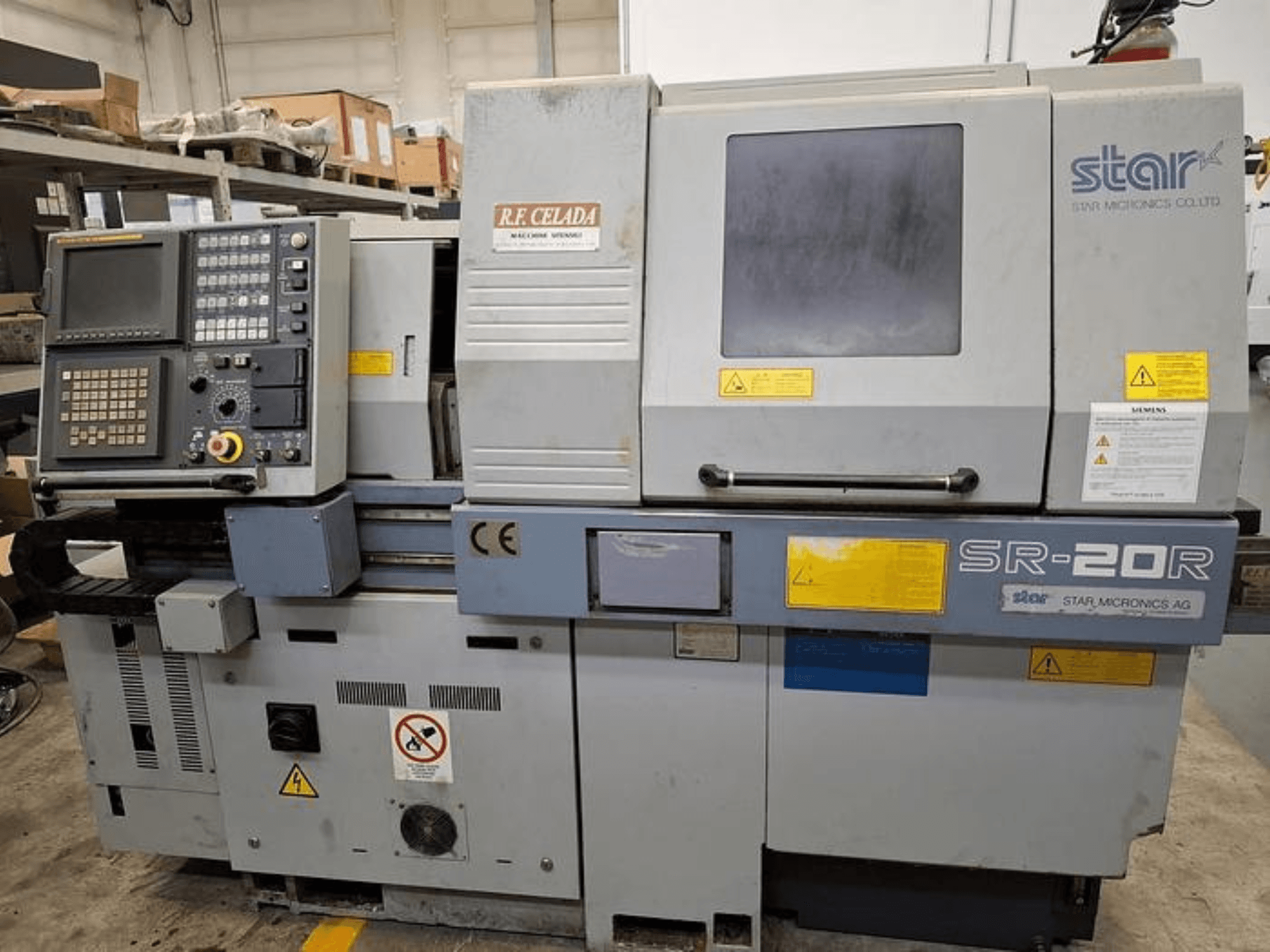

Swiss type turning machine manufactured in 2000. This Star SR 20 R was designed for precision turning with a maximum turning diameter of 20 mm and a spindle speed of 8,000 rpm. It features 6 fixed turning tool stations and 4 radial motorized tool stations, providing versatility for various applications. Consider the opportunity to buy this Star SR 20 R swiss type turning machine. Contact us for further details.
Resumen
- marca: Star
- año: 2000
- MODELO: SR 20 R
- tipo de aplicación: Torneado
- Ubicación: Italia
- tipo de máquina: Torno de tipo suizo
Información técnica - Star SR 20 R
Dimensiones
- Altura de la máquina: 1700 mm
- Peso de la máquina: 2200 kg
Recorrido
- Número de ejes: 2
Especificación Técnica
- Potencia del husillo: 3.7 kW
- Velocidad del husillo: 8000 RPM
Información adicional
Capacities
Maximum turning diameter: 20 mm
Maximum mobile tailstock travel (single clamping): 205 mm
Maximum workpiece diameter / through bore: 20 mm
Maximum workpiece length (front ejection): 80 mm
Spindle
Spindle bore diameter: 20 mm
Feeds
Rapid feed (linear axes): 20 m/min
Rapid feed (C-axis): 90,000°/min
Maximum cutting feed (linear axes): 10 m/min
Maximum cutting feed (C-axis): 10,000°/min
Tooling
Fixed turning tool: M8 × 1.25
Rotary tool on comb slide: M6 × 1
End mill on comb slide: Ø 10 mm
Fixed turning tool stations (std/opt): 6
Tool shank diameter (std/opt): 12 mm
Radial motorized tool stations: 4
Max speed of motorized units: 8,000 rpm
Max power of motorized units: 1.2 kW
Fixed drilling/tapping tool stations: 4
Max collet diameter (ER collet): 10 mm
Max drilling capacity (C45 steel): 8 mm
Max tapping capacity (C45 steel): M8 × 1.25 / M6 × 1
Power and utilities
Available power: 2.2 kW
Total installed power: 7 kVA
Tank capacity: 155 L
Machine dimensions & weight
Maximum footprint: 2.21 × 1.08 m
Axes
Number of axes: 2 (X and C)
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
