➤ Used STM WS3040 Waterjet Cutter For Sale | gindumac.com

Mostrar en idioma original

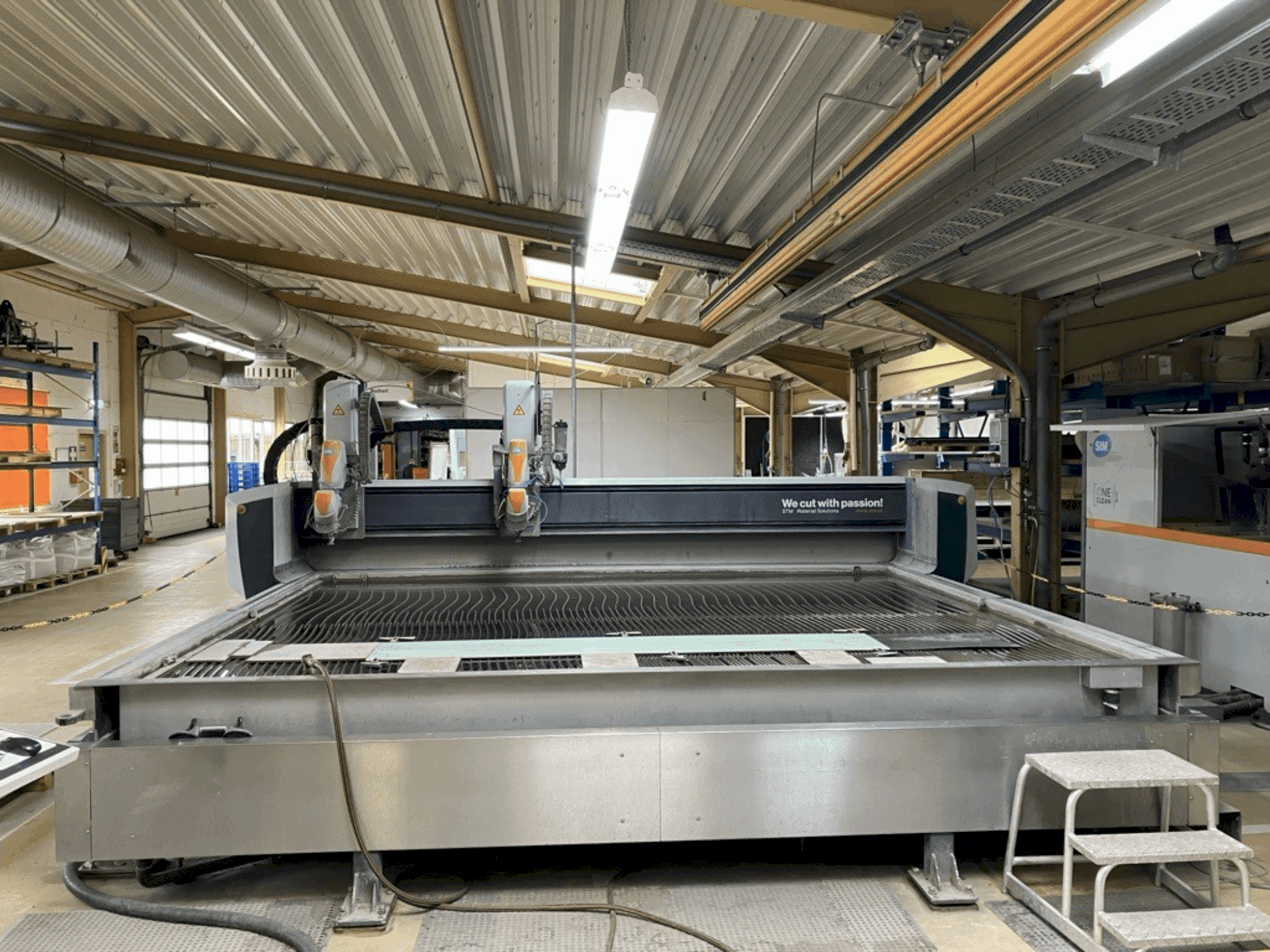

This 3-axis STM WS3040 waterjet cutting machine was manufactured in 2019. It features a large effective cutting area of 3000 x 4000 mm, dual Z-axis CNC for enhanced precision, and is equipped with advanced NUM FLEXIUM plus 3D 5-axis control. Additional highlights include LED work area lighting, a high-pressure Servotron pump, and comprehensive safety technology. If you are looking to get high-quality cutting capabilities, consider the STM WS3040 machine we have for sale. Contact us for more information.

Resumen

marca: STM
año: 2019
MODELO: WS3040
tipo de aplicación: Corte
Ubicación: Alemania
tipo de máquina: Máquina de corte por chorro de agua

Información técnica - STM WS3040

Dimensiones

Profundidad de la máquina: 3900 mm
Altura de la máquina: 2500 mm
Peso de la máquina: 2700 kg

Recorrido

Número de ejes: 3

Información adicional

Additional equipment

Installation and Assembly
Service Toolbox
3-day Training for up to 4 people
Retrofit between 2020-2023

Machine Benefits

Technical Machine Benefits

Quick up feature
High-pressure connection between pump and cutting head
Pressure relief valve
Effective cutting area: 3000 x 4000 mm
2x z-axis cnc 3d with a and b axes
Clearance height: 300 mm with quick up
2x stm3d cutting heads with cutting angle error compensation, pivotable up to 68°
Max material thickness: 50 mm
Support surface: 3100 x 4100 mm
2x electric pre-drilling unit for material

Extra Information

Pressure Bag Filter for Wastewater Treatment Machine-Specific Data Servotron 40.45+ High-pressure Pump: 4.6 liters/min, 45 kW CNC Abrasive Dosing Unit with Intermediate Container 1600 kg Abrasive Storage Container with Mini Hopper Media Oil Filling, AC Oil/Air Heat Exchanger OneClean Hydrofilter including Automatic Water Level Control for Cutting Tank Water Analysis System Control Unit CNC Control: NUM FLEXIUM, 40 m/min Handheld Control Unit Touch Screen Operation Work Area Lighting via LED Strip
