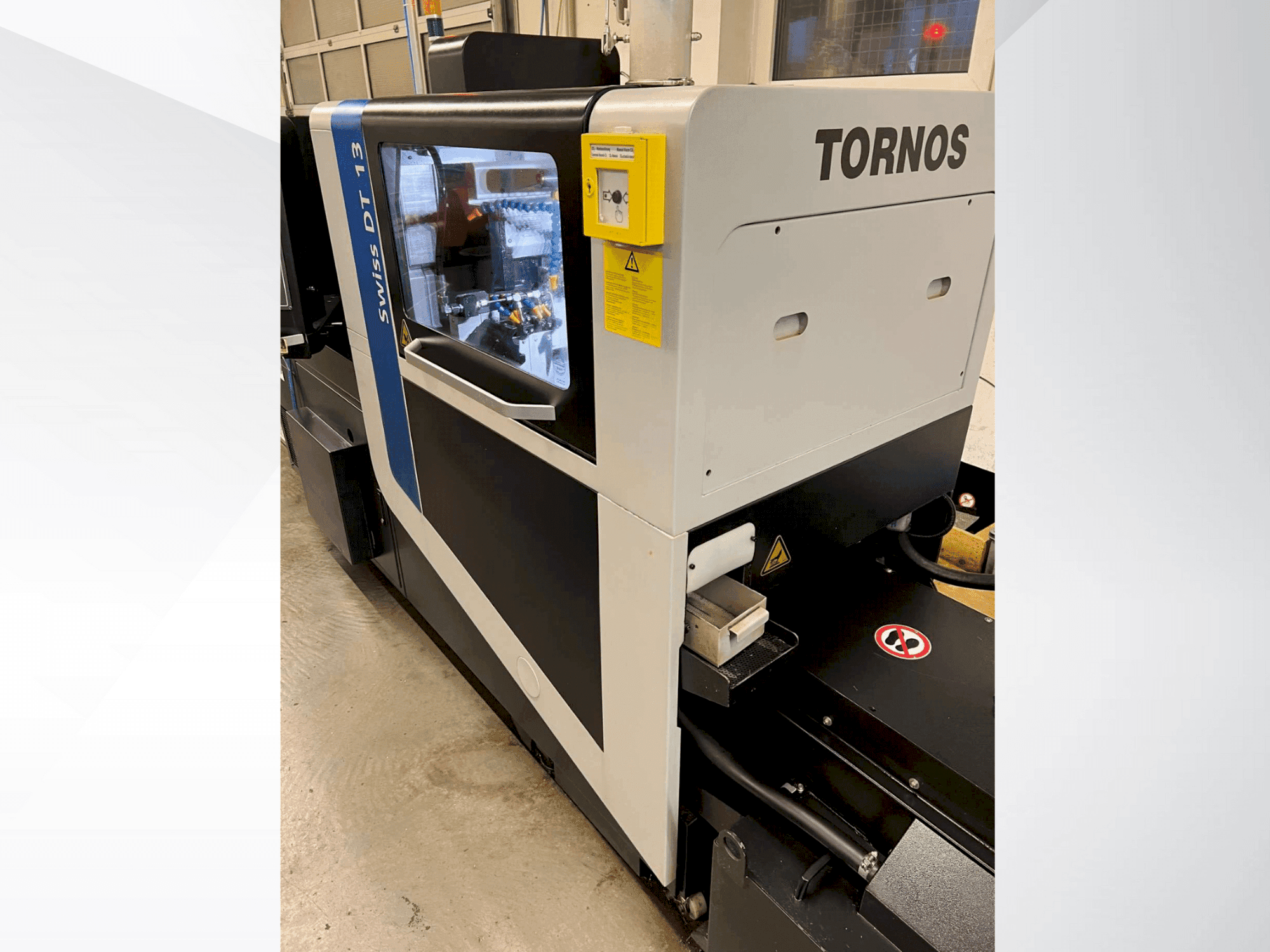

TORNOS - Swiss DT 13DE-TUR-TOR-2016-00001

Additional equipment

• Including all existing machining units and accessories
• Tool holder for 6 turning tools 12x12 mm on the front side
• S11 tool drive on the X1/Y1 axes of the front unit included:
• 1 rotating cross drilling unit with 3 spindles for collet chuck ER11 (of which 2 x 10,000 rpm and 1 x 6.666 rpm).
• Tool carrier with 4 holes Ø 22 for fixed finishing tools.
• Tornos Robostar SBF 213 bar feeder
• Including all existing machining units and accessories

Machine Benefits

Qualitative Machine Benefits

• The machine has driven tools on both the front and rear machining sides.
• Tool system for counter operation:
• Tool carrier for 4 tools for counter operation with 4 free spaces for stationary and/or rotating tools (rotating unit not included).
• 4 tool holders bore 22 mm.
• Kraeft & bauer fire extinguishing system all axes fully cnc
• 1 x counter spindle
• 60 bar high pressure pump
• Hinged belt conveyor

Technical Machine Benefits

• Oil cooling // oil basin 170l
• Kraeft & bauer fire extinguishing system all axes fully cnc
• 3 x driven tools
• 4 x driven tools for back machining chute for finished parts
• 60 bar high pressure pump
• Hinged belt conveyor
• Tornos robostar sbf 213 bar feeder
• Adaptation for collets f16 (no. 76-1076)
• Counter spindle: max. Diameter 13 mm // c4 axis function
• 3 x driven tools // 4 x driven tools for back machining chute for finished parts

Extra Information

Machine under power and immediately available
