TRUMPF - TrumaBend V85AT-BEN-TRU-2001-00001

Name: TRUMPF TrumaBend V85
Brand: TRUMPF
SKU: AT-BEN-TRU-2001-00001
Price: 319495 MXN
Availability: InStock

MXN 319,495

Precio GINDUMAC

(Ex works)

Obten un presupuesto oficial

Visita la máquina

haz una contraoferta

Descargar PDF

¿Tiene más preguntas? ¡Contáctenos!

José María García

+34 601 158 008

j.garcia@gindumac.com

Contacta por Whatsapp

GINDUMAC
Productos
Máquinas para chapa
➤ Used TRUMPF TrumaBend V85 Press For Sale | gindumac.com

Mostrar en idioma original

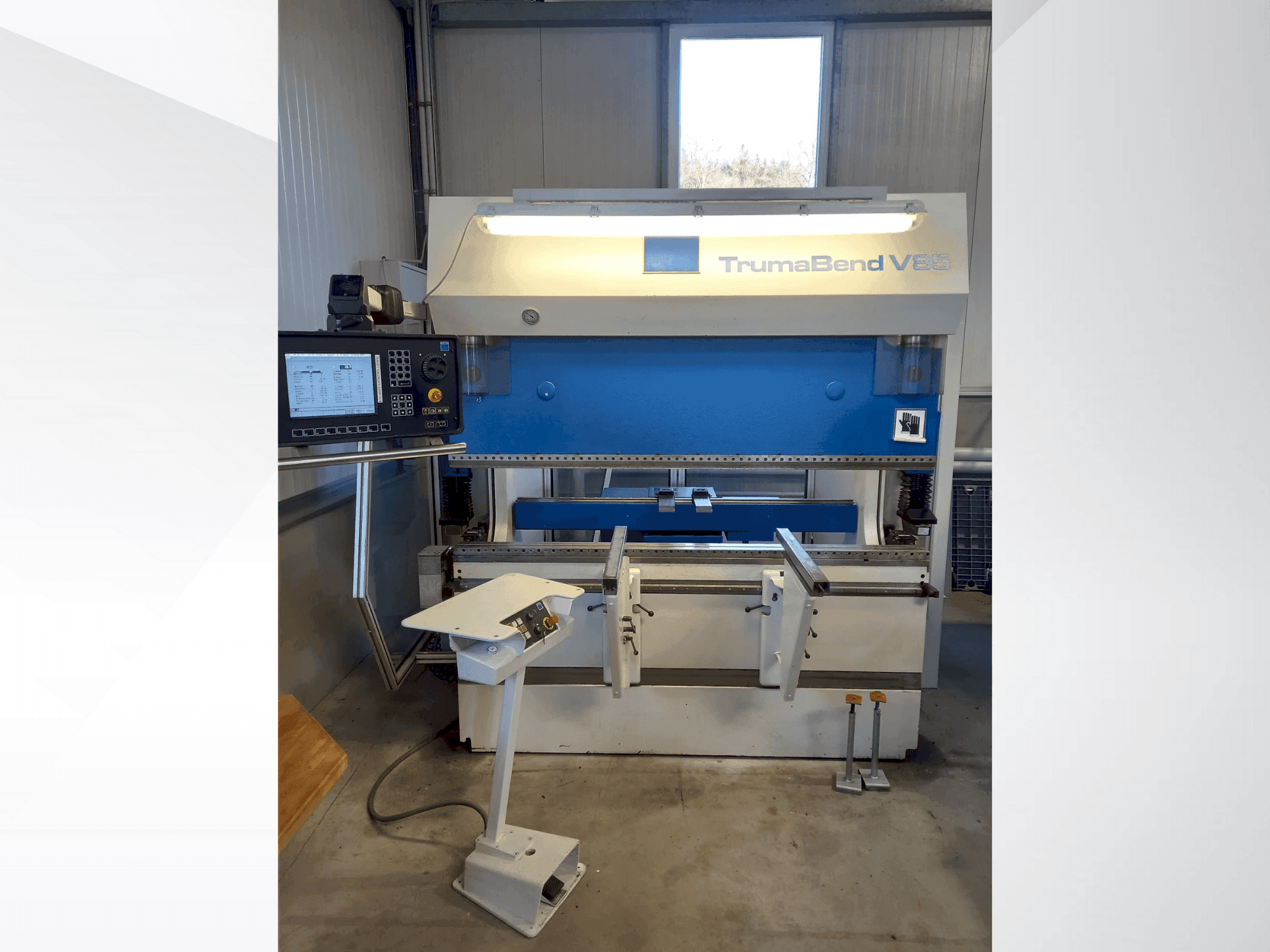

This 5-axis TRUMPF TrumaBend V85 press brake was manufactured in 2001. It features an electro-hydraulic ram drive, CNC backgauge system, and a modern protective cover. The machine includes a 4-axis back gauge system and both hydraulic upper and lower tool clamping. If you are looking to get high-quality bending capabilities, consider the TRUMPF TrumaBend V85 machine we have for sale. Contact us for more information about this machine.

Resumen

marca: TRUMPF
año: 2001
MODELO: TrumaBend V85
tipo de aplicación: Doblado
Ubicación: Austria
tipo de máquina: Plegadora

Información técnica - TRUMPF TrumaBend V85

Recorrido

Número de ejes: 5

Información adicional

Additional equipment

Top drive concept in two-cylinder design y1/y2
Electro-hydraulic ram drive with proportional valve technology
Ram travel measuring system with spring deflection compensation via glass scales
Modern block hydraulics
Cnc backgauge system
Safe finger adjustment from the front
Self-centring, manual, hardened upper tool holder for vertical tool change
Hardened, manual lower tool holder
Programme-controlled lower tool displacement (i-axis) for 2 positions
Modern protective cover

Machine Benefits

Technical Machine Benefits

Oil cooler
Working width 2. 000mm

Extra Information

Special Equipment: Back gauge system 4 axes (X, R, Z1, Z2) Hydraulic and hardened upper tool clamping (Wila system) Hydraulic lower tool clamping (Wila system) CNC crowning BendGuard safety device 2 pcs. Support brackets Network No tools included

*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
