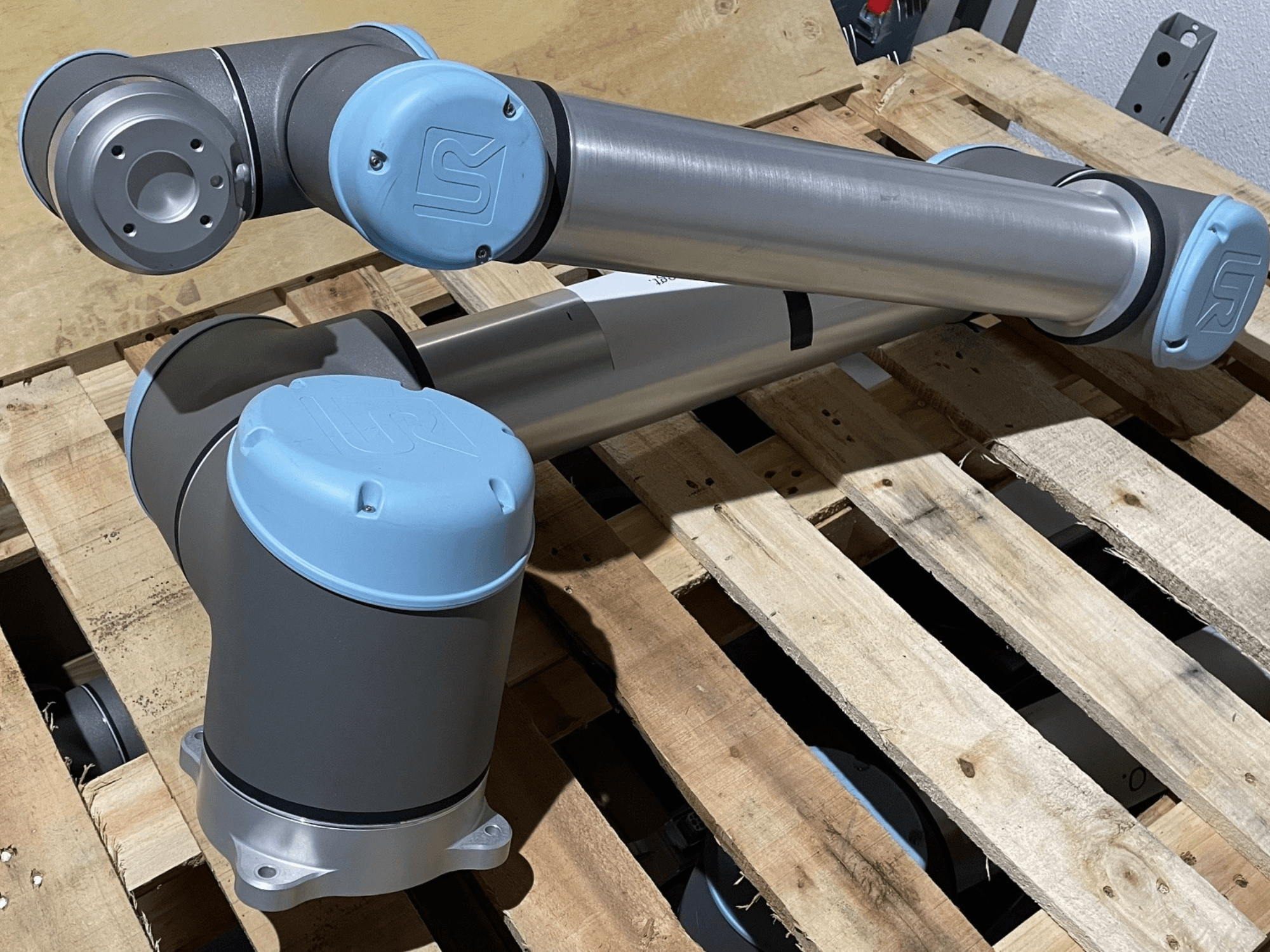

This 6-axis Universal Robots ur10 cb3.1 was manufactured in 2018, featuring a payload capacity of 10 kg and a reach of 1300 mm. It includes a control cabinet with dimensions 475x423x268 mm, supports TCP/IP communication, and operates with a power consumption of approximately 350 W. Ideal for tasks requiring precision and flexibility. Contact us for more information about this machine.
Resumen
- marca: Universal Robots
- año: 2018
- MODELO: ur10 cb3.1
- tipo de aplicación: Robótica
- Ubicación: Alemania
- tipo de máquina: Brazo robótico
Información técnica - Universal Robots ur10 cb3.1
Dimensiones
- Peso de la máquina: 28900 kg
Recorrido
- Número de ejes: 6
Información adicional
Payload: 10 kg
Reach/working radius: 1300 mm
Axes/joints: 6 swivel joints
Joint rotation: ±360° on all joints
Joint speeds: foot/shoulder 120°/s; elbow and wrist 1–3: 180°/s
Tool speed (TCP): approx. 1 m/s
Repeatability: ±0.1 mm
Footprint: Ø190 mm
Control cabinet dimensions (W x H x D): 475 x 423 x 268 mm
I/O connections: control cabinet and tool interface
Digital I/O: 16 DI, 6 DO
Analog I/O: 2 AI, 2 AO
I/O power supply: 24 V 2 A (control cabinet); 12 V/24 V 600 mA (tool interface)
Communication: TCP/IP 100 Mbit (IEEE 802.3u, 100BASE-TX), Ethernet port, Modbus TCP
Programming: PolyScope graphical UI on touchscreen
Noise level: low
Protection class: IP54
Collaborative safety: 15 advanced safety features
Standards: EN ISO 13849:2008 PL d; EN ISO 10218-1:2011, section 5.4.3
Materials: aluminum, PP plastic
Operating temperature: 0–50 °C ambient
Power supply: 100–240 VAC, 50–60 Hz
Power consumption: approx. 350 W
Cabling lengths: robot–control cabinet 6 m; touchscreen–control cabinet 4.5 m
Additional equipment
Control cabinet
12" touchscreen HMI with mounting bracket
Cabling set:
6 m cable between robot and control cabinet
4.5 m cable between touchscreen and control cabinet
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
