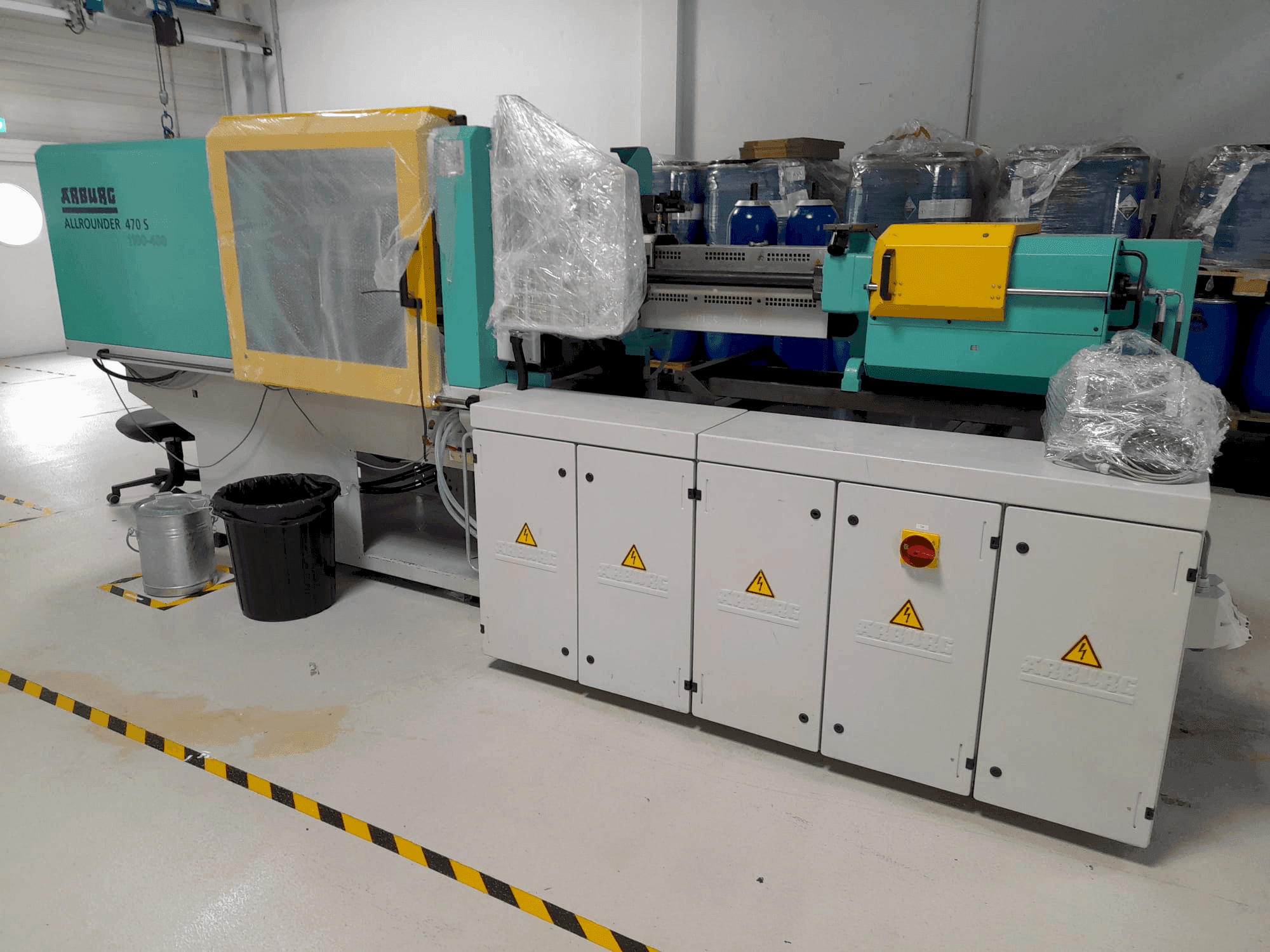

Arburg - Allrounder 470S 1100-400 with Multilift handlingDE-INJ-ARB-2010-00001

Machine Benefits

Qualitative Machine Benefits

• Multilift v select (cross-mounted on the machine, 3 cnc axes, freely programmable, axes can be moved simultaneously, drive via servo motors)
• Technology level 2 with two control pumps for controlled machine movements
• Protective housing bosch profile with wave grille, access door electrically protected
• 16 freely programmable inputs
• 16 freely programmable outputs
• Temperature in the control cabinet controlled by water cooling
• Special process extended guard locking
• 9 electrical heating control circuits for mold heating (hot runner) sensor type j

Technical Machine Benefits

• Locking device: 1100 kn // voltage: 400 v / 50 hz // motor / heating back-up fuse: 125 a // max. Injection volume: 154 ccm
• Position-controlled screw // pressure accumulator for high pressures / speed
• Plasticizing cylinder 35 mm highly wear and corrosion resistant, max. Processing temperature 450° b9ksppti8d // piezo charge amplifier for internal pressure measurement
• Programmable nozzle contact force // centering diameter nozzle side: 125 mm
• Ejector with quick-release coupling // ejector stroke max. : 175 mm mold height min. : 300 mm // maximum platen distance: 950 mm // column spacing: 470 x 470 mm
• Printer interface // temperature control unit interface 20ma max. 6 devices // allrounder at web interface // interface for coloring / dosing device // interface for mold monitoring through ejector plate safety device
• Machine cycles: 4,649,834 h // pump operating hours: 63,300 // operating hours car: 57,584
• Axis lengths, axis speed: z-axis (transverse to the longitudinal machine axis) 1400 mm ---- mm/s // x-axis (parallel to the longitudinal machine axis) 400 mm --- mm/s // z-axis (plunge axis) 600 mm ---- mm/s // c-axis pneumatic folding axis
• Deposit height: 1100 +/- 200 mm
• 4 x pneumatic valves 5/3 with locked center position for gripper functions - 4 x vacuum equipment incl. Vacuum switch for parts monitoring

Extra Information

Two blow-out devices with pressure reducer // Three freely programmable core pulls // Off-line filtering
