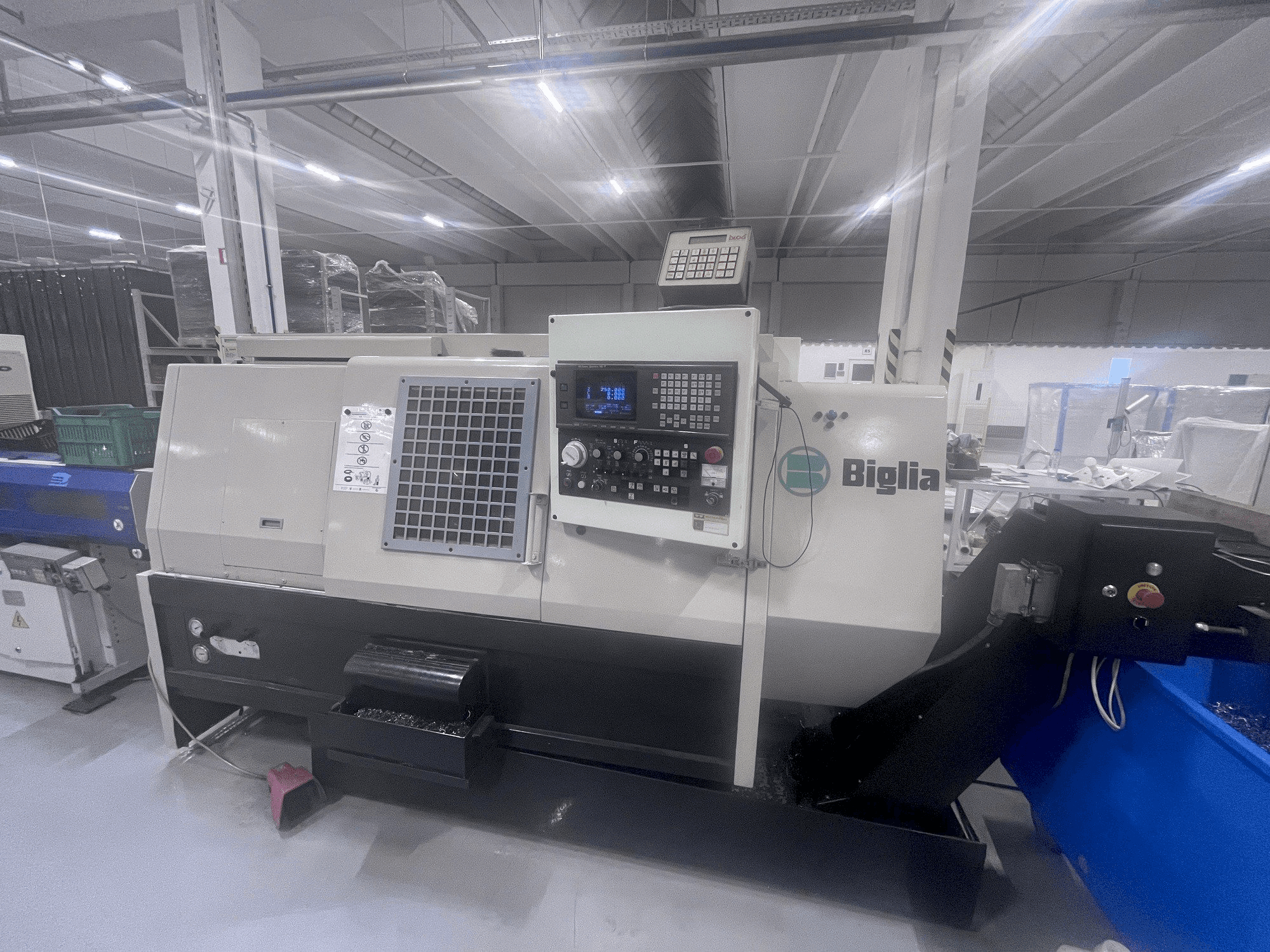

Biglia - B 501 MBBG-TUR-BIG-1997-00001
¿Tiene más preguntas? ¡Contáctenos!
José María García
+34 601 158 008
j.garcia@gindumac.com
- GINDUMAC
- Productos
- Máquinas herramienta
- Used Lathe machine BIGLIA B 501 MB - 1997 - for sale | gindumac.com
This BIGLIA B 501 MB (1997) Lathe machine was manufactured in 1997. This machine has a tank capacity of 200 liters and a pump flow rate of 100 liters per minute, driven by a pump motor with 0.5 kW power. Regarding its axis specifications, the x-axis has a travel distance of 210+5 mm and moves at a speed of 20 meters per minute, while the z-axis travels a distance of 500+10 mm at the same speed. Contact us anytime for further information.
Resumen
- marca: Biglia
- año: 1997
- MODELO: B 501 MB
- tipo de aplicación: Torneado
- Ubicación: Bulgaria
- tipo de máquina: Centro de torneado y fresado
Información técnica - Biglia B 501 MB
Dimensiones
- Profundidad de la máquina: 4000 mm
- Altura de la máquina: 1660 mm
- Peso de la máquina: 4700 kg
Recorrido
- Recorrido eje X: 210 mm
- Recorrido eje Z: 500 mm
Especificación Técnica
- Número de herramientas: 6
- Velocidad del husillo: 4000 RPM
Información adicional
Additional equipment
- The bar feeder is not included and not for sale.
Machine Benefits
Technical Machine Benefits
- Spindle nose: asa 6''
- Spindle hole: 80mm
- Maximum bar workable diameter: 54-68mm
- Maximum workable diameter for shooting: 250mm
- Maximum workable length: 500mm
- Maximum rotating diameter: 520mm
- Front bearing internal diameter: 110mm
- Self-centering diameter: 210-250mm
- Caliper group: din 6343
- Engine power: kw 11-15(50%)-22-26(50%)
Extra Information
- Turret type: bidirectional - External tool shank: 25 x 25 mm - Reamer tool shank: 32mm - Rotation time (1 position): 0.7sec - Powered tools: variable rotation range 50-3000rpm, engine power Kw 3.7(50%) - C axis controlled: type CS(direct), minimum programmable value 0.001°, fast speed 80rpm -Hydraulic tailstock: automatic quill travel 100mm, quill diameter 85mm, tip holder cone CM.4, automatic/manual positioning mm 510-440 - Tank capacity: 200l - Pump flow rate: 100 l/min - Pump motor power: 0.5Kw - Main spindle center height 1000mm
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
