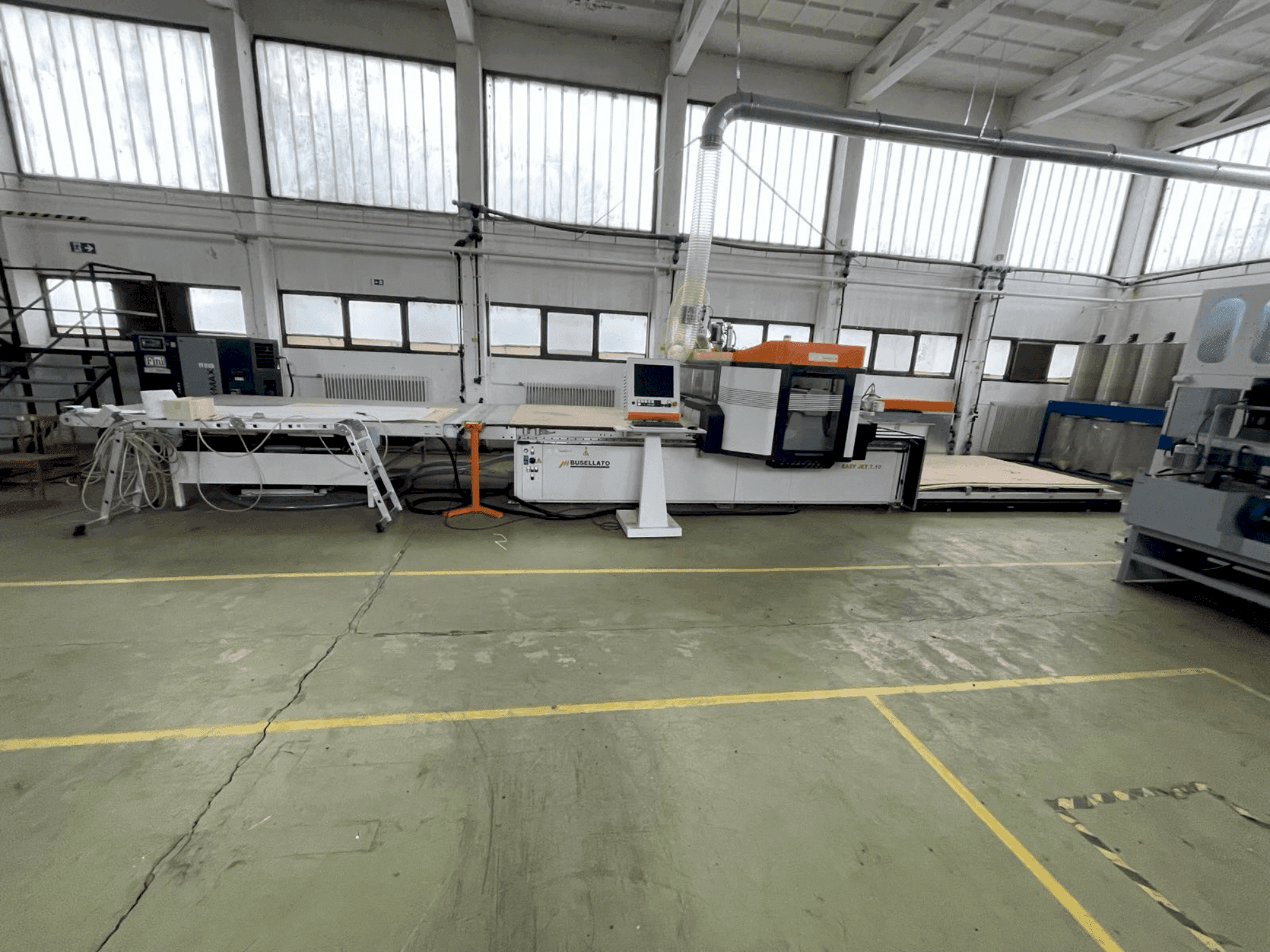

This 3-axis BUSELLATO Easy Jet 7.10 D AH/119579 was manufactured in 2016. A CNC Wood Machining Centre featuring a working area of 3200 mm by 1300 mm, it boasts a spindle power of 12 kW and speeds up to 24,000 RPM. Equipped with an automatic tool changer supporting 8-16 positions and a robust vacuum system for secure clamping. Ideal for precision woodworking, the BUSELLATO Easy Jet 7.10 D machine we have for sale. Contact us for further details regarding this CNC Wood Machining Centre.
Resumen
- marca: BUSELLATO
- año: 2016
- MODELO: Easy Jet 7.10 D AH/119579
- tipo de aplicación: Mecanizado CNC
- Ubicación: Hungría
- tipo de máquina: Centro de mecanizado CNC para madera
Información técnica - BUSELLATO Easy Jet 7.10 D AH/119579
Dimensiones
- Profundidad de la máquina: 5500 mm
- Altura de la máquina: 2500 mm
- Peso de la máquina: 6000 kg
Recorrido
- Recorrido eje X: 3200 mm
- Recorrido eje Y: 1300 mm
- Recorrido eje Z: 150 mm
Especificación Técnica
- Número de herramientas: 8
- Potencia del husillo: 12 kW
- Velocidad del husillo: 24000 RPM
Información adicional
Additional equipment
- Automatic Tool Changer (ATC)
- Drilling Head with vertical and horizontal spindles
- Integrated grooving saw
- Vacuum system with multiple zones
- Dust extraction ports
- Safety features such as light curtains, safety mats, or full enclosures
Machine Benefits
Qualitative Machine Benefits
- The machine has never been in production and is currently resting in a warehouse disassembled.
- The machine can be installed at the buyer's site, if necessary with a suction unit and compressor.
- Busellato easy jet 7. 10 d type, with dosing and drying system
Technical Machine Benefits
- High spindle speed up to 24000 rpm
- Powerful spindle motor of 12 kw (16 hp) or higher
- Fast axes speeds: x-axis up to 100 m/min, y-axis up to 60 m/min, z-axis up to 20 m/min
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
