EMCO - HYPERTURN 665 MC PLUSFR-TUR-EMC-2005-00001
¿Tiene más preguntas? ¡Contáctenos!
José María García
+34 601 158 008
j.garcia@gindumac.com
- GINDUMAC
- Productos
- Máquinas herramienta
- ➤ Used EMCO HYPERTURN 665 MC PLUS For sale | gindumac.com

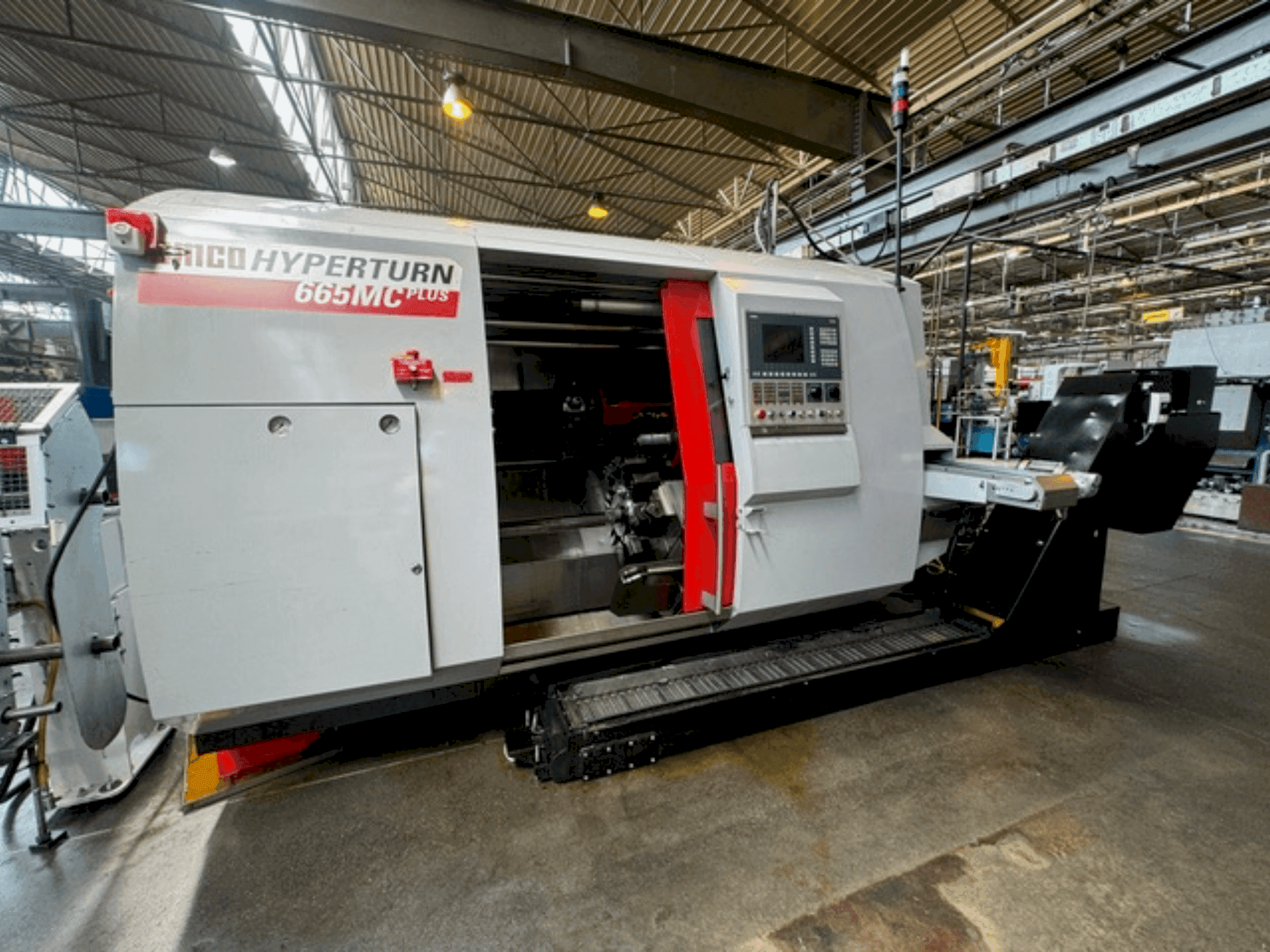

This 7-axis EMCO HYPERTURN 665 MC PLUS lathe was manufactured in 2005. It features twin spindles, twin turrets, and a maximum turning diameter of 600 mm. Equipped with a SIEMENS 840D CNC, it offers spindle speeds up to 5000 rpm and a bar passage diameter of 65 mm. Additional features include a LNS MOVE bar loading magazine, high-pressure coolant system, and air-conditioned control cabinet. For more information about this lathe, please reach out to us.
Resumen
- marca: EMCO
- año: 2005
- MODELO: HYPERTURN 665 MC PLUS
- horas de producción: 52581
- tipo de aplicación: Torneado
- Ubicación: Francia
- tipo de máquina: Centro de torneado y fresado
- Marca de unidad de control: SIEMENS
Información técnica - EMCO HYPERTURN 665 MC PLUS
Unidad de Control
- Marca del control: SIEMENS
- Modelo del control: 840D
Dimensiones
- Profundidad de la máquina: 2550 mm
- Altura de la máquina: 2300 mm
- Peso de la máquina: 8500 kg
Recorrido
- Recorrido eje X: 280 mm
- Recorrido eje Y: 100 mm
- Recorrido eje Z: 2 mm
Especificación Técnica
- Velocidad del husillo: 5000 RPM
- Refrigeración a través del husillo: Sí
Información adicional
Machine Benefits
Qualitative Machine Benefits
- High precision and repeatability, enhanced productivity.
- Very good condition
Technical Machine Benefits
- 300-liter high-pressure coolant system
- Twin-spindle and twin-turret configuration, advanced control unit.
- Maximum turning diameter: 600 mm
- Turning diameter over carriage: 500 mm
- Distance between the two spindles: 1,000 mm
- Maximum swing diameter: 430 mm
- Workpiece length: 744 mm
- Maximum workpiece envelope with tailstock: Ø200 x 200 mm
- Bar passage diameter: 65 mm
Extra Information
X/X2 axis travel: 280/205 mm Z/Z2/Z3 axis travel: 900/750/750 mm Y-axis travel: 100 mm (upper turret) +/- 50 mm Torque: 250 Nm Counter spindle speed: 0 - 7,000 rpm – Max torque: 130 Nm C-axis resolution: 0.001° C-axis rapid traverse: 100 rpm Lower/upper turrets: 2 x 12 stations, all motorized VDI30 Turret indexing time: 0.2 sec Motorized tool drive power: 6.7 kW Motorized tool rotation speed: 0-4,000 rpm Electrical power, connected load: 46 kVA CNC: SIEMENS 840D Ethernet port 3-color status lamp LNS MOVE bar feeder: bar length 700/2,100 mm – bar Ø 8/80 mm – 7-bar magazine 2 collet chucks 19 axial motorized tool holders 4 radial motorized tool holders 40 static axial and radial tool holders Upper parts catcher with conveyor belt High-pressure coolant system: 300 liters, 2 pumps of 2.2 kW Spindle oil cooler Air-conditioned cabinet Fire extinguisher Complete documentation Electrical power, connected load: 46 kVA Tool holders included, which comprise 19 axial motorized tools, 4 radial motorized tool holders, and 40 static axial/radial tool holders.
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
