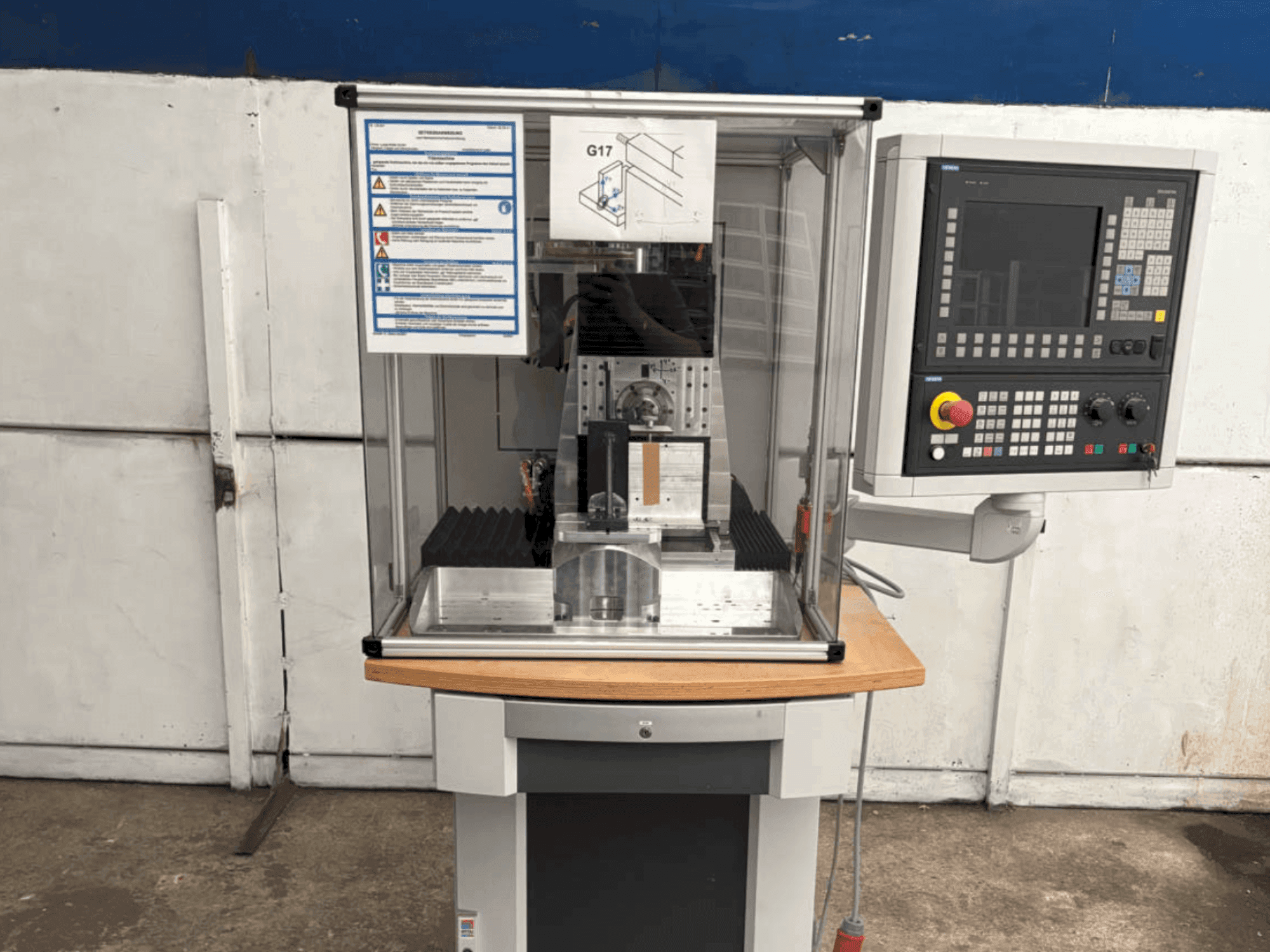

HELLER - PT 16DE-MIL-HEL-2016-00001

Machine Benefits

Technical Machine Benefits

• Speeds: up to 15 m/min
• Torque: 12. 75 nm
• Multifunction spindle: equipped with a compact servo motor
• Spindle inserts: er 16, hsk e25 (manual and automated)
• Basic machine: offers numerous expansion options for workpiece carriers
• Fixed table for 3-axis operation
• The machine is 3 axis, but the program can display five.
• Equipped with ball rail guides and ball screws for efficient movement

Extra Information

Each ProfiTrainer is designed for multifunctional use with the ability to adapt for various spindle requirements. Base plate; X/Z cross table, Y column; Horizontal spindle, manual tool change, Tool holder, ER16 collet Table, fixed rotation axis B Drives and CNC: Siemens 840D sl Mobile housing, drawer, protective cover Operating voltage: 400V X-axis: Travel range: From -100 to 100 mm Acceleration: 2 m/s² Speed ​​(rapid traverse): 15 m/min Jerk G0 rapid traverse (effective): 50 m/s³ Jerk G1 feed (effective): 50 m/s³ Y-axis: Travel range: From 25 to 225 mm Acceleration: 2 m/s² Speed ​​(rapid traverse): 15 m/min Jerk G0 rapid traverse (effective): 50 m/s³ Jerk G1 feed (effective): 50 m/s³ Z-axis: Travel range: From 105 to 305 mm Acceleration: 2 m/s² Speed ​​(rapid traverse): 15 m/min Jerk G0 rapid traverse (effective): 50 m/s³ Jerk G1 feed (effective): 50 m/s³
