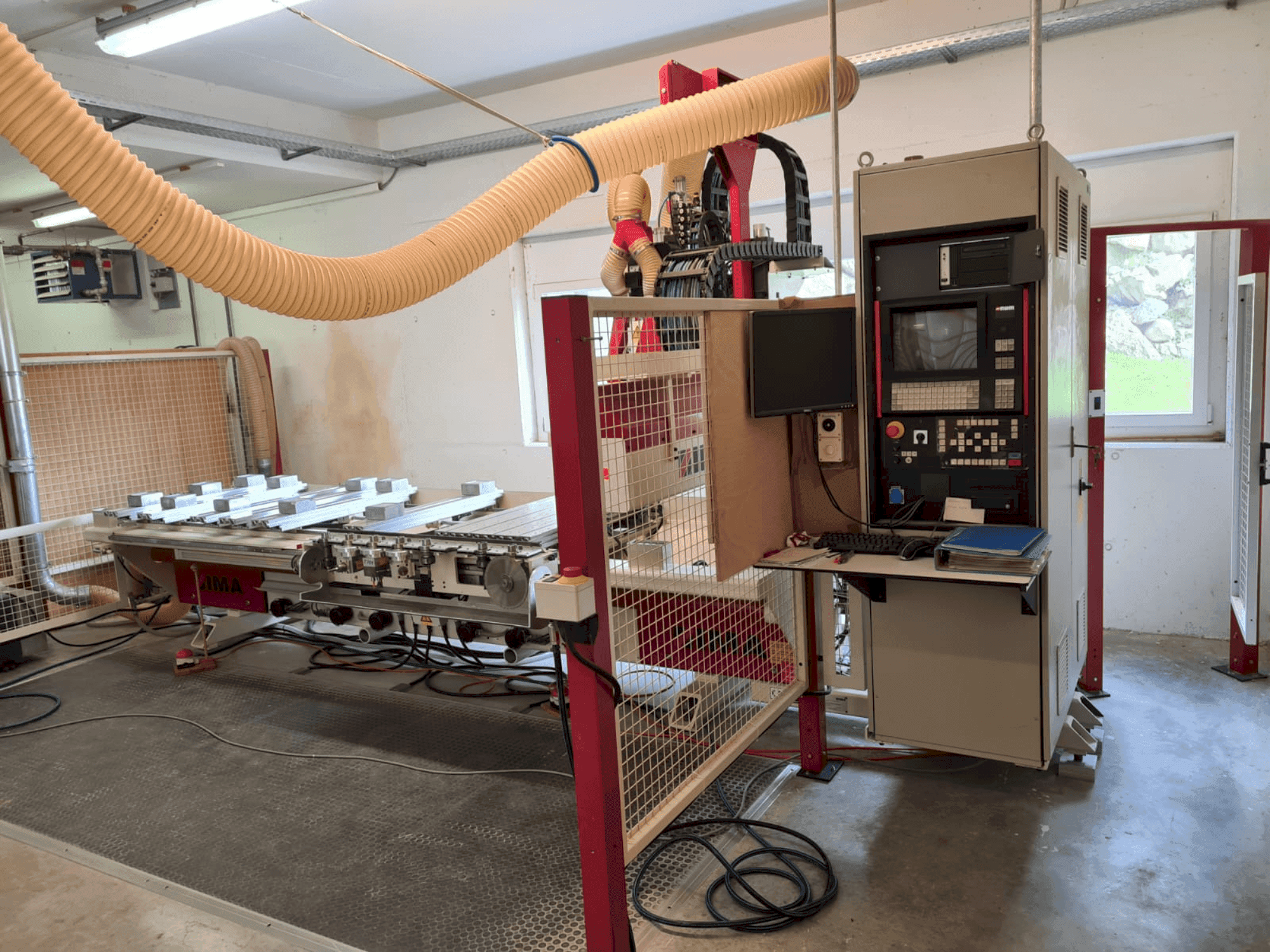

This 3-axis IMA BIMA 310 120/300 CNC Wood Machining Centre was manufactured in 1999. If you are looking to get high-quality woodworking capabilities, consider the IMA BIMA 310 120/300 machine we have for sale. Contact us for more information.
Resumen
- marca: IMA
- año: 1999
- MODELO: BIMA 310 120/300
- tipo de aplicación: Mecanizado CNC
- Ubicación: Suiza
- tipo de máquina: Centro de mecanizado CNC para madera
- Marca de unidad de control: SIEMENS
Información técnica - IMA BIMA 310 120/300
Unidad de Control
- Marca del control: SIEMENS
Dimensiones
- Peso de la máquina: 5000 kg
Recorrido
- Número de ejes: 3
- Recorrido eje X: 3000 mm
- Recorrido eje Y: 1000 mm
Especificación Técnica
- Potencia del husillo: 12 kW
- Velocidad del husillo: 9000 RPM
Información adicional
Additional equipment
- 1 vertical drilling unit in Y Direction
- 1 vertical drilling unit in X Direction
- 1 main spindle with programmable direction of rotation
- 1 centrally integrated CNC axis rotating 360 degrees
- 1 adapter unit saw, fixed at 90 degrees
- Saw blade diameter: 200 mm
- 1 adapter unit horizontal drilling and milling head (cross head)
- 1 adapter unit horizontal milling cutter (face milling)
- 2x adapter units for hinge drilling
- Includes 1 new Siemens vacuum pump + numerous accessories
Machine Benefits
Technical Machine Benefits
- Max. Clamping height from top edge of the suction plate: z1 100 mm
- Working height: 950 mm
- Path operation speed: 20 m/min
- Acceleration: 5 m/s²
- Changing field area without pendulum machining: x 2 x 1400 mm
- Free space in the middle: x 200 mm
- With pendulum machining: x 2 x 900 mm
- Free space in the middle: x 1200 mm
- Tool feed: automatic
- Feed force: 11000 n
Extra Information
Media Extraction standard: Connection for 200 mm, 120 mm, and 100 mm diameter Extraction speed: Approx. 28 m/sec Extraction volume: Approx. 3200 m³ per hour 1 vacuum pump 40 m³/h Compressed air: Central connection for 1/2" with maintenance unit. Air pressure 6 bar constant Electrical Equipment Electrical installation according to EN Control cabinet dimensions (HxWxD): 2000 mm / 1200 mm / 600 mm Safety and protection measures according to CE regulations
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
