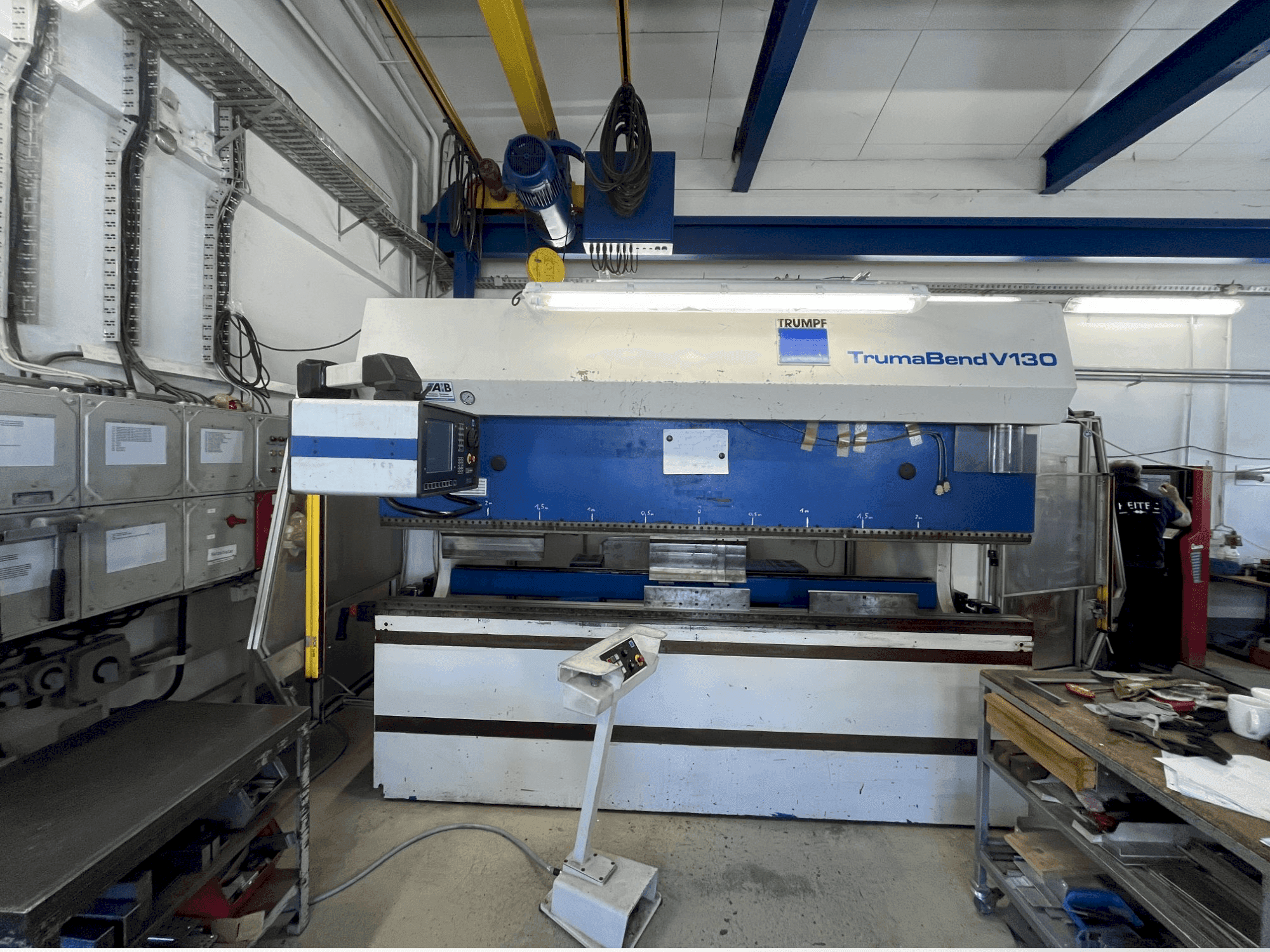

TRUMPF - TrumaBend V130DE-BEN-TRU-2000-00006

Additional equipment

• CNC electro-hydraulic press brake / CNC Control Model: DELEM CNC control model DA 65 / Swivel control panel, front left / 2D graphic programming & product display / Tool & program library / CNC Controlled Axes: Y1 + Y2 / X / R / Z1 + Z2 / I axis / CNC Controlled Backgauge (X axis) / CNC-Controlled Height Adjustment of the Backgauge (R axis) / CNC-Controlled Adjustment of the Fence Fingers (Z axis) / CNC-Controlled, Pneumatic Die Adjustment (I axis) / WILA Manual Table Crowning, incl. Analog Value Display / TRUMPF Hydraulic Upper Tool Clamping / TRUMPF Manual Lower Die Clamping / 1x Free-Moving 2-Hand / Foot Control / Rear Safety Device (Sliding Door)

Machine Benefits

Technical Machine Benefits

• Weight (kg): 11250 / dimensions of machine (lxwxh): 3640 x 2210 x 2375 mm
• Total power requirement: 16. 0 kva / voltage: 400 v
• Pressure: 130 t / folding length: 3060 mm / stand width: 2690 mm / stand projection: 410 mm / stroke: 215 mm / installation height: 385 mm / infeed speed: 200 mm/sec / working speed: 1-10 mm/sec / retraction speed: 135 mm/sec / tiltable: +/- 10 mm
• Table width: 120 mm / table height: 1050 mm
• Compressed air: 5. 0 - 7. 0 bar / oil capacity: 250 l / operating pressure: 340 bar
