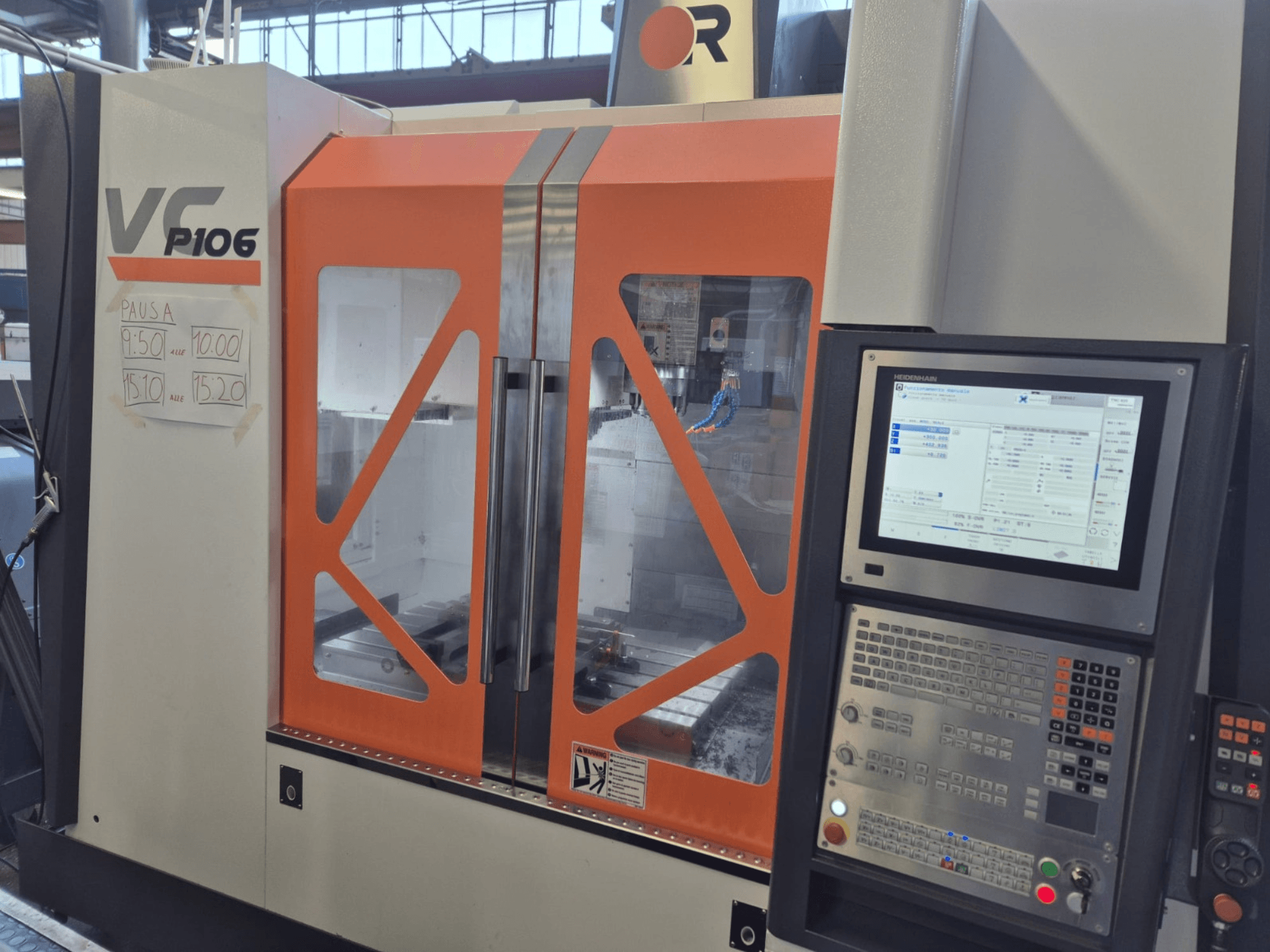

Victor - Vcenter P106IT-MIL-VIC-2023-00001

Additional information

• Travels: X-axis 1060 mm, Y-axis 600 mm, Z-axis 560 mm

• Rapid feed X/Y/Z: 32 / 48 m/min

• Axis servomotor power: 3 kW

• Ball screw diameter: 40–45 mm

• Ball screw pitch: 16 mm

• Guideway width: 45–35 mm

• Axis acceleration: 0.5–0.7 G

• Table

  • Size: 520 × 1120 mm

  • Max load: 600 kg

  • T-slots: 5 × 18 × 100 mm

• Max speed: 12000 rpm

• Spindle taper: BBT-40

• Motor power: 11–15 kW

• Tool Changer Capacity: 30 tools

• Max tool diameter (adjacent empty): 75 (150) mm

• Max tool length: 300 mm

• Max tool weight: 7 kg

• Tool-to-tool change time: 2.3 s.

• One-piece Meehanite cast iron base and column with oversized ribs for high rigidity

• Stabilized outdoors for at least 6 months to remove internal stresses

• Designed for efficient chip evacuation and easy operator access

• Structure developed with FEA (Finite Element Analysis) for optimal stiffness and vibration damping

• Linear guideways on base (X/Y axes) and column (Z axis)

• Dual screw conveyors for chip removal
