WINDOWS - LINE WEINIGDE-MIL-WIN-2007-00001

• Configuration: The system is currently interlinked and consists of a Weinig UC Matric and a Biesse WinLine One. Both machines can also operate independently.

• Main components:

  • Weinig UC Matric (2007)

    • Support table with 3 fields

    • Automatic infeed into planer

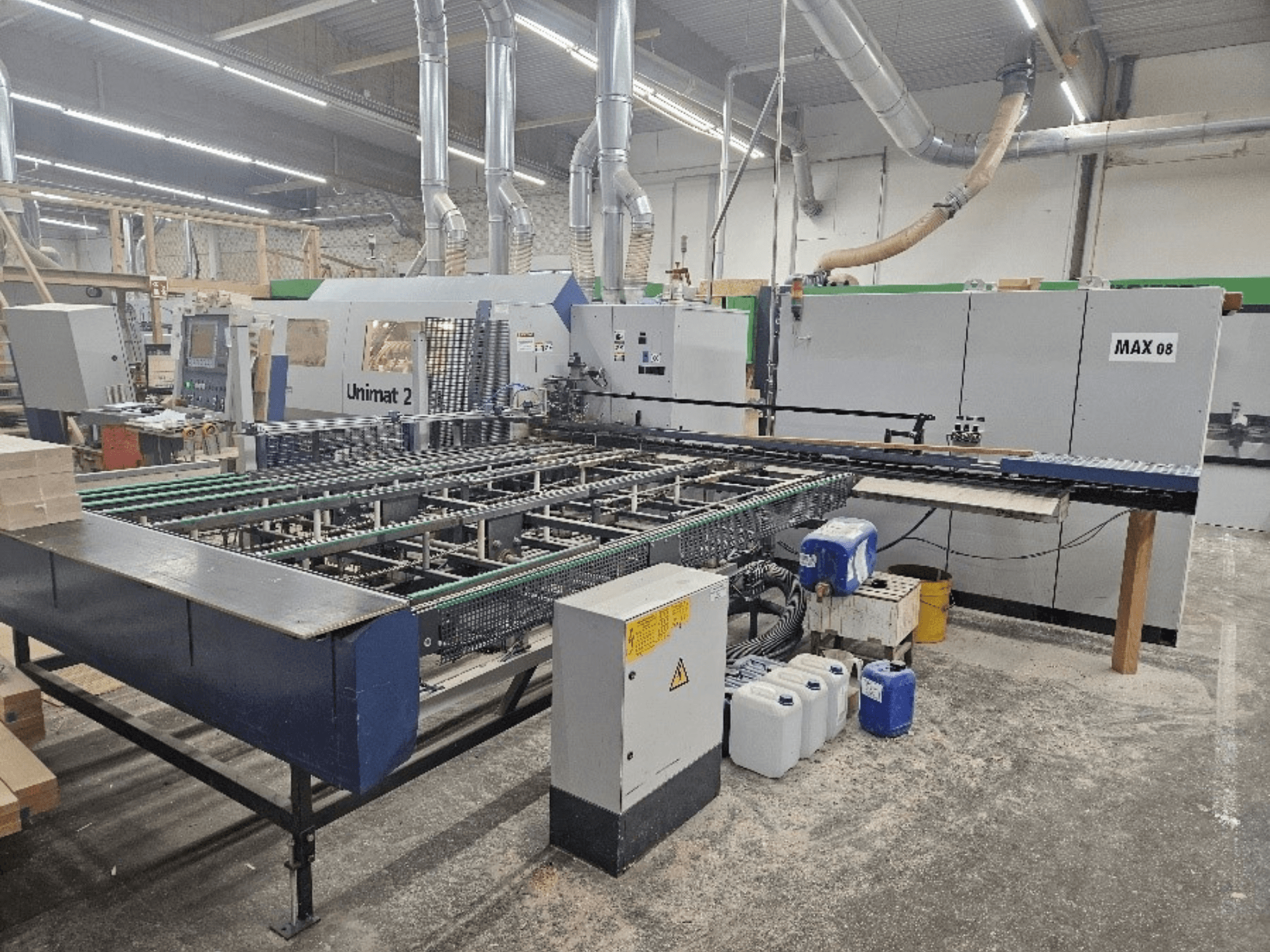

  • Weinig Unimat 23 EL (2007)

    • 2 bottom spindles

    • 2 top spindles

    • 1 right spindle

    • 1 left spindle

    • Glass strips separation

    • Glass strips profiling

    • Strips ejection and sorting (1 box with 3 compartments)

  • Sanding machine “Roto Finish” (2010)

  • Unirex (2007)

    • Cross-cut saw

    • Drilling unit

    • Trimming unit (lock case)

  • Unitec 15 (2007)

    • 3 slotting spindles

    • Counter movements possible

    • Max. slotting depth: 120 mm

  • Univar 12 (2007)

    • 7 spindles

  • Biesse WinLine One (part of interlinked system; details not specified)

  • Sanding machine for special components: Stähle Saturn (approx. 1993)

    • Note: Grinding only for surfaces; accuracy no longer guaranteed

Additional equipment

• By-pass for Biesse loading

• Workpiece turner

• Outfeed conveyors with labeling:

  • Top: Biesse (2015), with label printer

  • Bottom: Weinig (2007, extended in 2015), with label printer

  • Part length capacity: 4,500 mm each
