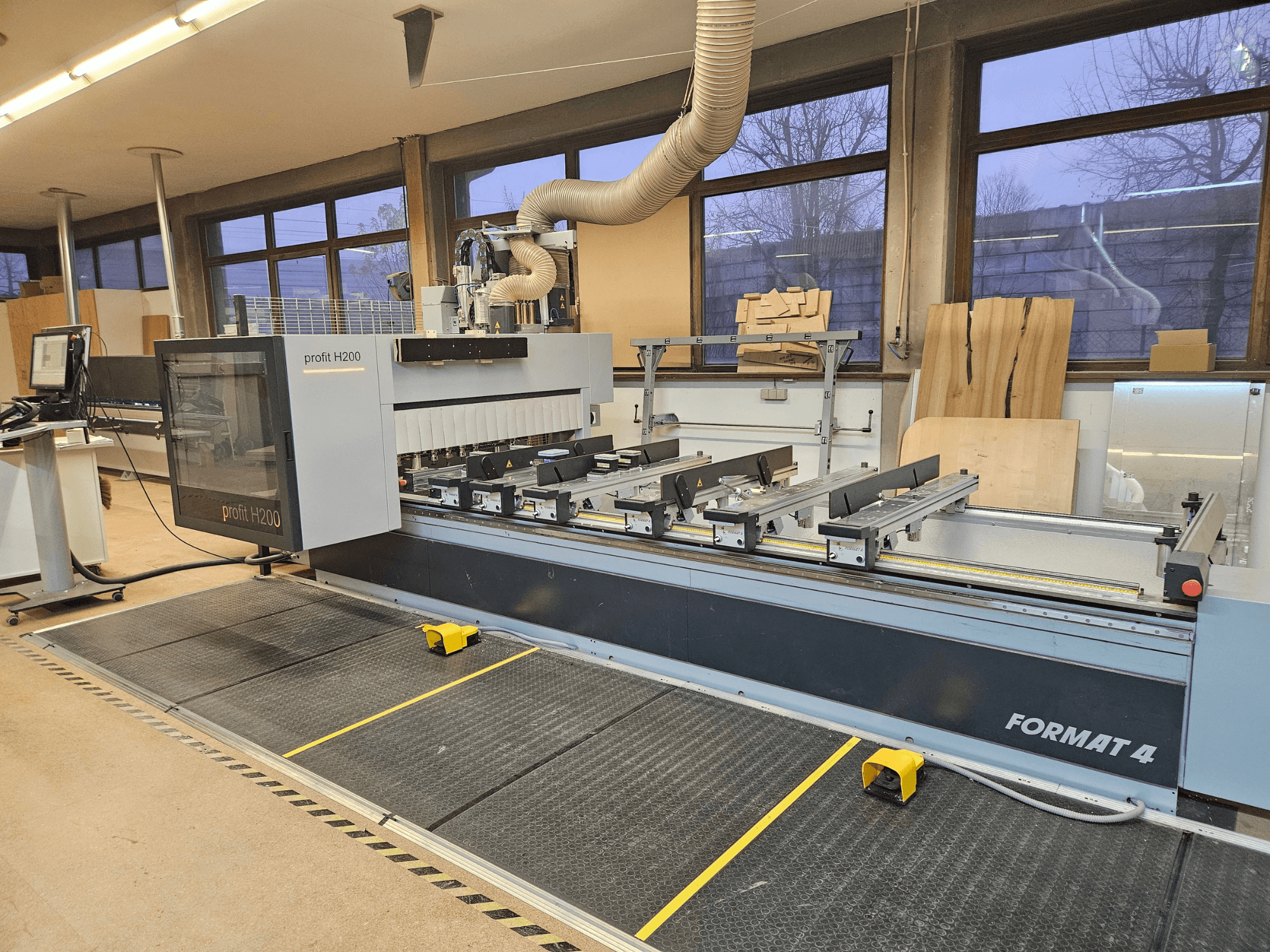

FELDER - FORMAT 4 PROFIT H 200DE-CNC-FEL-2020-00001

Automatic central lubrication

Working area: X 3300 mm / Y 1280 mm / Z 250 mm (clearance height from console level depends on clamping system)

Operating terminal on left side of machine

Hand terminal with axis speed control and emergency stop

Software: Woodflash (CNC board, tool database, program editor)

Positioning display for workpiece support and vacuum suction cups

Vacuum connection for template milling (left side), connection diameter 12 mm

Vacuum pump: 1x, total suction power 90 m³/h @ 50 Hz or 108 m³/h @ 60 Hz

Milling spindle: 12 kW (S6), HSK F63, 1000–24,000 rpm, full rated power at ~12,000 rpm, air-cooled; C-axis 0–360°

Tool changer: 12-station linear on left side of machine stand, incl. pickup space for aggregates; max tool diameter 250 mm; max tool length 240 mm

Drill head DH 16 4H 2S: 12 vertical spindles (7X / 5Y); 4 horizontal spindles (2X / 2Y); pre-stroke 70 mm; drilling length 70 mm; shank Ø 10 mm

Groove saws: 2 (one X, one Y); max blade Ø 120 mm; max thickness 5 mm; continuously variable speed up to 7,500 rpm

Safety: front light barrier system
