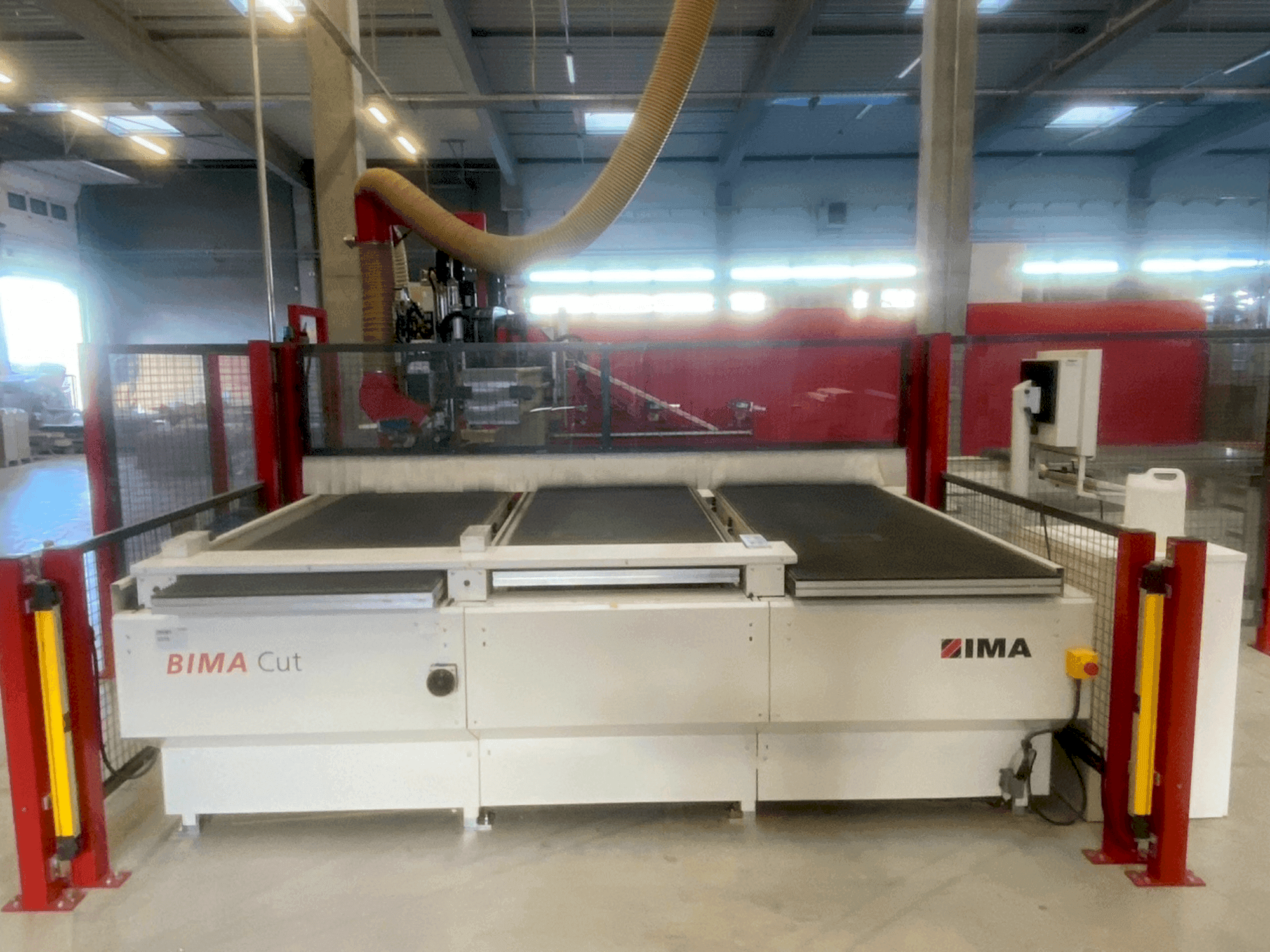

IMA - BIMA CUT 145/330PL-CNC-IMA-2014-00001

Machine Benefits

Technical Machine Benefits

• Working range in x axis: 3300 mm

• Working range in y axis: 1450 mm

• Vacuum clamping system for workpiece fixation

• Tool magazine with automatic tool change up to 18 positions

• Drilling capability: 5 sides – top, X+, X–, Y+, Y–

• Saw unit: for cutting and grooving in X and Y axes

Extra Information

Saw blade overhang: 145 mm Saw cutting length: around 330 mm

HBO horizontal milling unit: for X+, X–, Y+, Y– directions (not confirmed if still installed)

Automatic positioning beams and suction cups for workpiece clamping

Automatic loading table

Conveyor outfeed table

Vacuum traverse system for transferring parts onto the conveyor outfeed table

Panel nesting function: allows cutting from large boards with simultaneous machining operations

Each part is cut from the panel, then milling, drilling, and grooving are completed automatically before transfer to the outfeed table

Automatic lubrication system

Waste conveyor belt for chip and scrap removal

Disc-type tool magazine
