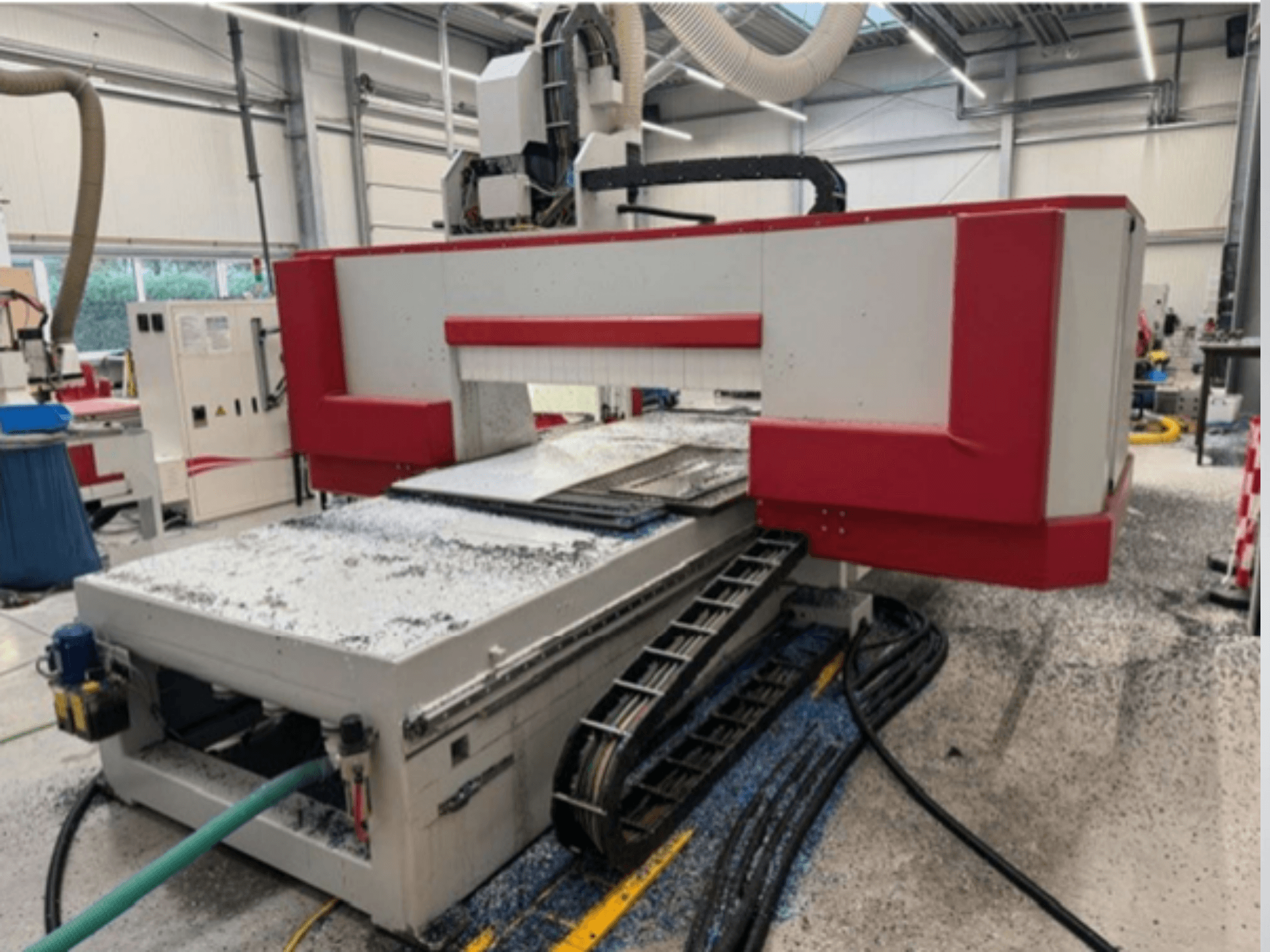

COSMEC - Conquest 515 5-AXIX-500DE-CNC-COS-2020-00001

Max. travel speed X-axis: 60 m/min

Max. travel speed Y-axis: 60 m/min

Max. travel speed Z-axis: 24 m/min

Vector speed: 80 m/min

5-axis fork head Z 700:

Maximum rotation speed: 750°/2 sec

C-axis rotation: +/- 360°

Swivel axis: +/- 110°

Machining area: 4210 x 1605 mm (enlarged working area)

Max. workpiece height: 500 mm

Comec Designed work table: Phenolic resin table, grid size 50 x 50 mm, divided into two working areas

18 kW main spindle, liquid cooling, HSK 63 F tool holder

Spindle speed: 500 - 24000 rpm

2

• x Tool Changers:

• Integrated 12-station tool changer for HSK 63 F tool interface

• Max. tool diameter 150 mm if adjacent station is free

• Max. tool diameter 120 mm if adjacent station is occupied

• Max. tool weight: 6 kg

• Max. weight of tool and holder: 40 kg

• Tool Length Measurement: Station for automatic length measurement of the tool

Compressed Air Supply: 7 bar

Extraction Capacity: Min. 2200 m³/h

Extraction Speed: Min. 28 m/s

Suction Connection: Ø 160 mm

Latest Version of Software: 5-axis simultaneous machining software through maintenance contract

Vacuum System: Vacuum system for pendulum machining with constant suction power in both working areas

Vacuum Pump: 250/300 m³/h (50/60 Hz), power: 5.5 kW

Dust-Protected Control Cabinet: Includes air conditioning unit, mobile control panel

The technical data and descriptions are for informational purposes only and not binding.
