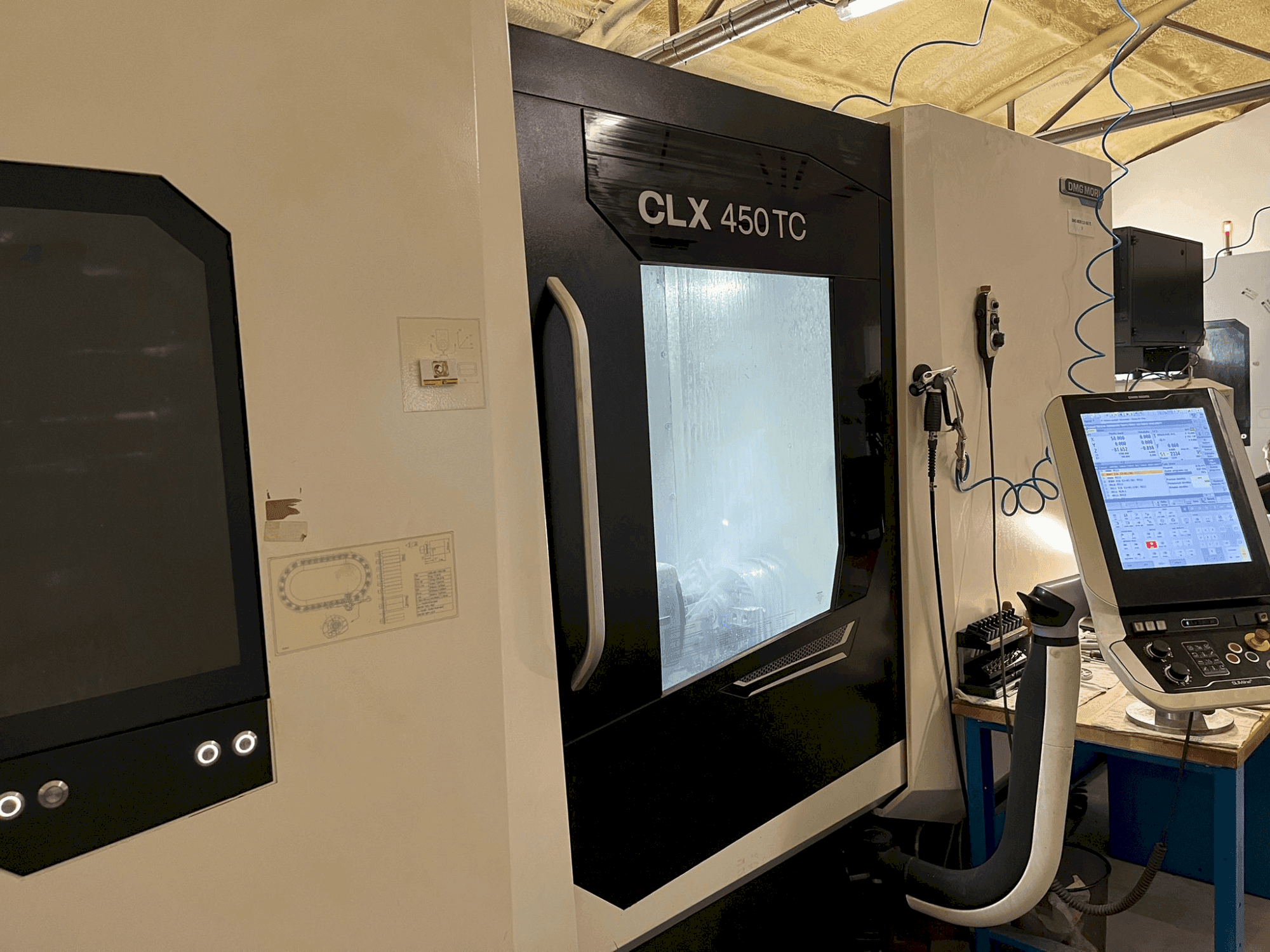

DMG MORI - CLX 450 TCSK-TUR-DMG-2022-00001

Machine Benefits

Technical Machine Benefits

• Max. Workpiece length: 1100 mm
• Max. Bar capacity diameter: 65 mm

Extra Information

Through-hole clamping device Ø67 mm Turning-milling spindle compactMASTER, drive power 8.8/10.5 kW (S1-100% load / S3-40% load-2min), torque 73/90 Nm (S1-100% load / S3-40% load -2 min), spindle speed 0-12,000 rpm, clamping HSK-A 63 DIN 69893 -B-axis ±120° / Y-axis ±100 mm 30-position chain magazine - absolute direct measuring systems in X- and Y-axis - hydraulically operated tailstock with foot pedal DMG MORI IoT connector Ergonomic control panel DMG MORI SLIMline - Siemens 840D sl Compact cooling emulsion system, includes: - cooling emulsion tank, 980 l - 8 bar/20 l/min (CTX beta 2000 TC, CTX gamma TC 2nd: 8 bar/80 l/min) and 20 bar/25 l/min (theoretical pump output) Programmable via M-functions cooling emulsion supply via lathe/milling spindle - belt filter unit, filtration grade 40 µm - emulsion cooling, 4.5 kW - pump with level control Mechanical oil mist separator, 1100 m³/h, filtration grade H13 Tool breakage monitoring Easy Tool Monitor 2.0 Touch probe for measuring parts RMP40, Renishaw Tool measuring device RP1, Renishaw Measuring system for Z1-axis CNC control with Siemens 840D sl Operate including 19" SLIMline® control with multi-touch-monitor Tailstock function for counter spindle including pedal. Automatic door, electric B-H7050 1 Electrical interface Profibus standard for Robo2Go
