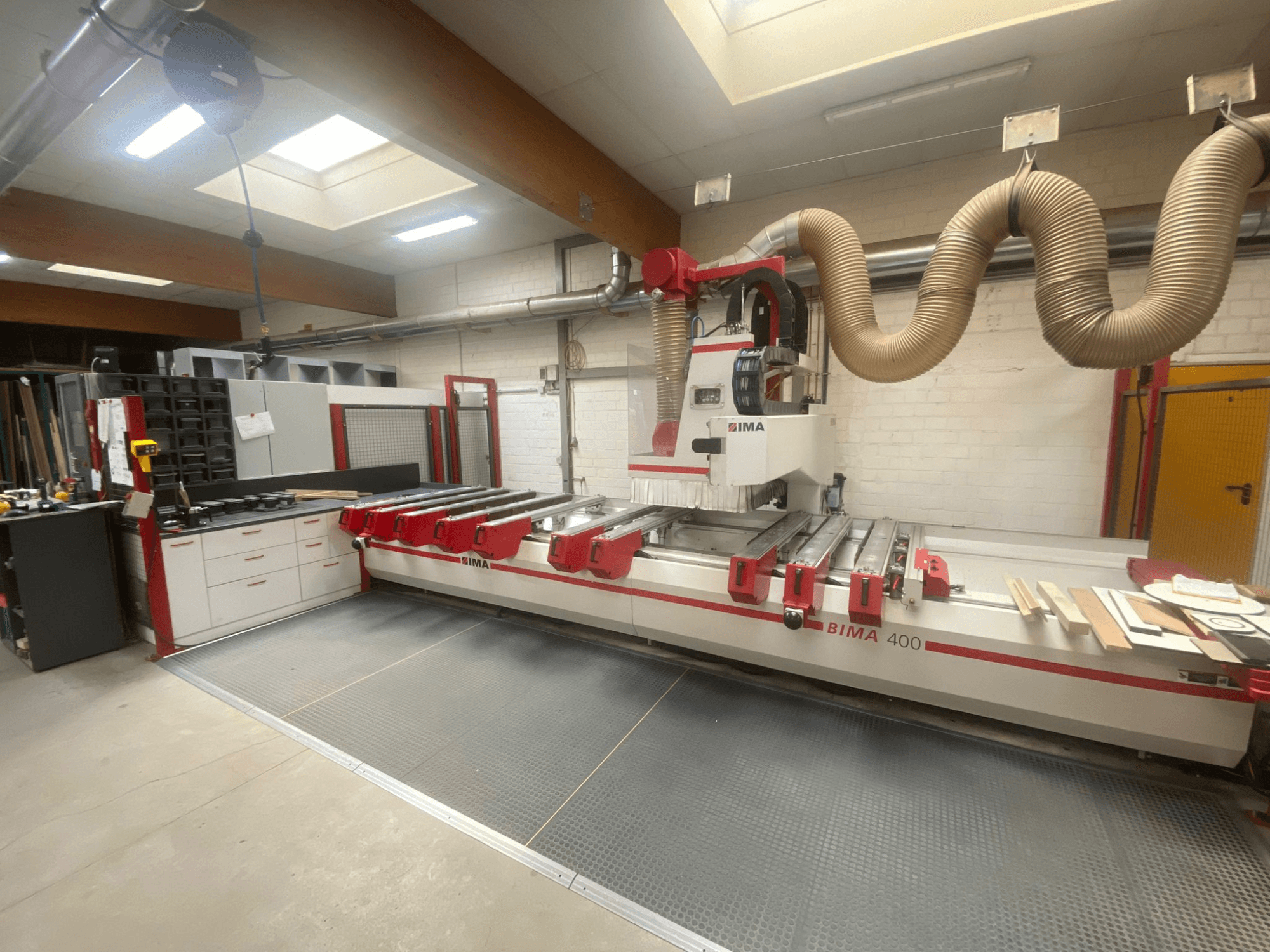

IMA - BIMA 400 140 / 430DE-CNC-IMA-2008-00003

• NC rotary axis: 360° for NC Vario unit

• Tool/adapter change magazine: 18-position carousel

• Drilling unit: 14 vertical, individually controllable drilling spindles

• 5-axis adapter: Sawing/milling/drilling unit Vario NC

• Control: ICOS open 231 with network connection

Additional equipment

• 1 additional vacuum pump, 140 m³/h

• Chip conveyor belt (BIMA)

• 2 additional support arms

• 8 smooth support rails

• 2 mushroom sensors for clamping/releasing the workpiece

• 6 additional front stops

• LED setup aids:

  • 1 for 8 support arms (X = 3300 mm)

  • 1 additional for Y = 1400 mm (for 2 additional support arms)

  • 1 additional for table extension X by 1 meter

• Safety fence, right side of BIMA

• Handheld scanner incl. interface

• IMAWOP on PC for BIMA 400

• Automatic vacuum cup programming on PC

• Air-conditioning unit for the control cabinet (2x)

• Basic teleservice system
