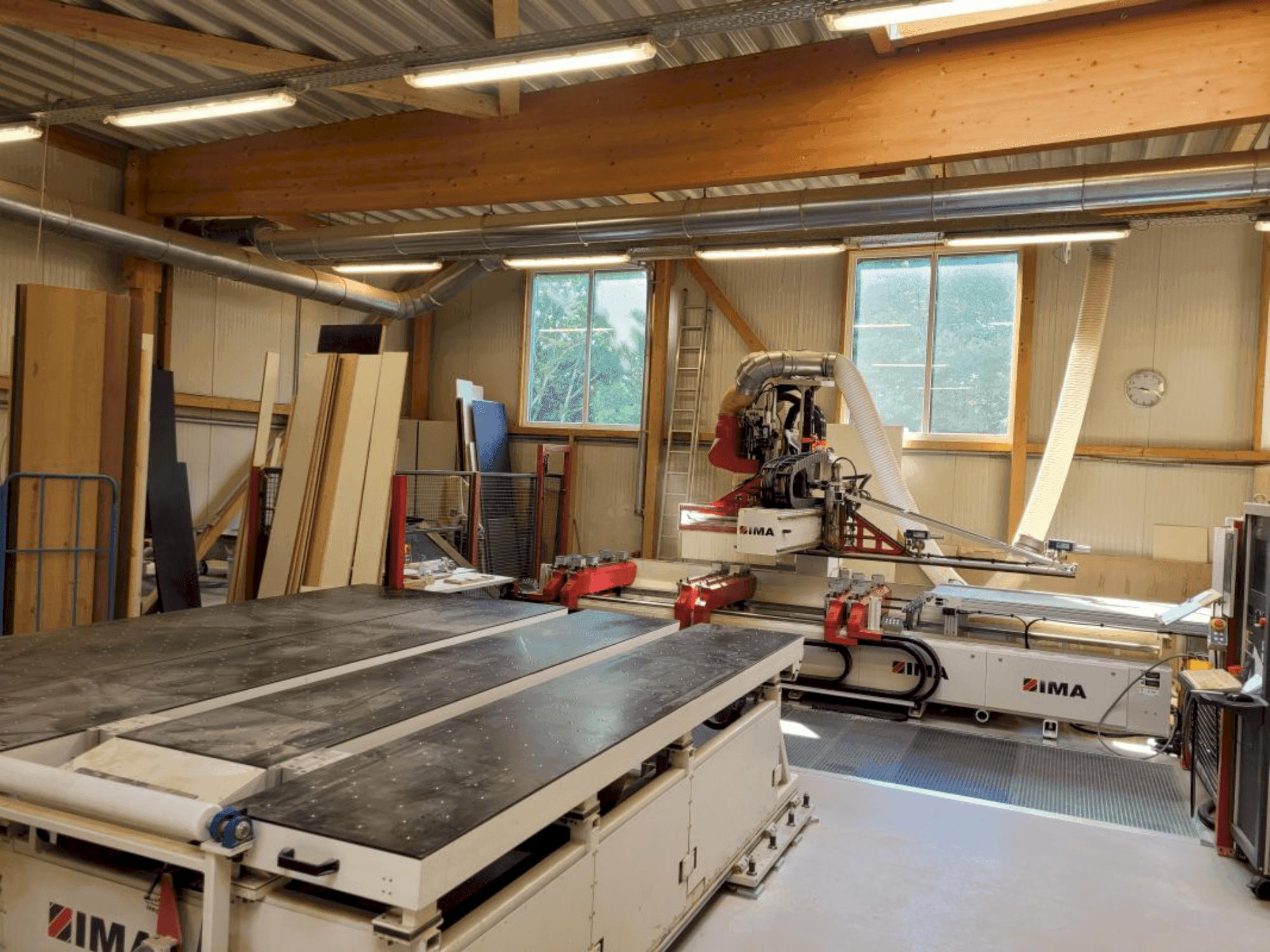

IMA - BIMA CUT 120/300DE-CNC-IMA-2008-00002

Additional equipment

• Automatic central lubrication
• Volautomatic set-up table
• Safety tread mats
• IMAWOP 6.0
• Suction traverse at delivery for automatic discharge transport
• Driven conveyor belt for discharge transport

Machine Benefits

Technical Machine Benefits

• 6 continuously adjustable support arms in x-direction with one front stop each
• 18 vacuum cups: 100 mm x 100 mm x 50 mm
• Automatic slide-in table dimensions: x = 2800 mm, y = 2800 mm, z = 34 mm
• 4-axis milling spindle: 7. 5 kw, 8000-24000 rpm, automatic 18-fold rotation changer
• 3-axis milling spindle: 4 kw, 7500-12000 rpm, manual tool changer
• Drilling unit with 21 individually controllable vertical spindles
• Adapter unit saw: 90 degrees fixed // adapter unit: horizontal drilling and milling head (cross head)
• Vacuum pump: 100 m³/h
• Extraction connection: d = 250 mm, single extractions with automatic slide controls
• Compressed air: 7 bar constant

Extra Information

Workpiece Workpiece thickness: 14-38 mm Max clamping height from the upper edge of the suction plate: 100 mm Working height: approx. 1000 mm Working range without pendulum machining: 2 x 1400 mm Working range with pendulum machining: 2 x 900 mm Free space in the center: 200 mm Min part dimensions in automatic mode: Length = 295 mm, Width = 115 mm Max part dimensions in automatic mode: Length = 3000 mm, Width = 1200 mm
